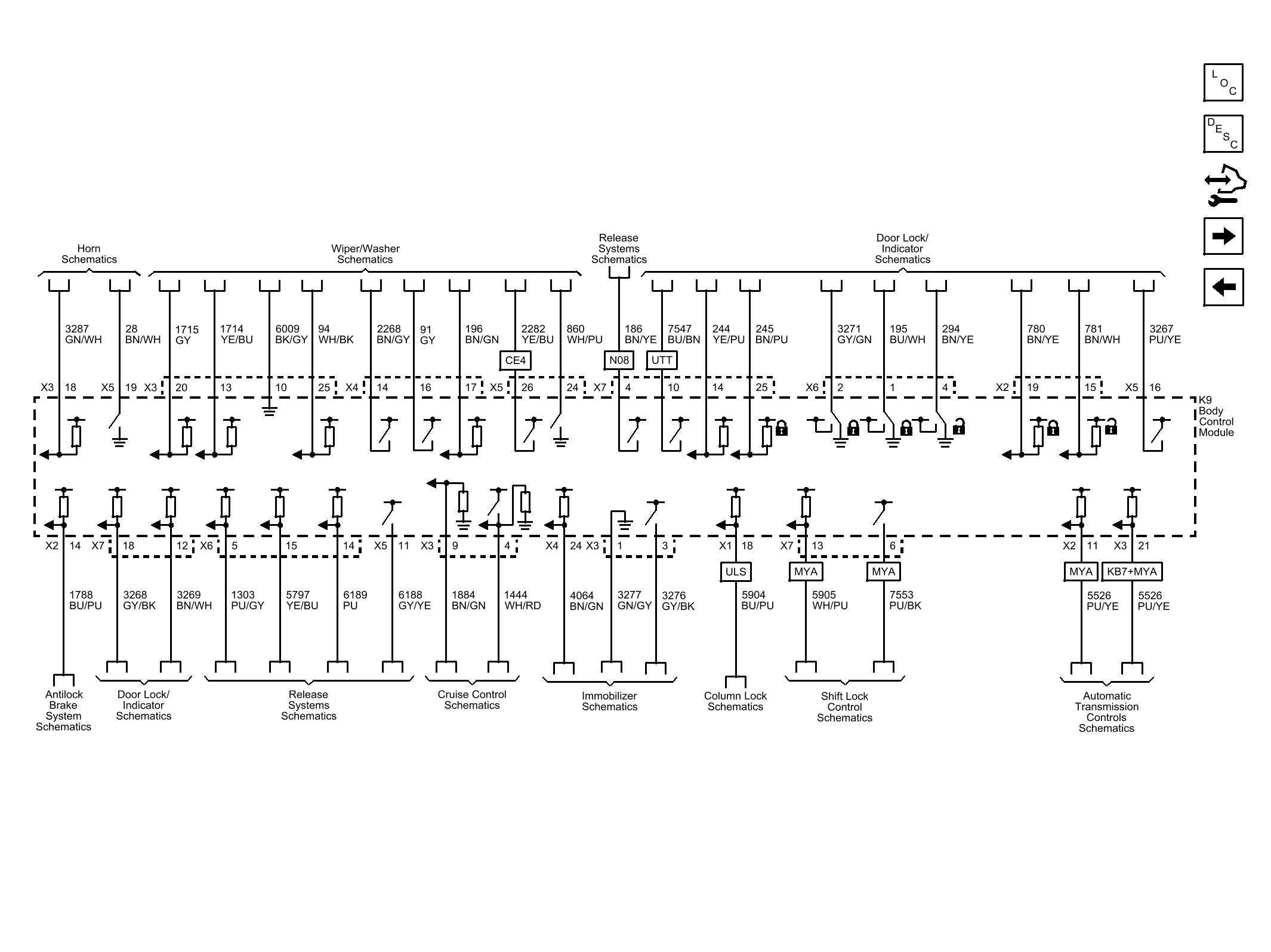

Home >> Cadillac >> 2013 >> ATS 2.0L Eng VIN X, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> System Reference (1 of 3)
