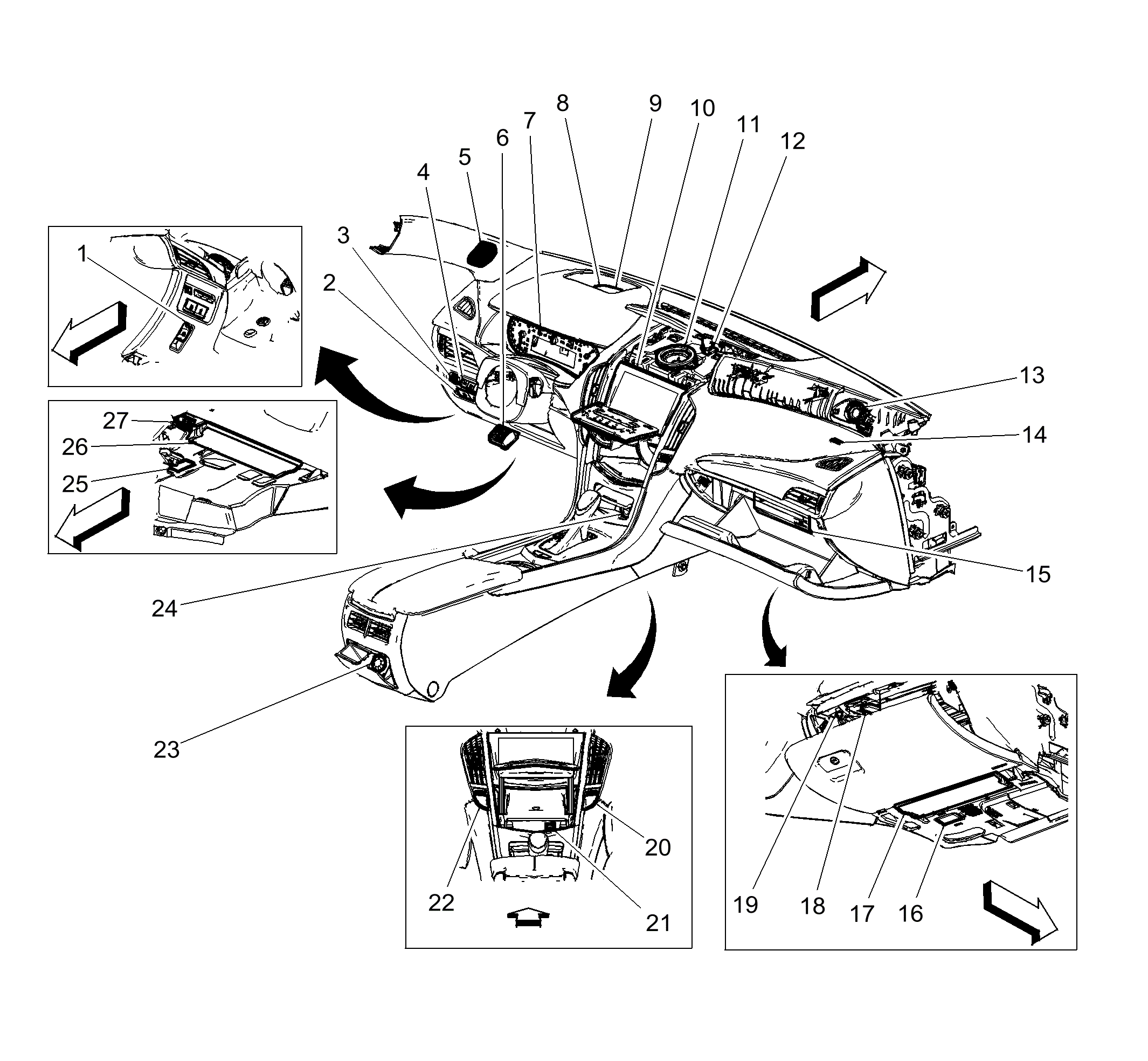

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1: B80 Park Brake Switch (without J77) B80 Park Brake Switch (without J77) |
| 2: S42 Headlamp Leveling Switch (TR6) S42 Headlamp Leveling Switch (TR6) |
| 3: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 4: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6) |
| 5: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 6: B80 Park Brake Switch (without J77) B80 Park Brake Switch (without J77) |
| 7: P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X2 (UV6) |
| 8: P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6) |
| 9: A26 HVAC Controls A26 HVAC Controls |
| 10: P19B Speaker - Center Instrument Panel (UQS) P19B Speaker - Center Instrument Panel (UQS) |
| 11: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 12: A26 HVAC Controls A26 HVAC Controls |
| 13: P19B Speaker - Center Instrument Panel (UQS) P19B Speaker - Center Instrument Panel (UQS) |
| 14: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 15: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 16: A38 Reductant Pump and Sensor Assembly |
| 17: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 18: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger |
| 19: E8R Door Sill Plate Lamp - Right Rear |
| 20: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger |
| 21: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch |
| 22: X92 USB Receptacle (UA3) X92 USB Receptacle (UA3) |
| 23: X80B Accessory Power Receptacle - Center Console 2 |
| 24: X92 USB Receptacle (UA3) X92 USB Receptacle (UA3) |
| 25: E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left |
| 26: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
| 27: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
