Transfer Case Components (MXE)

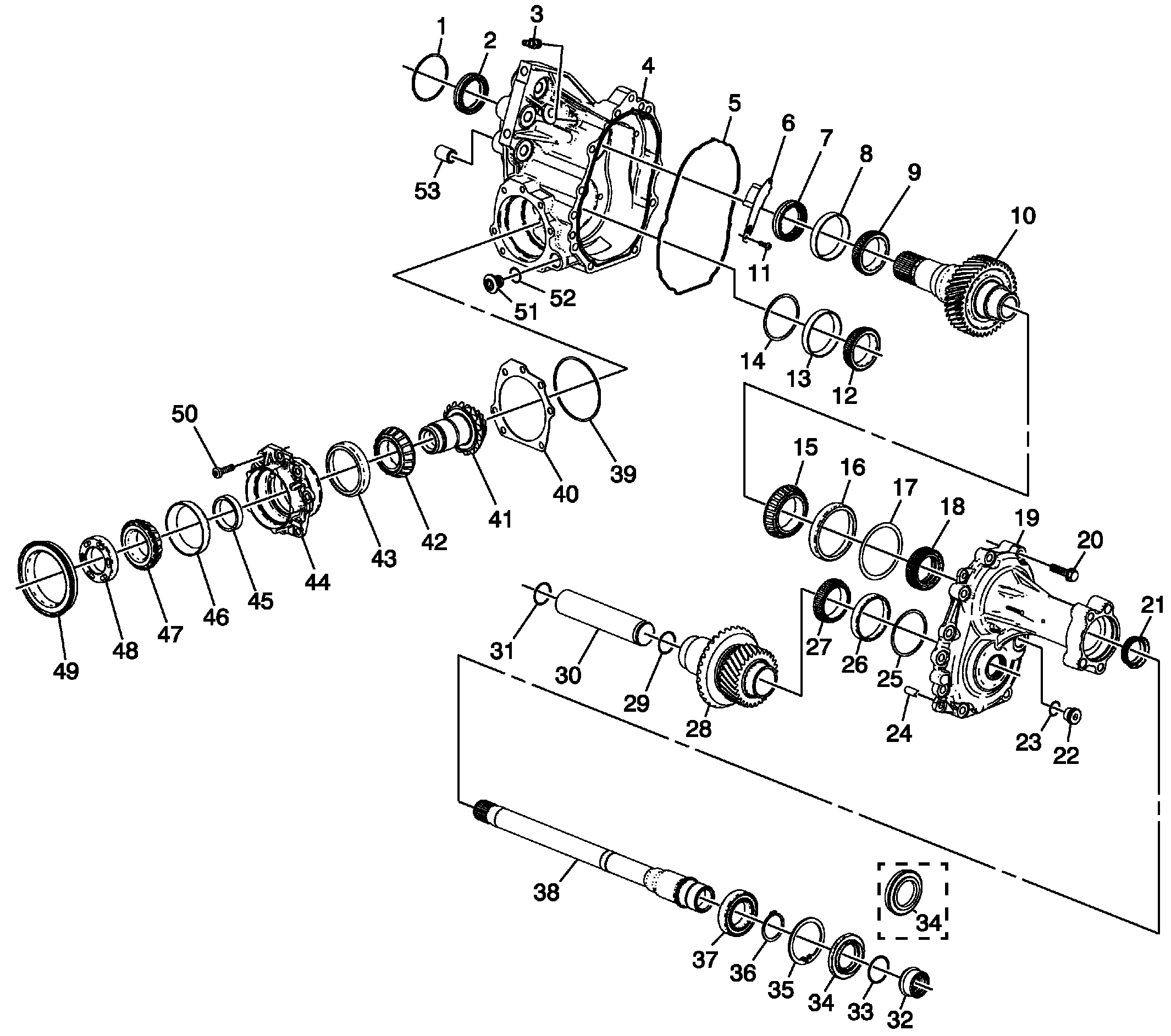

Fig 1: Transfer Case Components (MXE)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission-to-Transfer Case O-ring Seal
2	Input Shaft Front (outer) Seal
3	Transfer Case Vent Hose Connector
4	Transfer Case Housing
5	Transfer Case Rear Extension Housing-to-Transfer Case Seal
6	Transfer Case Vent Baffle
7	Input Shaft Front (inner) Seal
8	Input Shaft Front Bearing Race
9	Input Shaft Front Bearing
10	Input Shaft
11	Transfer Case Vent Baffle Bolt
12	Idler Shaft Front Bearing
13	Idler Shaft Front Bearing Race
14	Idler Shaft Front Bearing Shim
15	Input Shaft Rear Bearing
16	Input Shaft Rear Bearing Race
17	Input Shaft Rear Bearing Shim
18	Input Shaft Bearing Retainer Rear Seal
19	Rear Extension Housing
20	Transfer Case-to-Rear Extension Housing Bolt
21	Intermediate Shaft Seal
22	Transfer Case Fill Plug
23	Transfer Case Fill Plug Sealing Washer
24	Transfer Case-to-Rear Extension Housing Locating Pin
25	Idler Shaft Rear Bearing Shim
26	Idler Shaft Rear Bearing Race
27	Idler Shaft Rear Bearing
28	Idler Shaft
29	Idler Gear Shaft Rear Seal
30	Idler Gear Shaft
31	Idler Gear Shaft Front Seal
32	Transfer Case Seal
33	Intermediate Shaft O-ring Seal - second design
34	Intermediate Shaft Dirt Deflector - model dependant
35	Intermediate Shaft Assembly Retaining Ring
36	Intermediate Shaft Bearing Retaining Ring
37	Intermediate Shaft Bearing
38	Intermediate Shaft
39	Rear Output Shaft Housing O-ring Seal
40	Rear Output Shaft Shim
41	Rear Output Shaft
42	Rear Output Shaft Bearing
43	Rear Output Shaft Bearing Race
44	Rear Output Shaft Housing
45	Rear Output Shaft Bearing Spacer
46	Rear Output Shaft Bearing Race
47	Rear Output Shaft Bearing
48	Rear Output Drive Gear Nut
49	Rear Output Shaft Seal
50	Rear Output Shaft Housing Bolt
51	Transfer Case Drain Plug
52	Transfer Case Drain Plug Sealing Washer
53	Transfer Case-to-Transmission Locating Bushing
