Installation Procedure

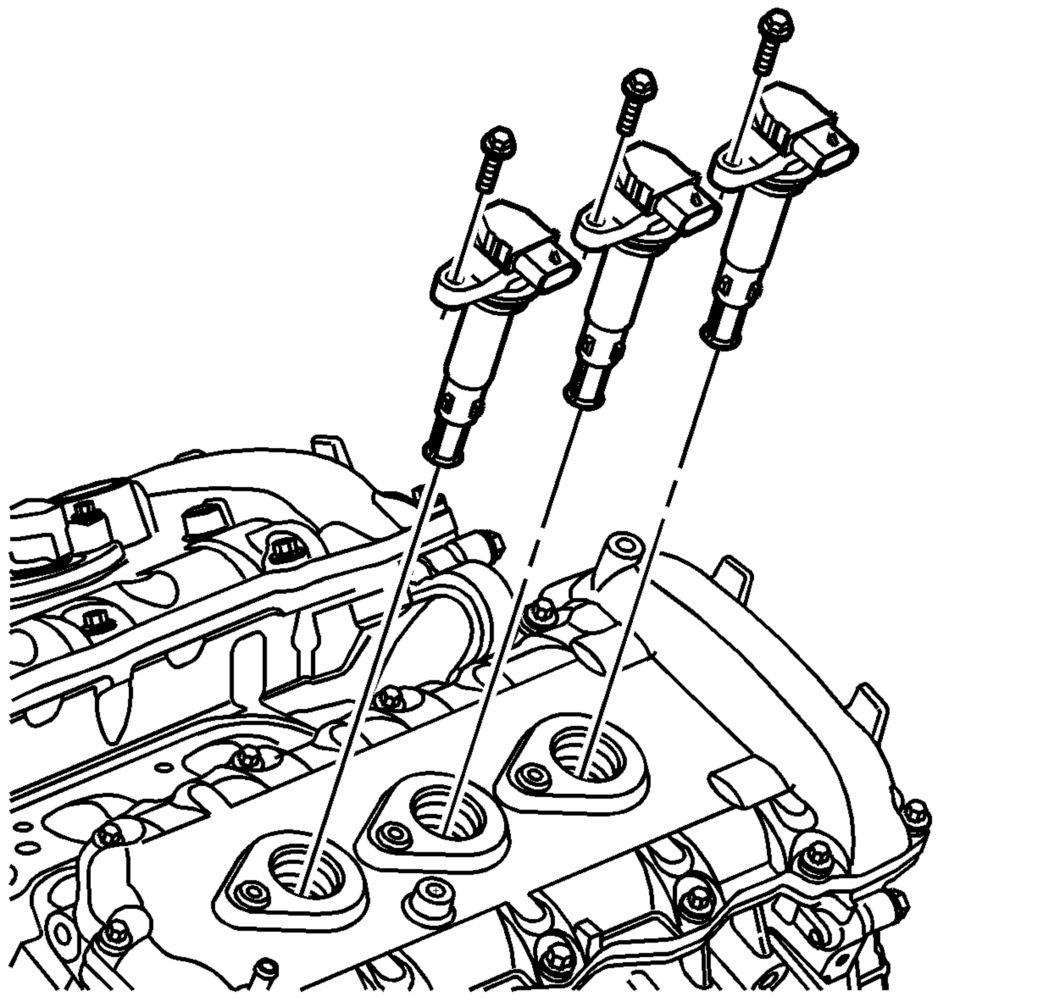

    Fig 1: Ignition Coil View
    GM860797Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coil(s).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s).

    Tighten

    Tighten the bolt(s) to 10 N.m (89 lb in).

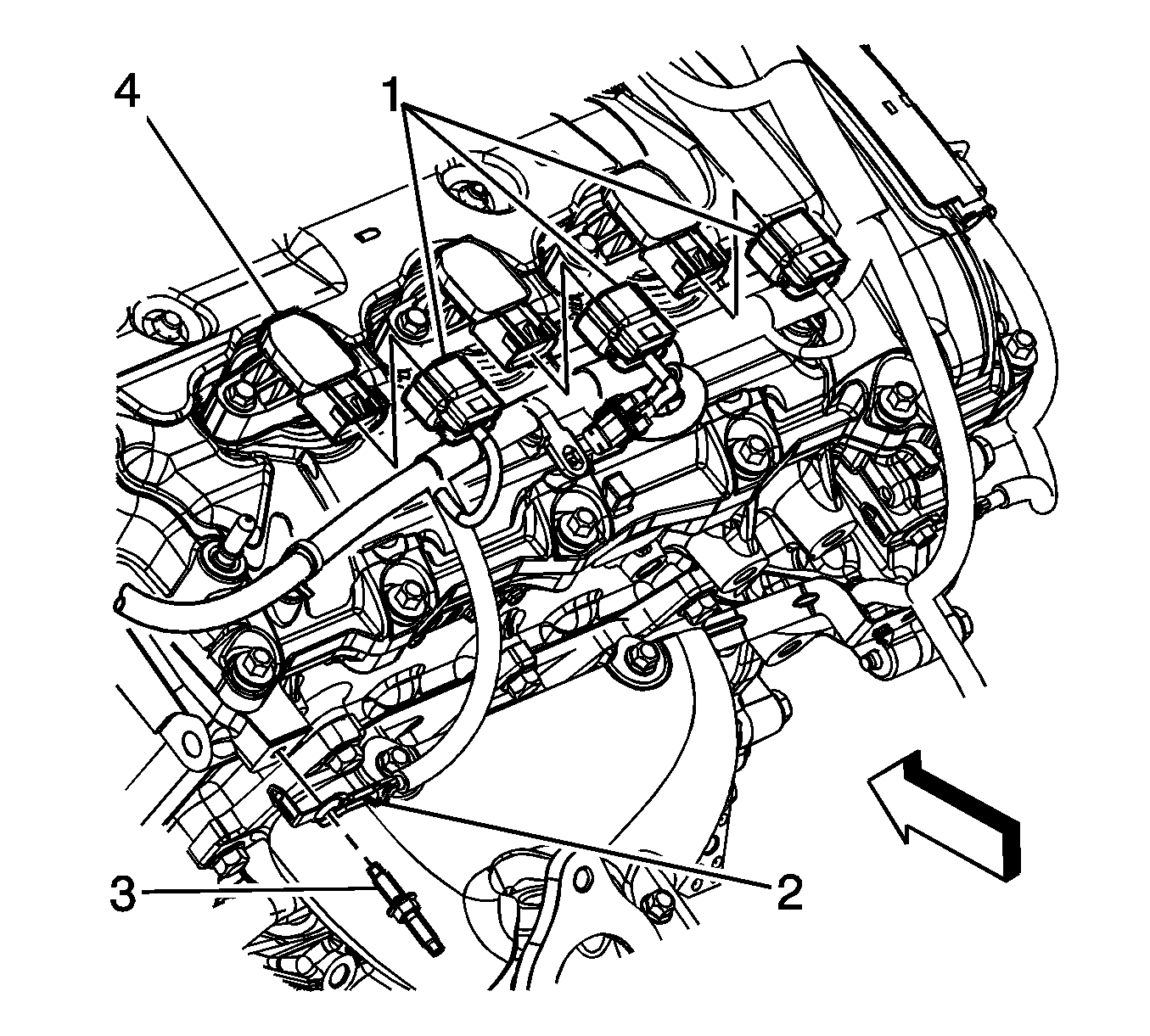

    3. Fig 2: View Of Ignition Coil Electrical Connector
    GM1860397Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s) (4).
  4. Install the intake manifold. Refer to Intake Manifold Replacement .
