Fuel Feed Pipe Replacement (Engine)

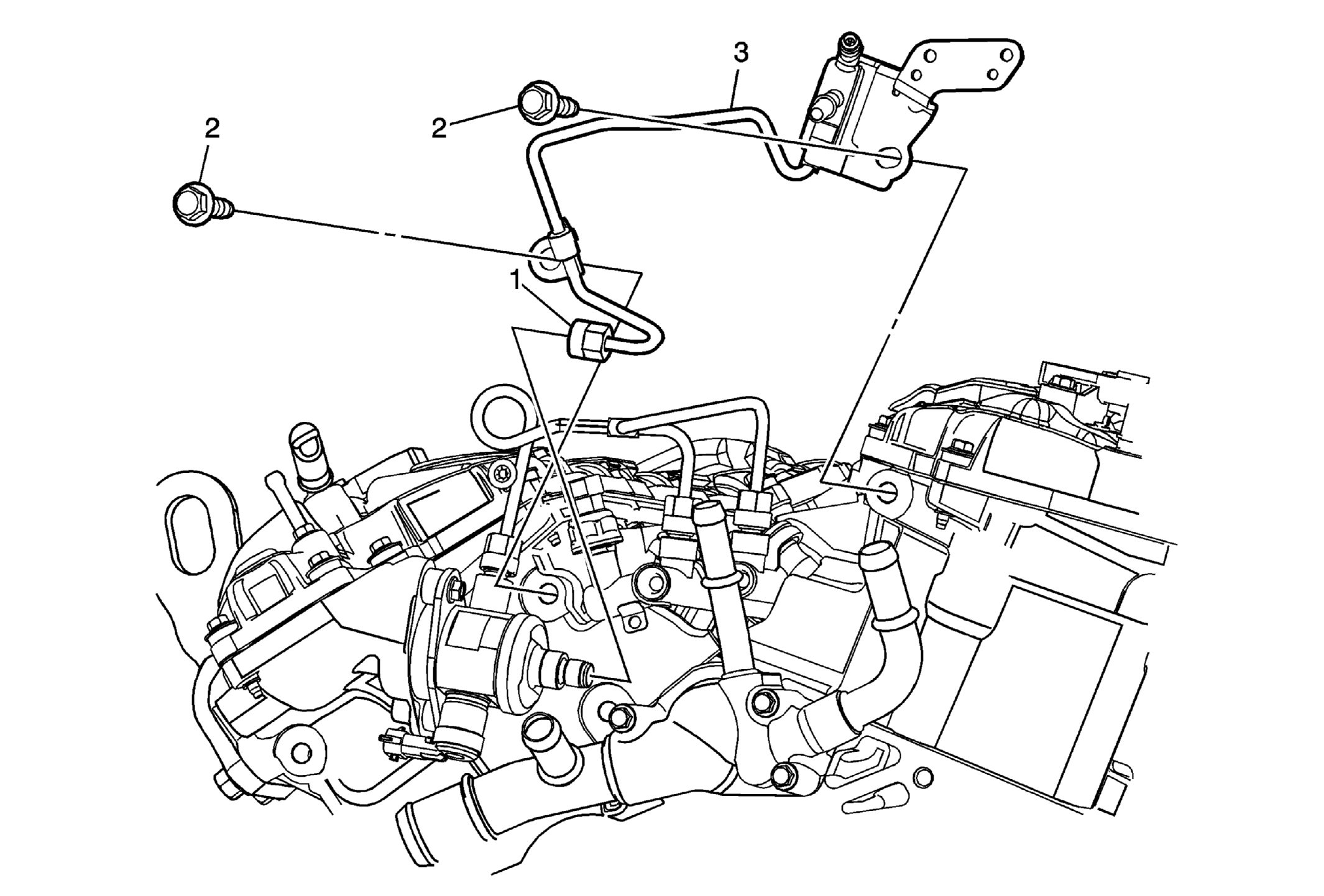

Courtesy of GENERAL MOTORS COMPANY Fuel Feed Pipe Replacement (Engine)
| Callout |
Component Name |
|
Preliminary Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief
- Remove the Intake manifold cover. Refer to Intake Manifold Cover Replacement
- Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
|
| 1 |
Fitting (Qty: 1)
Tighten
28 N.m(20 lb ft) |
| 2 |
Bolt (Qty: 2)
Tighten
50 N.m(28 lb ft) |
| 3 |
Fuel Feed Pipe Procedure
- Discard the pipe when removed and install a new pipe.
- Ensure that the high pressure fuel pipe, and fuel pump fittings are clean and dry prior to assembly.
- Pressure up the fuel system and check for leaks.
|
