Installation Procedure

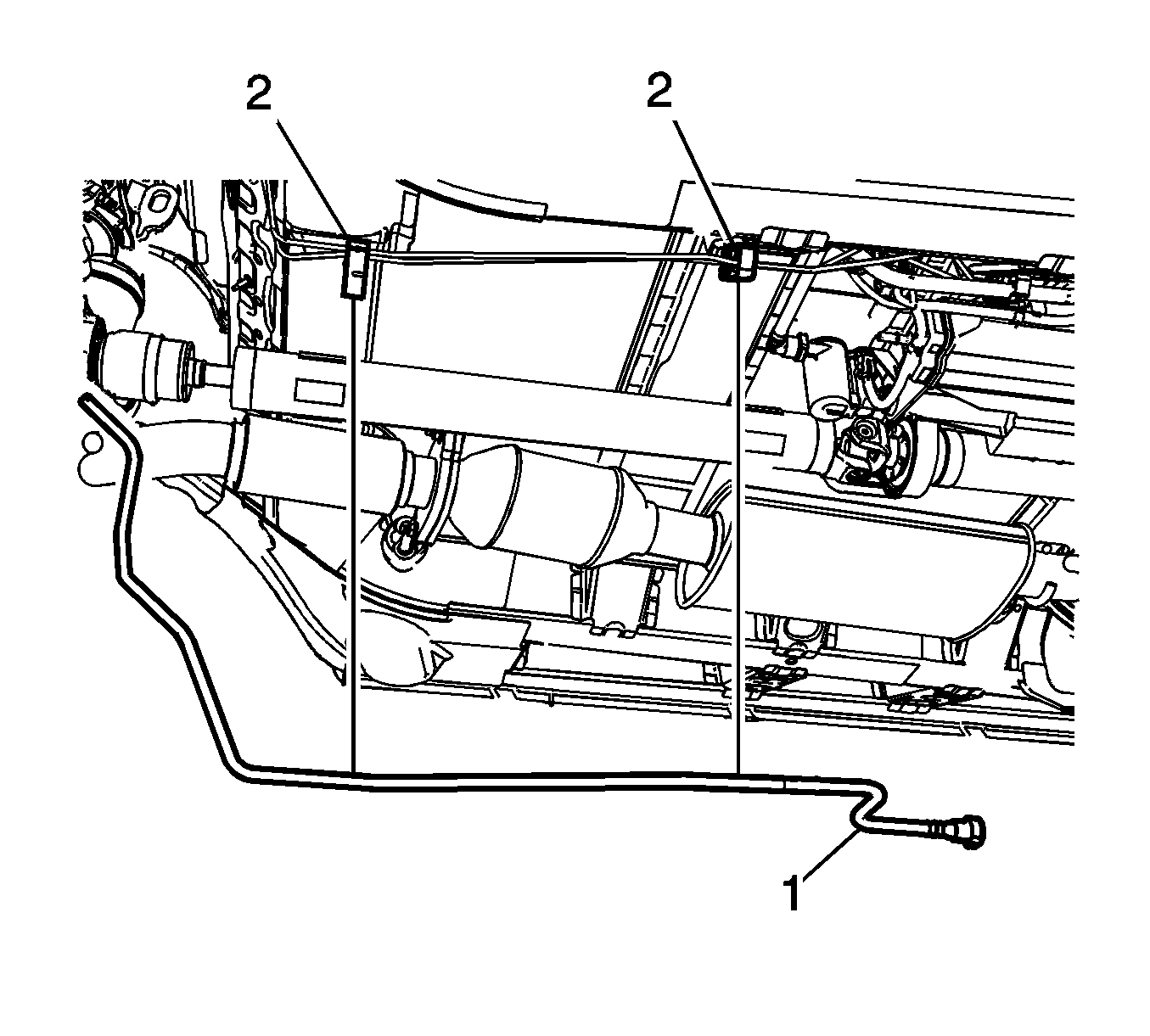

    Fig 1: View Of Evaporative Emission Line
    GM2234695Courtesy of GENERAL MOTORS COMPANY
  1. Install the evaporative emission line (1) into the plastic retainers (2).
  2. Connect the evaporative emission line (1). Refer to Plastic Collar Quick Connect Fitting Service .

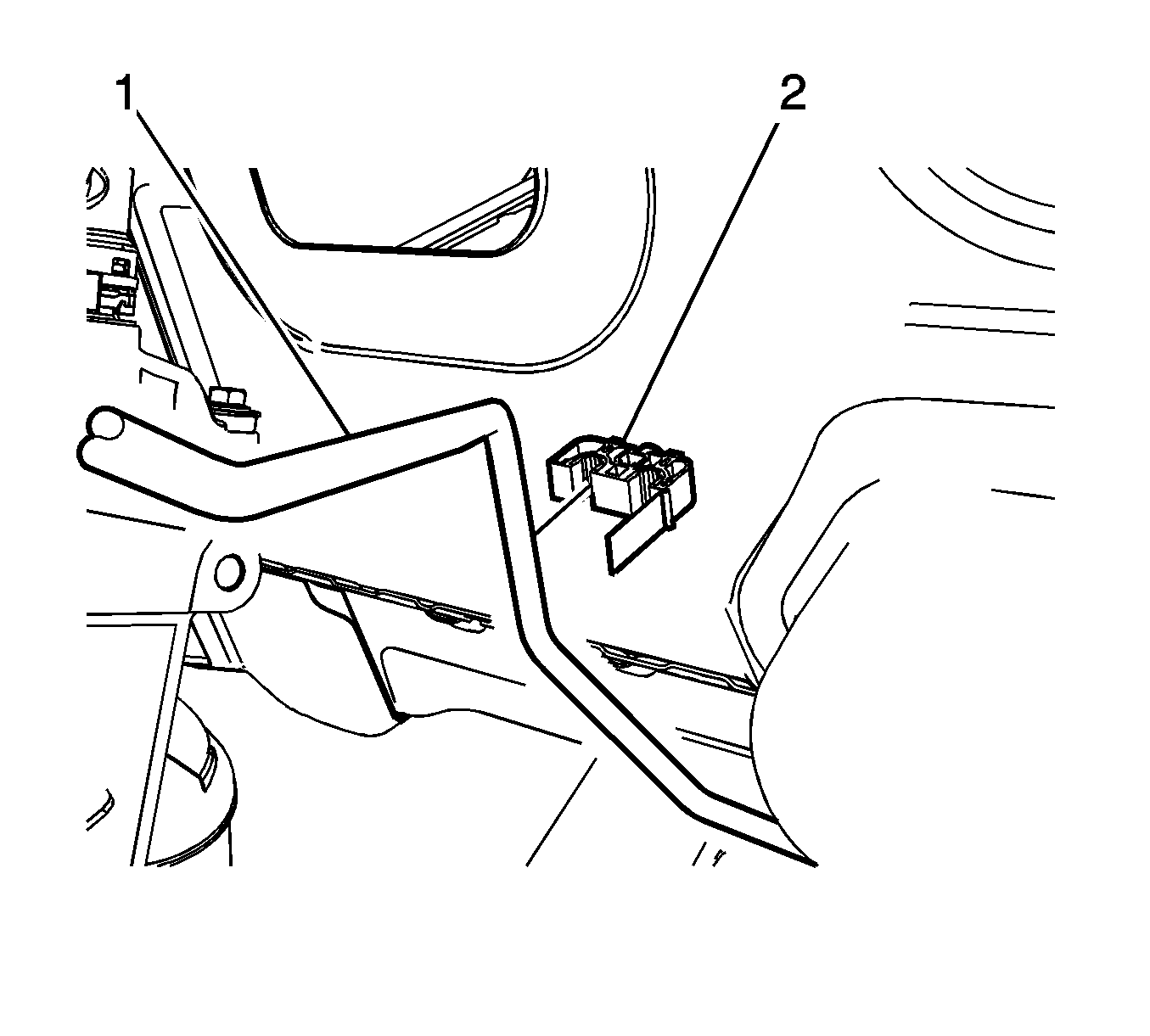

    3. Fig 2: Identifying Evaporative Emission Line & Plastic Retainer
    GM2234694Courtesy of GENERAL MOTORS COMPANY
  3. Engage the evaporative emission line (1) to the plastic retainer (2).

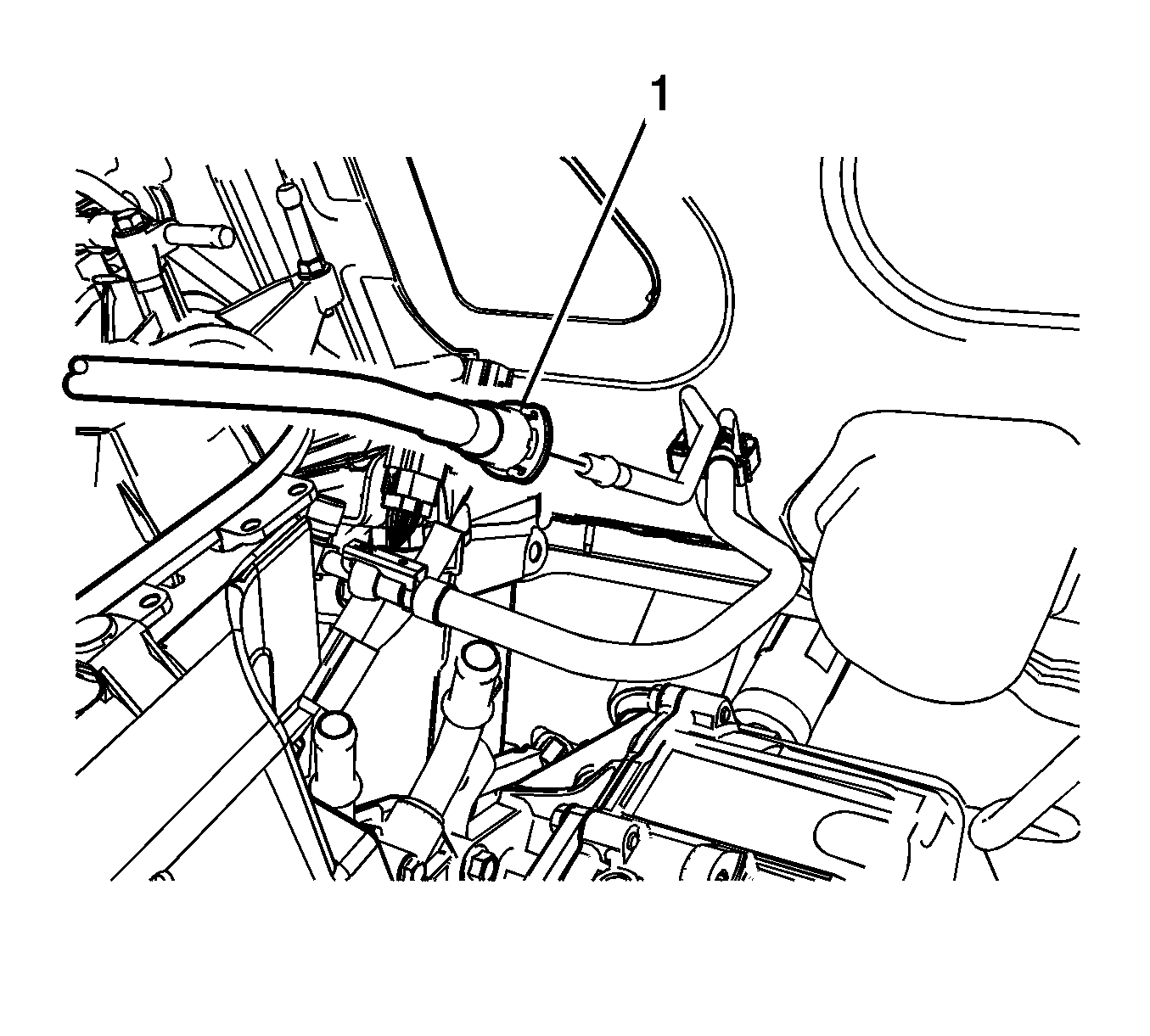

    4. Fig 3: Identifying Evaporative Emission Line
    GM2234692Courtesy of GENERAL MOTORS COMPANY
  4. Connect the evaporative emission line (1). Refer to Plastic Collar Quick Connect Fitting Service .
