Installation Procedure

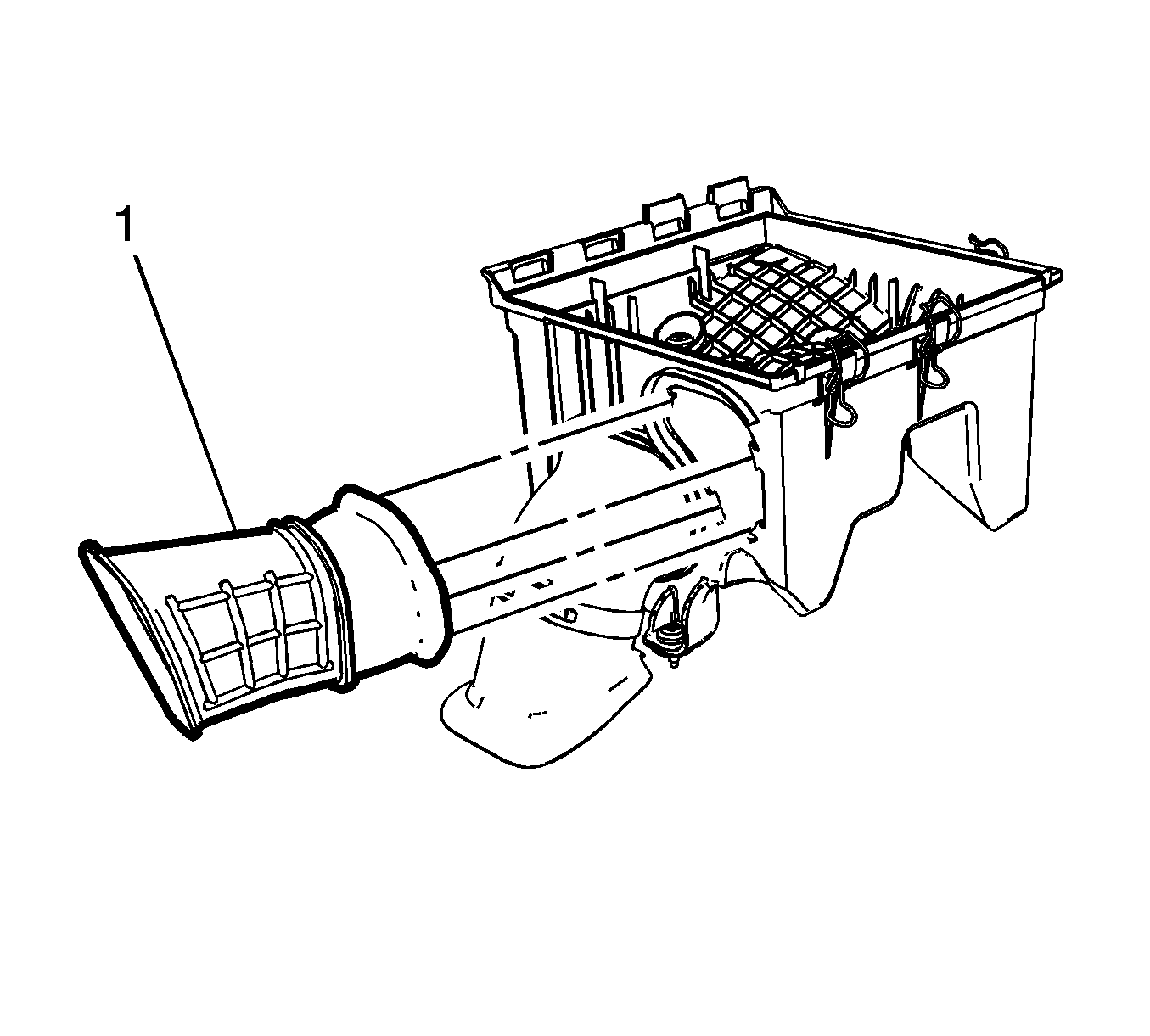

    Fig 1: Air Cleaner Inlet Duct
    GM2717510Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner inlet duct (1) to the air cleaner assembly.

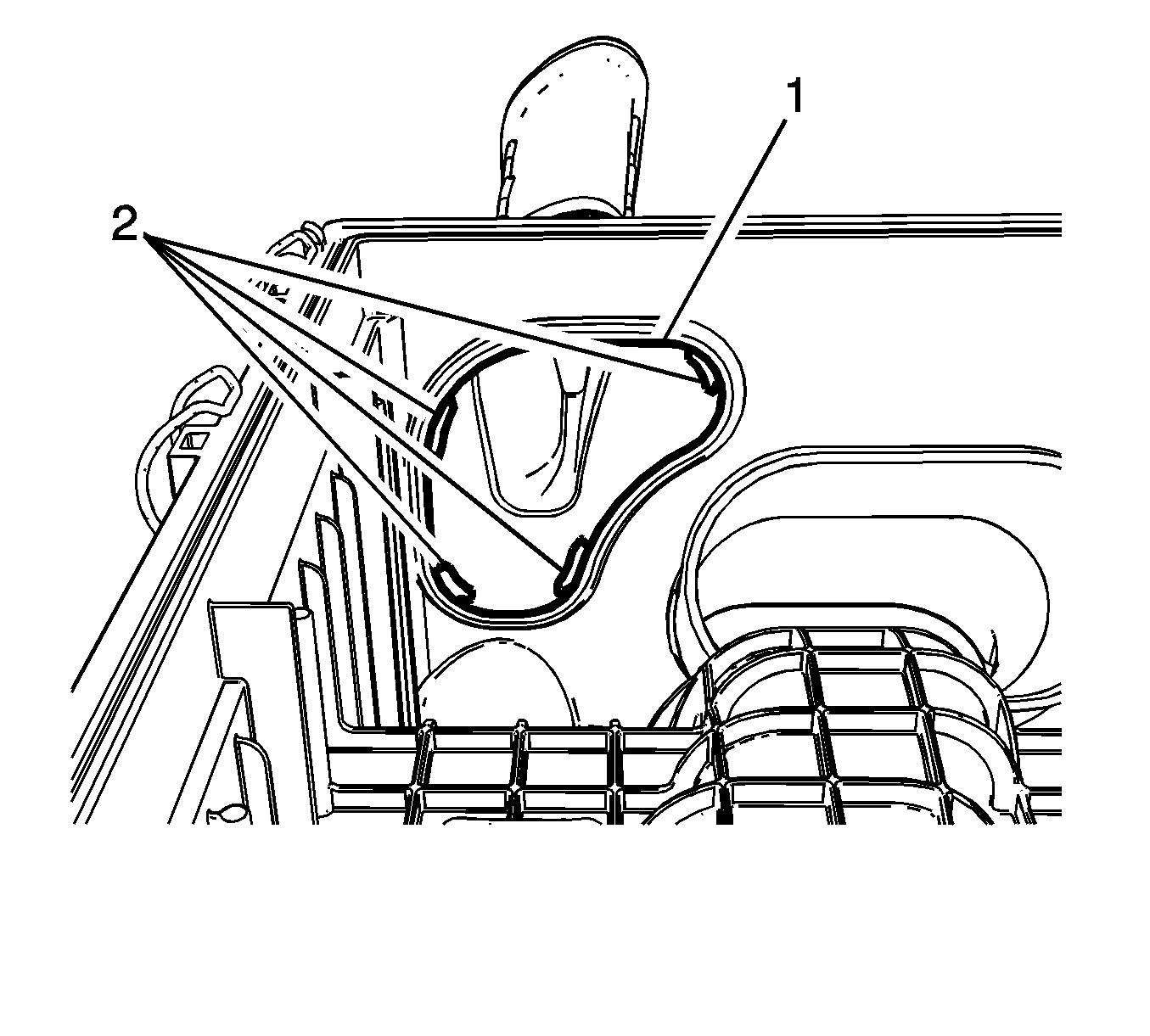

    2. Fig 2: Air Cleaner Inlet Duct Lockiing Tabs
    GM2717509Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure the air cleaner inlet duct is seated all the way on the locking tabs.

  2. Install the air cleaner inlet duct (1) to the locking tabs (2).
  3. Install the air cleaner element. Refer to Air Cleaner Element Replacement .
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
