Navigation Information Display Bezel Replacement

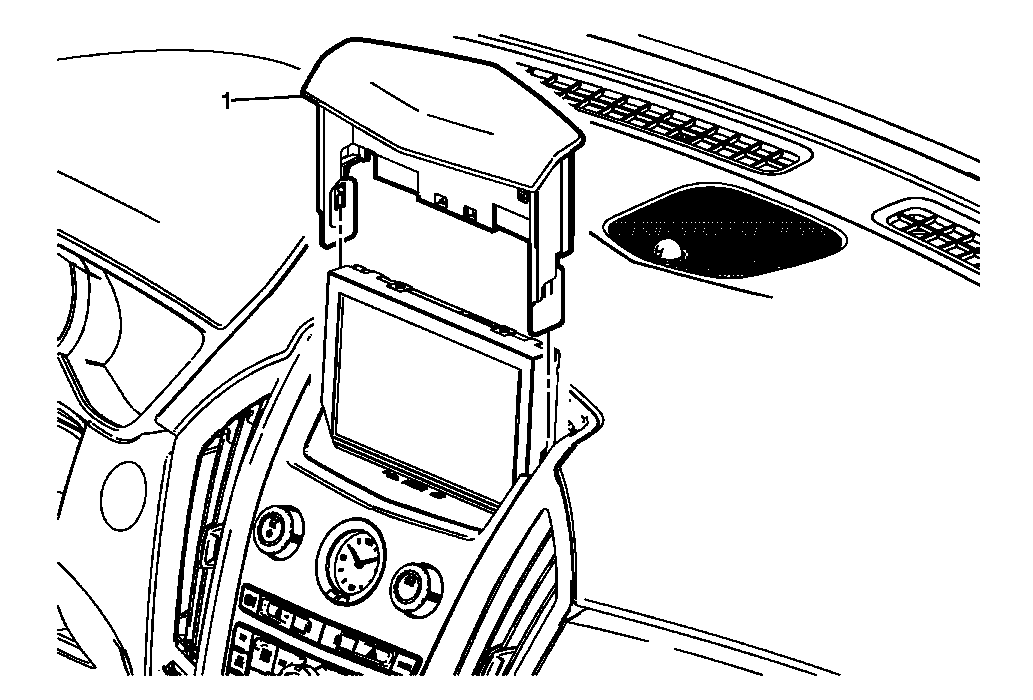

Courtesy of GENERAL MOTORS COMPANY Navigation Information Display Bezel Replacement
| Callout |
Component Name |
| 1 |
Navigation Information Display Bezel Procedures
- Position the Radio and Video and Audio Disc Player and Navigational Information Display in the up position.
- Slide a flat-bladed plastic trim tool between the information display screen and the navigation information display bezel along each side to release the two tabs retaining the bezel to the display screen.
|
