Installation Procedure

    NOTE:

    If a new steering shaft coupling is being installed then transfer the position of the alignment marks from the old component to the same locations on the new component. Failure to transfer the alignment marks may result in an off-center steering wheel after installation.

  1. Install the steering shaft coupling to the vehicle.

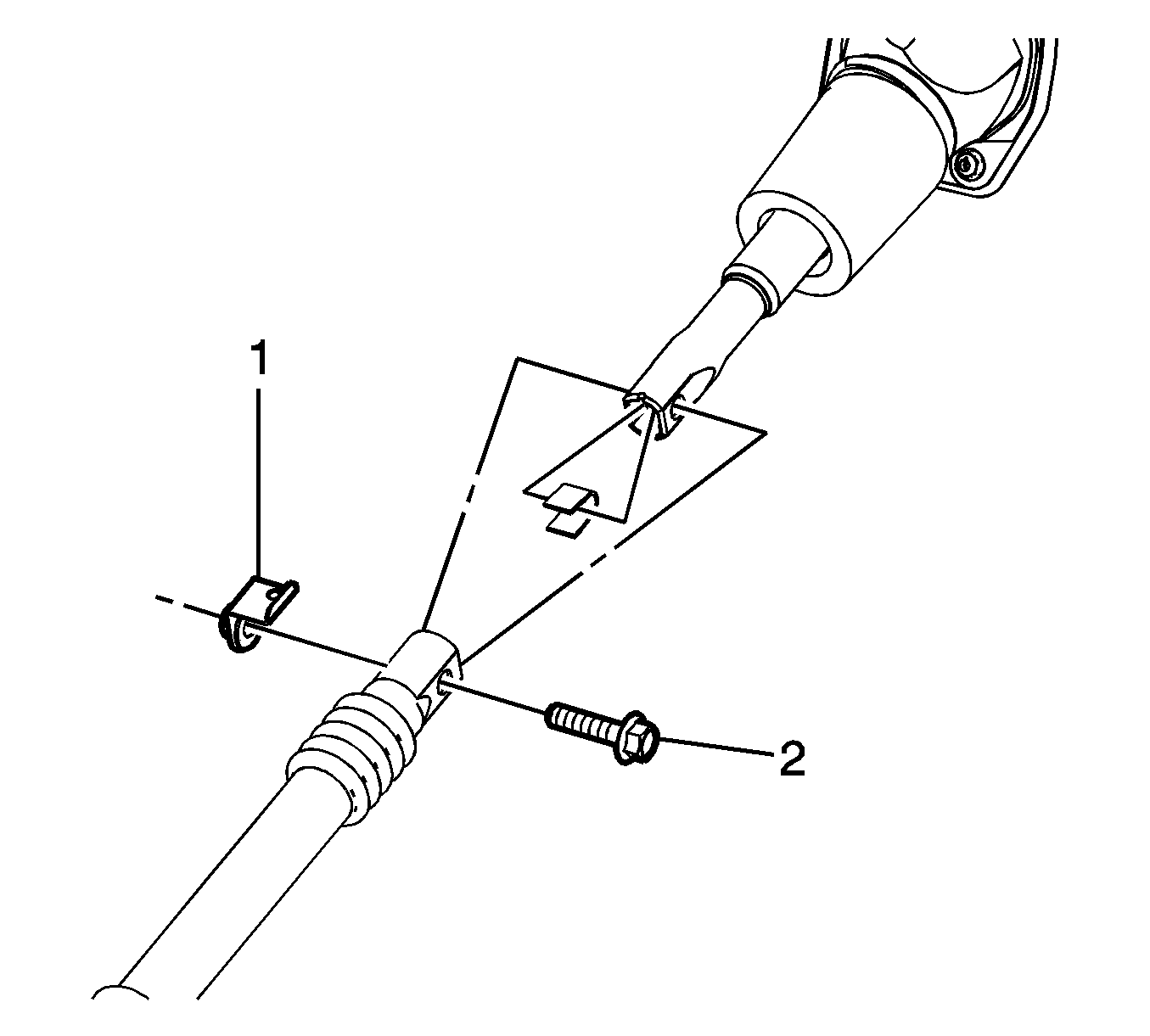

    2. Fig 1: View Of Upper & Lower Intermediate Shafts & Components
    GM1701888Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the steering shaft coupling nut (1) and bolt (2) at the upper intermediate steering shaft and tighten to 50 N.m (37 lb ft).
  3. Install the steering shaft coupling bolt at the steering gear and tighten to 47 N.m (35 lb ft).
  4. Install the engine shield. Refer to Engine Shield Replacement .
    5. Fig 2: Locking/Unlocking Steering Column
    GM333146Courtesy of GENERAL MOTORS COMPANY
  5. Remove the J 42640  anti-rotation pin from the steering column lower access hole.
