Steering Column Tilt Wheel Switch Replacement

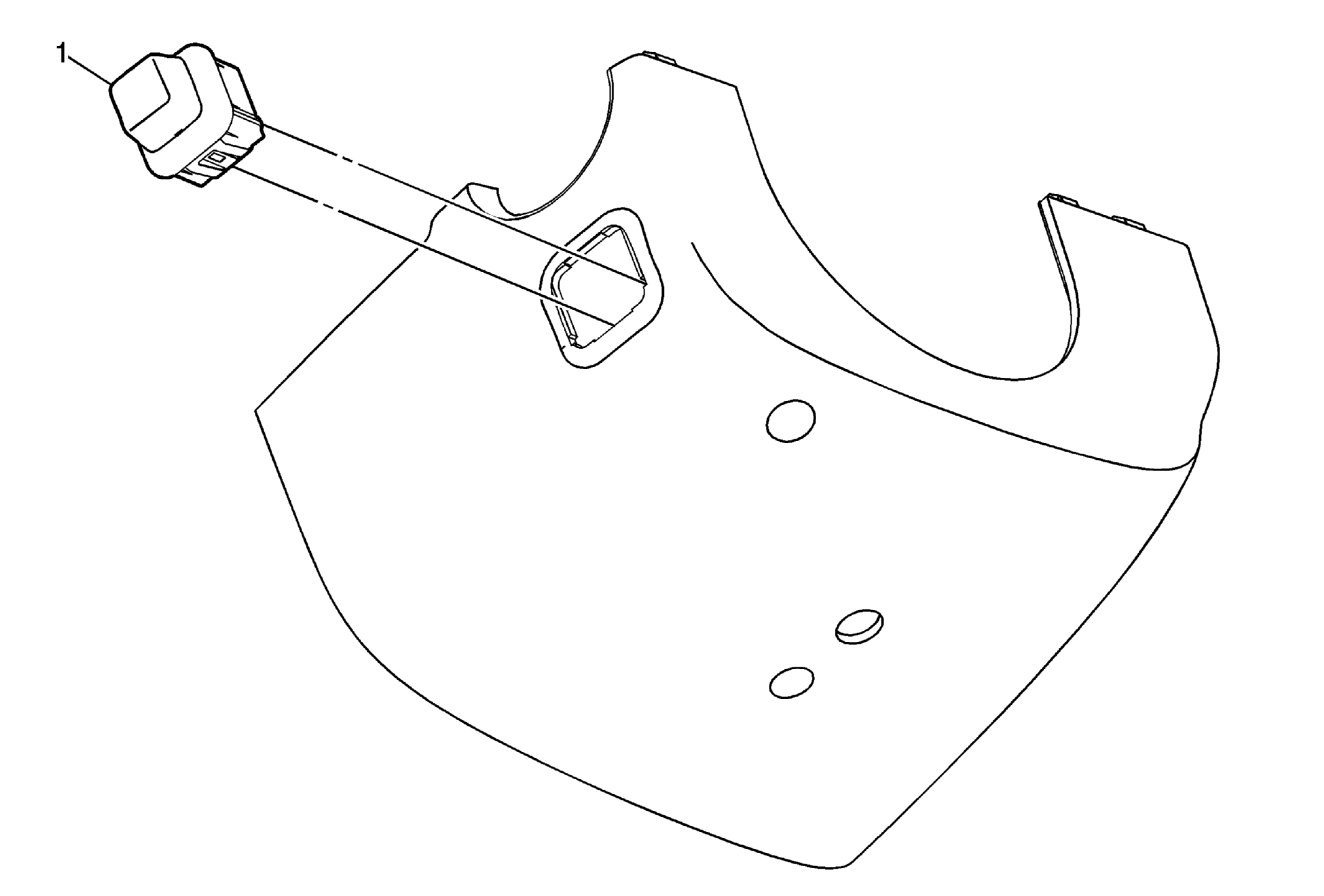

Fig 1: Steering Column Tilt Wheel Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column lower shroud. Refer to Steering Column Shroud Replacement (With Electronic Tilt Steering) , Steering Column Shroud Replacement (Without Electronic Tilt Steering) .
1	Steering Column Tilt Wheel Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to release the switch from the steering column lower shroud.

Callout

Component Name

Steering Column Tilt Wheel Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to release the switch from the steering column lower shroud.
