Installation Procedure

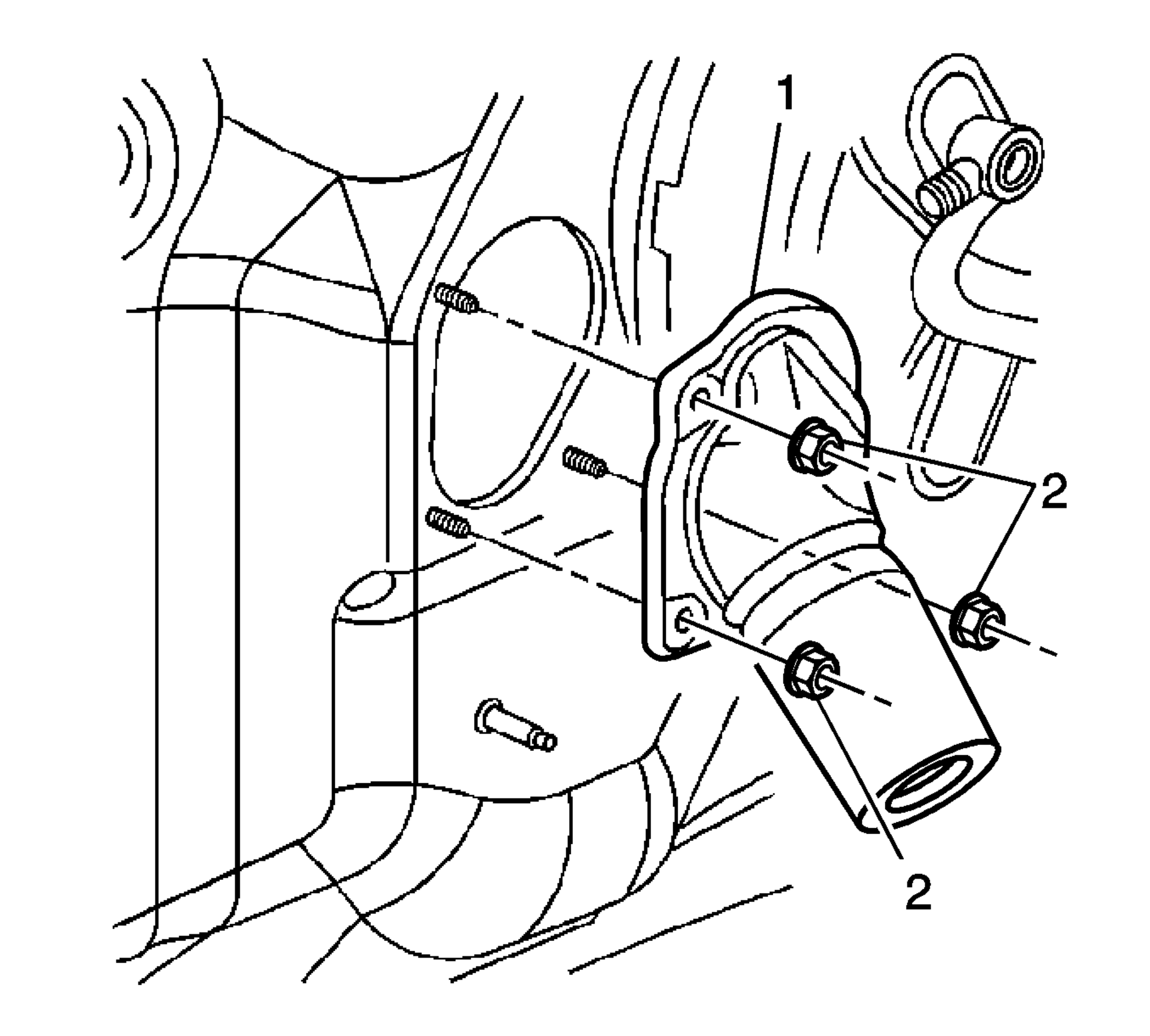

    Fig 1: View Of Steering Column Seal & Nuts
    GM1861847Courtesy of GENERAL MOTORS COMPANY
  1. Install the steering column seal (1) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 3 steering column seal nuts (2) and tighten to 3 N.m (27 lb in).
  3. Connect the steering shaft coupling to the upper intermediate steering shaft. Refer to Steering Shaft Coupling Replacement .
