Installation Procedure

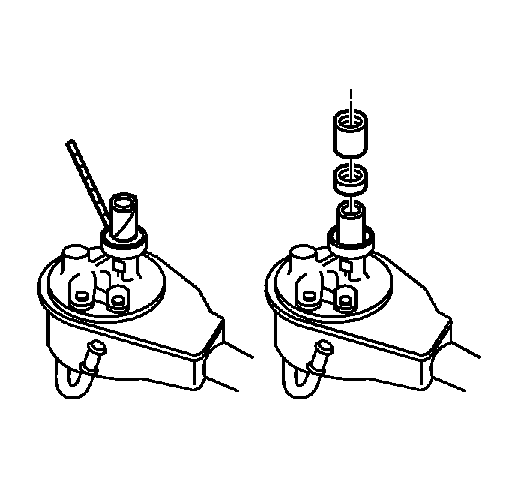

    Fig 1: View Of Power Steering Pump Drive Shaft Seal
    GM1555824Courtesy of GENERAL MOTORS COMPANY
  1. Lubricate the new power steering pump shaft seal with power steering fluid.
  2. Use a deep 1 inch tall socket in order to install the new power steering pump shaft seal.
  3. Install the power steering pump. Refer to Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) .
