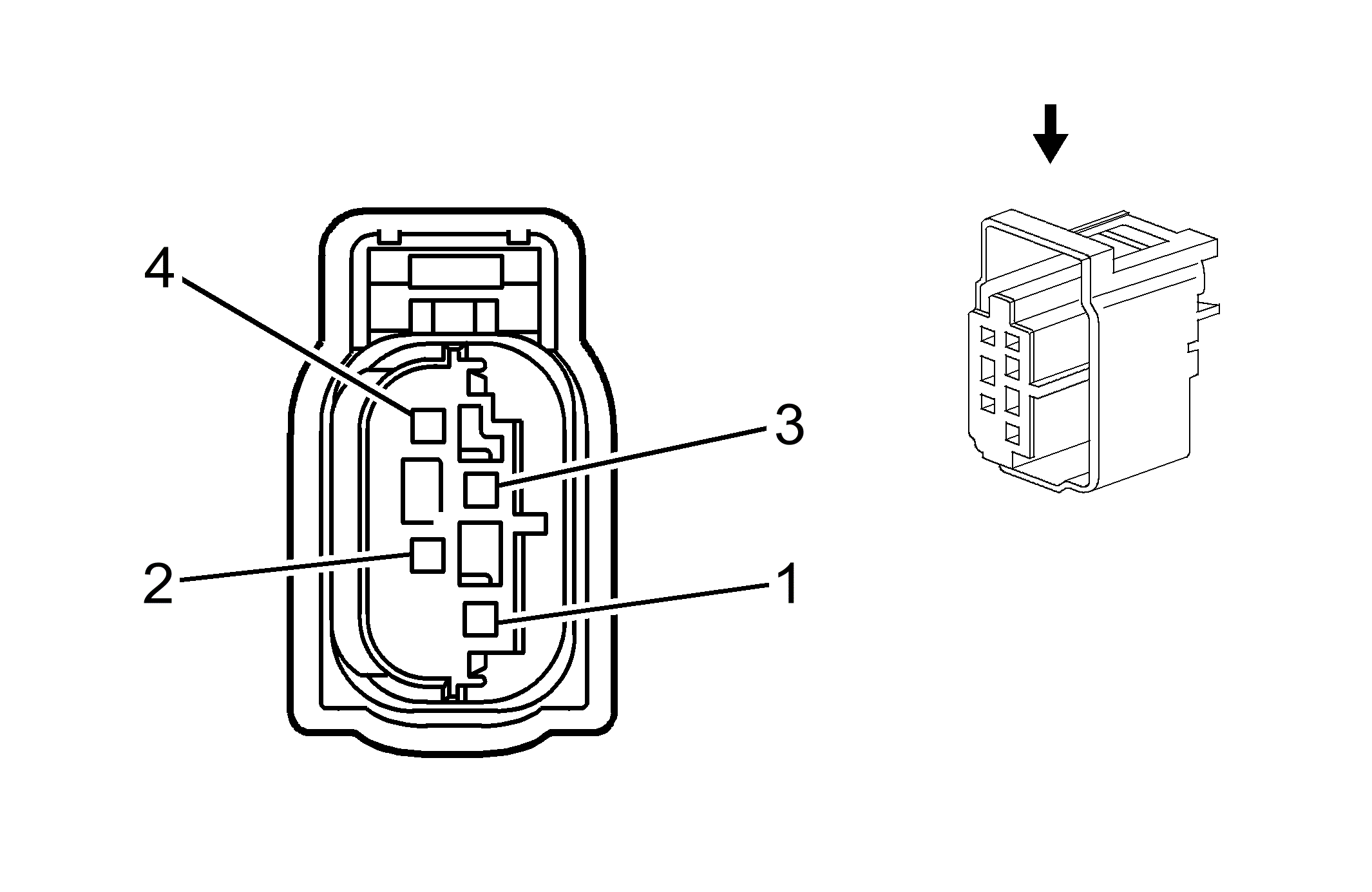

Yaw and Lateral Accelerometer Sensor (JD9 under 8600 GVW, except HP2)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 19151658
- Service Connector: 19179283
- Description: 4-Way F MQS Series (BK)
|
Terminal Part Information
- Terminated Lead: 13576395
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 962885-5/15
- Core/Insulation Crimp: 6/6
|
Yaw and Lateral Accelerometer Sensor (JD9 under 8600 GVW, except HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK/WH |
2751 |
Ground |
| 2 |
0.5 L-GN/BK |
6432 |
CAN Bus Low Serial Data |
| 3 |
0.5 TN/WH |
6433 |
CAN Bus High Serial Data |
| 4 |
0.5 D-GN |
2087 |
12-Volt Reference |
