Video Signal Splitter X2 (X88 or Z88, with DNU)
 Courtesy of
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 15340668
- Service Connector: 88975902
- Description: 16-Way F 040 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13579932
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 173681-2/17
- Core/Insulation Crimp: E/4
|

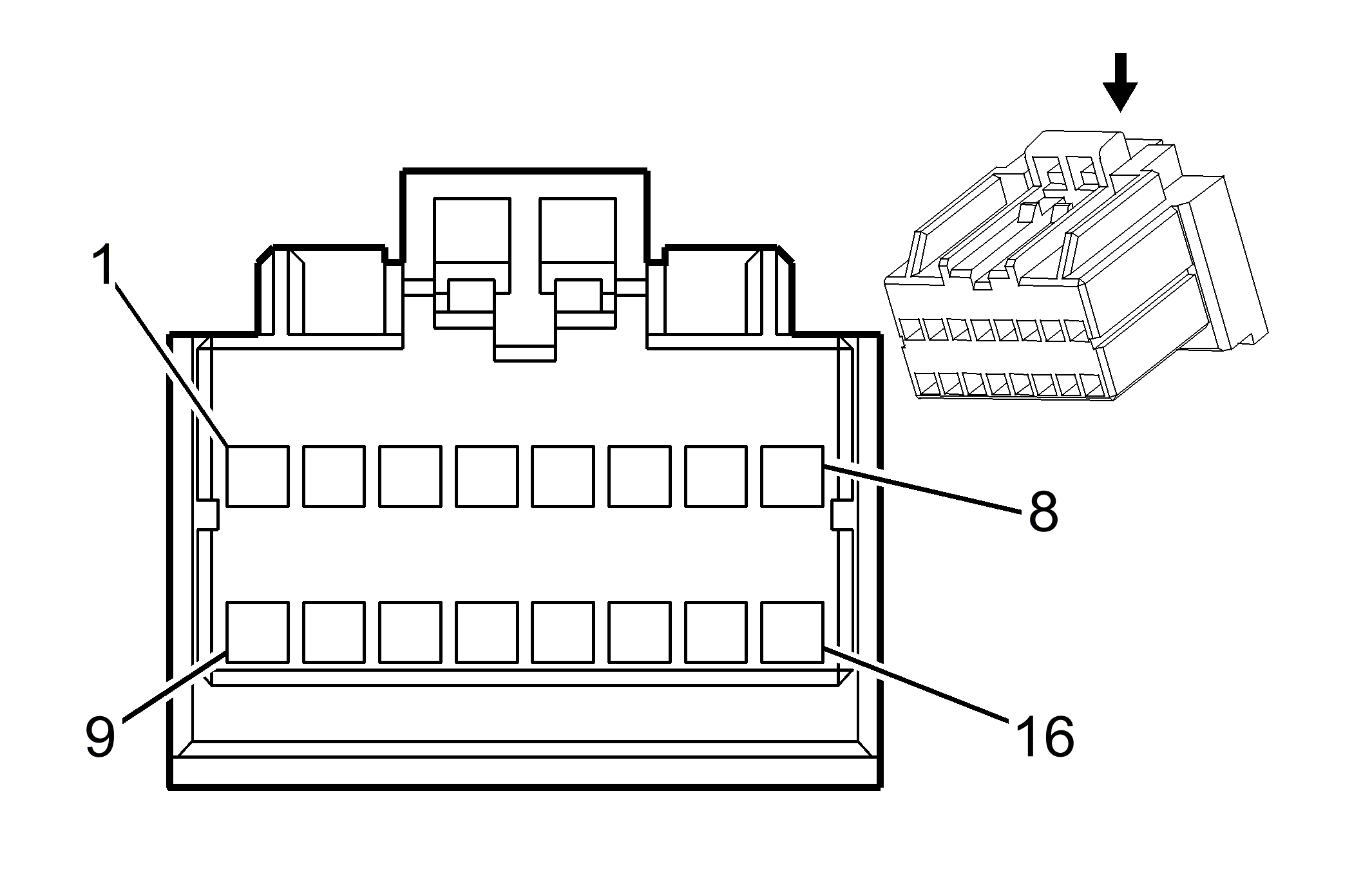

Video Signal Splitter X2 (X88 or Z88, with DNU)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
6975 |
DVD Video Signal (+) |
| 2 |
0.5 BARE |
6976 |
Drain Wire |
| 3-5 |
- |
- |
Not Used |
| 6 |
0.5 RD/WH |
3240 |
Battery Positive Voltage |
| 7 |
- |
- |
Not Used |
| 8 |
0.35 PK/BK |
5844 |
Video Bright Signal |
| 9 |
0.35 WH/BK |
5335 |
DVD Video Signal (-) |
| 10 |
- |
- |
Not Used |
| 11 |
0.35 WH |
7066 |
Entertainment Remote Enable Signal |
| 12-13 |
- |
- |
Not Used |
| 14 |
0.5 PK/BK |
2550 |
Ground |
| 15 |
0.35 BK |
2550 |
Ground |
| 16 |
0.35 L-GN/BK |
5845 |
Video Mode Signal |
