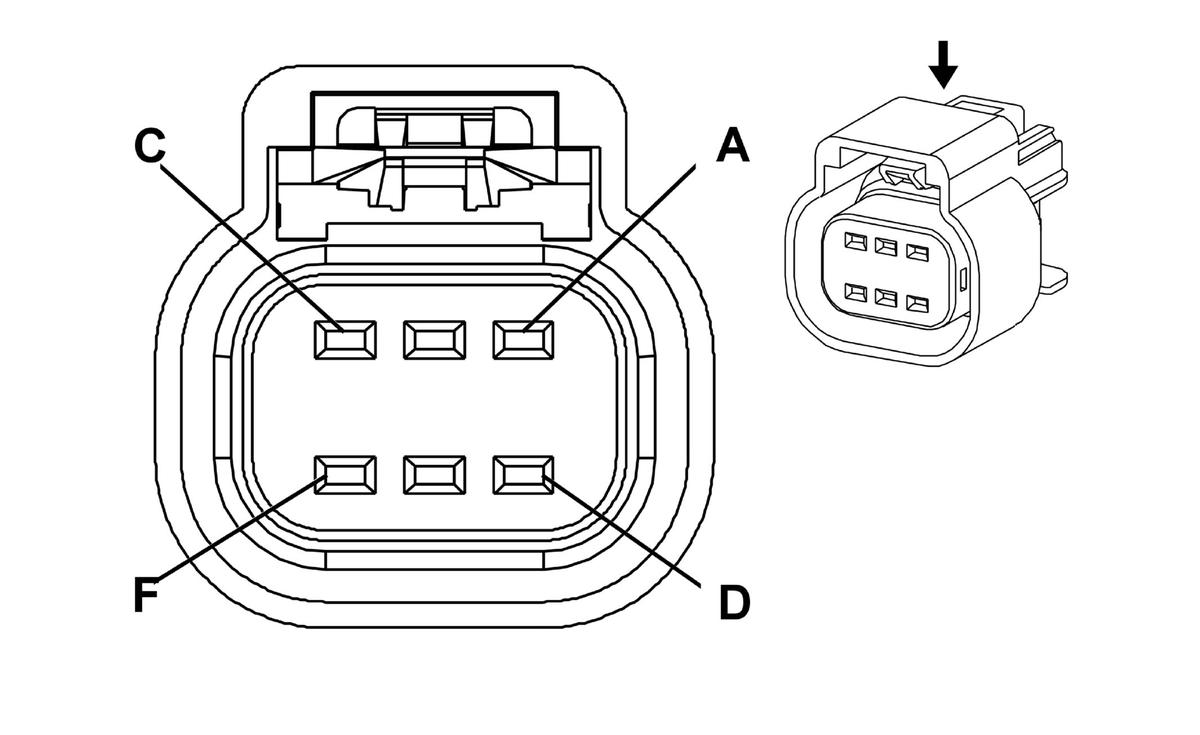

Throttle Body

GM1468494Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15418497
  • Service Connector: 13584095
  • Description: 6-Way F GT 150 Series Sealed (GY)
Terminal Part Information
  • Terminated Lead: 13575396
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15326427/5
  • Core/Insulation Crimp: E/A
Throttle Body

Pin Wire Circuit Function
A 0.5 BN 582 Throttle Actuator Control (TAC) Motor Control- 2
B 0.5 YE 581 Throttle Actuator Control (TAC) Motor Control- 1
C 0.35 TN 2752 Low Reference
D 0.35 D-GN 485 TP Sensor 1 Signal
E 0.35 GY 2701 5-Volt Reference
F 0.35 PU 486 Throttle Position Sensor 2 Signal
