Tail Lamp Circuit Board- Right (Z75 with E52)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 12077591
- Service Connector: 12117277
- Description: 5-Way F Metri-Pack 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 12117277
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

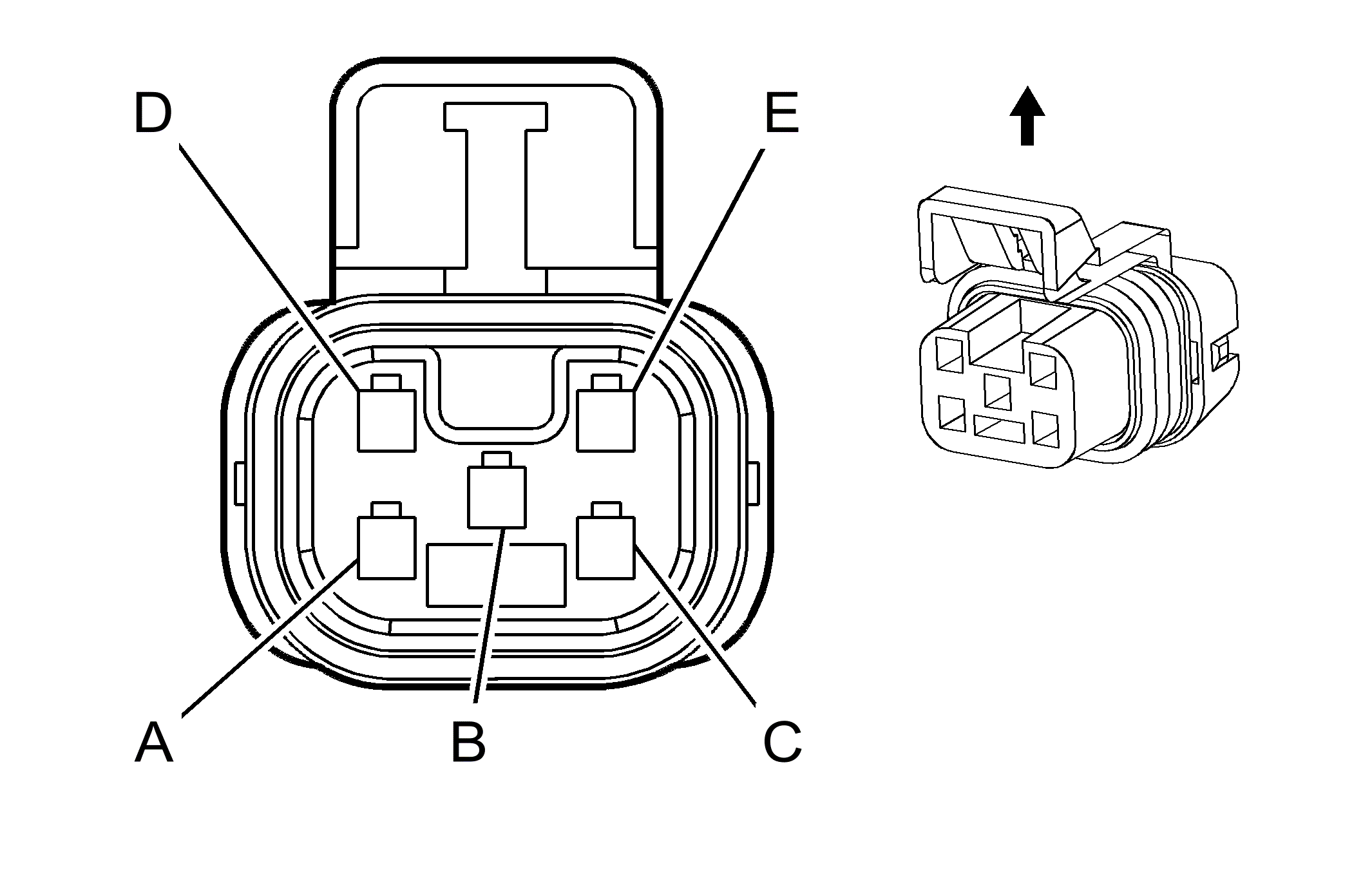

Tail Lamp Circuit Board- Right (Z75 with E52)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 BN |
2609 |
Right Rear Park Lamps Control |
| B |
0.5 YE/BK |
1335 |
Right Rear Stop/Turn Lamp Control |
| C |
0.5 PK/BK |
5357 |
Right Tail Lamp Outage Detection Signal |
| D |
0.5 BK |
1750 |
Ground |
| E |
0.5 L-BU |
20 |
Right Rear Stop/Turn Lamp Control (EXP) |
| 0.5 L-BU |
19 |
Right Rear Stop/Turn Lamp Control (except EXP) |
