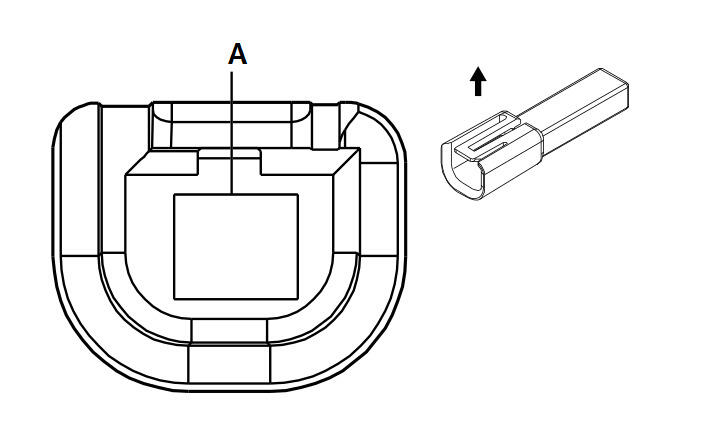

Spot Lamp- Right (7X6)

GM611495Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 12047683
  • Service Connector: 12101828
  • Description: 1-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575462
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/C
Spot Lamp- Right (7X6)

Pin Wire Circuit Function
A 0.5 RD/WH 4540 Battery Positive Voltage
