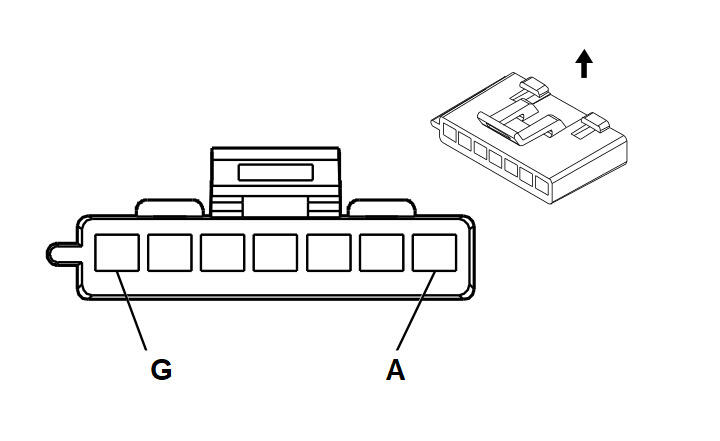

Seat Lumbar Switch - Driver (AN3)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12052854
- Service Connector: 15862656
- Description: 7-Way F Metri-Pack 280 Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 15862656
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12034046/2
- Core/Insulation Crimp: E/A
|
Seat Lumbar Switch - Driver (AN3)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 YE/BK |
1067 |
Driver Seat Lumbar Down Switch Signal |
| B |
0.35 D-BU |
1064 |
Driver Seat Lumbar Rearward Switch Signal |
| C |
0.35 YE |
1065 |
Driver Seat Lumbar Forward Switch Signal |
| D-E |
- |
- |
Not Used |
| F |
0.35 WH |
1066 |
Driver Seat Lumbar Up Switch Signal |
| G |
0.35 PU/WH |
6205 |
Battery Positive Voltage |
