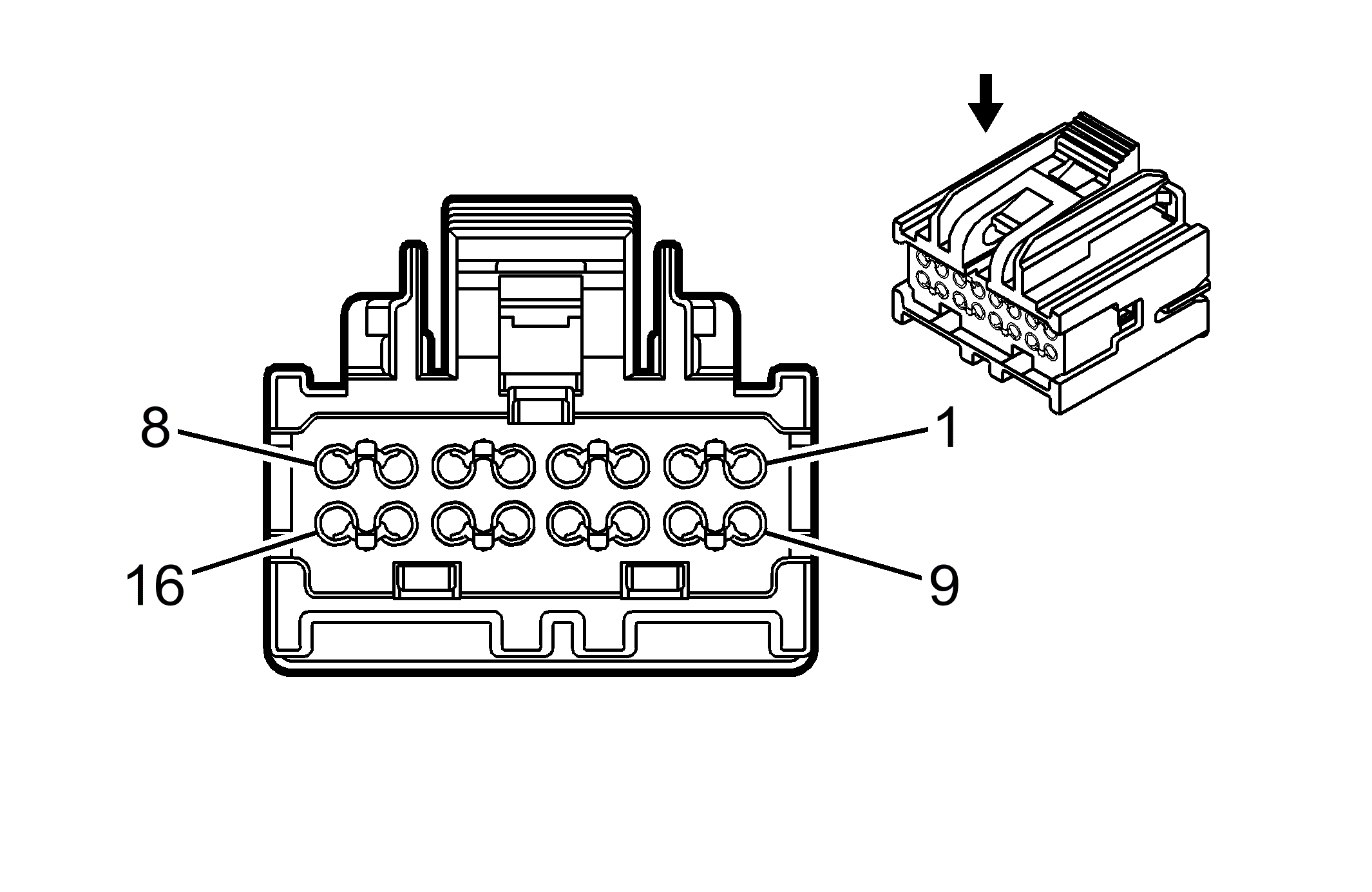

Radio X4 (UQS or UVC)

GM2133384Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel (STZ or Y91)
  • Harness Type: Instrument Panel Extension (without STZ or Y91)
  • OEM Connector: 13568240 (STZ or Y91)
  • OEM Connector: 13783351 (without STZ or Y91)
  • Service Connector: 13504590 (STZ or Y91)
  • Service Connector: 13579578 (without STZ or Y91)
  • Description: 16-Way F Mirco-Pack 64 Series, Sealed (BN)
Terminal Part Information
  • Terminated Lead: 13575550
  • Release Tool: J-38125-559
  • Diagnostic Test Probe: J-35616-16 (L-GN)
  • Terminal/Tray: 15445905/23
  • Core/Insulation Crimp: J/J
Radio X4 (UQS or UVC)

Pin Wire Circuit Function
1-2 - - Not Used
3 0.35 D-BU 6760 Center Channel Low Level Audio Signal (UQS)
4 0.35 WH 6763 Subwoofer Low Level Audio Signal (UQS)
5 0.5 D-GN/WH 817 Vehicle Speed Signal (UVC)
6 0.35 WH 7641 Camera Signal (+) (UVC)
7 0.35 L-BU 7642 Camera Signal (-) (UVC)
8 0.35 PU 5837 Amplifier Audio Prompt Signal (+) (UQS)
9-10 - - Not Used
11 0.35 OG 6761 Center Channel Low Level Audio Signal (-) (UQS)
12 0.35 PK 6762 Subwoofer Low Level Audio (-) (UQS)
13 0.35 BARE 6759 Drain Wire (UQS)
14 - - Not Used
15 0.35 BARE 5838 Drain Wire (UQS)
16 0.35 GY 5836 Amplifier Audio Prompt Signal (-) (UQS)
