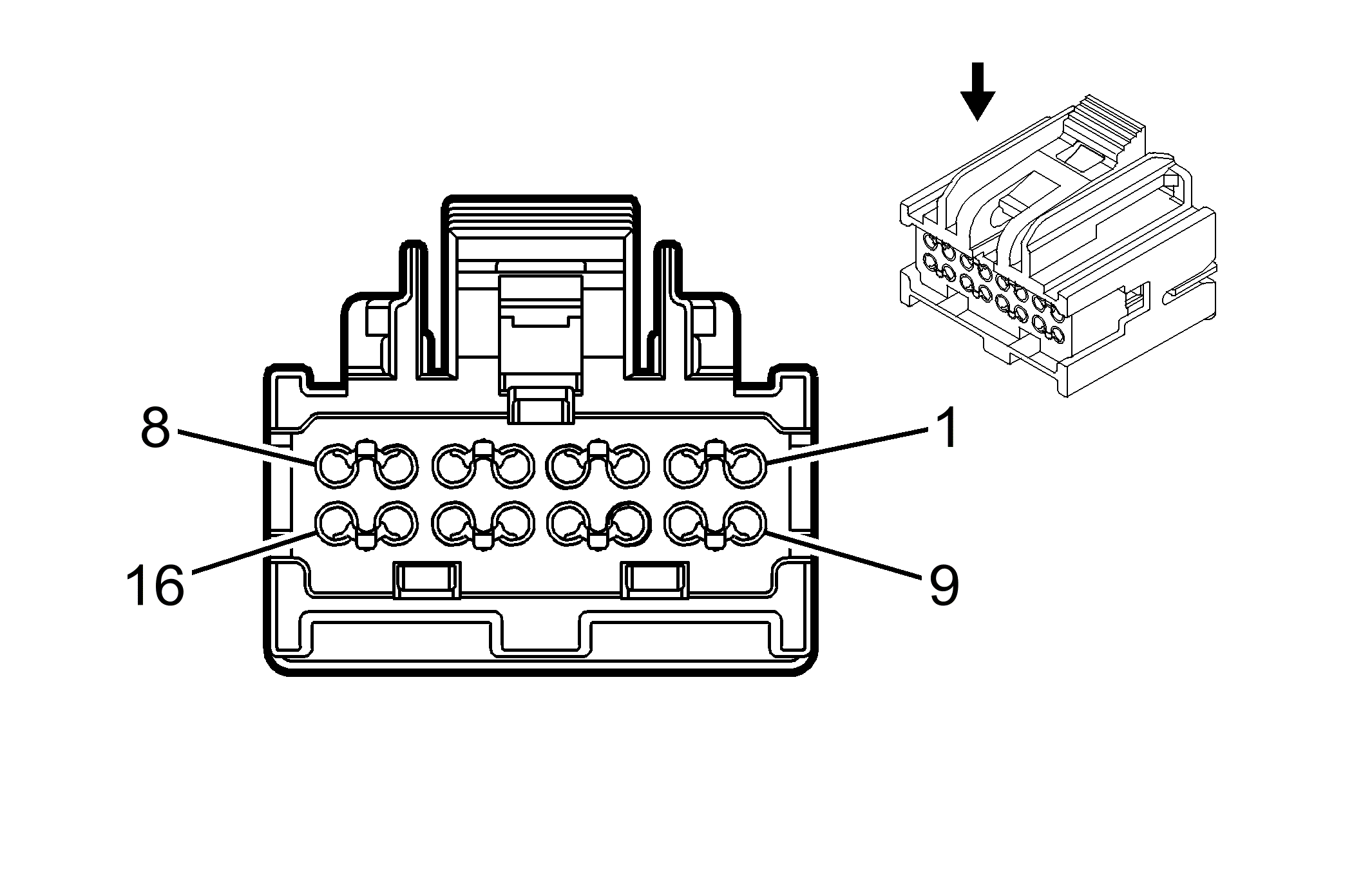

Radio X3 (U42)

GM2133386Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel (STZ or Y91)
  • Harness Type: Instrument Panel Extension (without STZ or Y91)
  • OEM Connector: 13568239 (STZ or Y91)
  • OEM Connector: 13783350 (without STZ or Y91)
  • Service Connector: 13504589 (STZ or Y91)
  • Service Connector: 13580577 (without STZ or Y91)
  • Description: 16-Way F Micro 64 Series, Sealed (GY)
Terminal Part Information
  • Terminated Lead: 13575528
  • Release Tool: J-38125-21
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
Radio X3 (U42)

Pin Wire Circuit Function
1 0.35 YE 2059 Auxiliary Audio Left Signal
2 0.35 WH 2058 Auxiliary Audio Right Signal
3 0.35 L-BU 5826 Left DVD Audio Signal (+)
4 0.35 WH 5828 Right DVD Audio Signal (+)
5 0.35 OG/BK 5831 Remote Infra Red Signal (+)
6 0.35 PK/BK 5844 Video Bright Control
7 0.35 D-GN 6975 DVD Video Signal (+)
8 0.35 PU 2056 Auxiliary Video High Signal
9 0.35 BARE 5345 Drain Wire
10 0.35 L-GN/BK 5845 Video Module Signal
11 0.35 PU 6979 DVD Audio Common
12 0.35 BARE 6980 DVD Audio Shield
13 0.35 TN/WH 5830 Remote Infra Red Signal (-)
14 0.35 BARE 6976 DVD Video Drain Wire
15 0.35 WH/BK 5335 DVD Video Signal (-)
16 0.35 BARE 5346 Video Drain Wire
