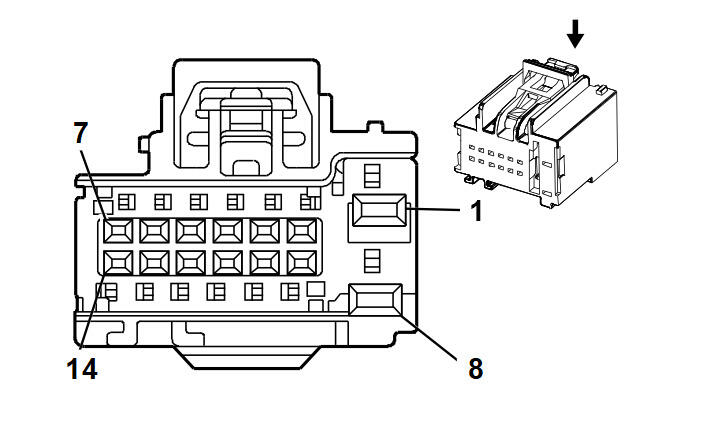

| 1 |
1 RD/WH |
340 |
Battery Positive Voltage |
| 2 |
0.5 TN |
201 |
Left Front Speaker Output (+) (UQ3) |
| 0.35 TN |
511 |
Left Front Low Level Audio Signal (+) (UQA or UQS) |
| 3 |
0.5 L-GN |
200 |
Right Front Speaker Output (+) (UQ3) |
| 0.35 L-GN/WH |
512 |
Right Front Low Level Audio Signal (+) (UQA or UQS) |
| 4 |
0.35 PK |
5149 |
Voice Recognition Audio Signal (UE1 with UUK, UUL or UUM) |
| 0.35 GY |
655 |
Voice Recognition Audio Signal (UVC without UE1) |
| 5 |
0.35 PK/BK |
5152 |
Low Reference (UE1 with UUK, UUL or UUM) |
| 0.5 PK/BK |
514 |
Low Reference (UE1 without UUK, UUL or UUM or UUK, UUL or UUM without UE1) |
| 6 |
0.35 WH |
7066 |
Entertainment Remote Enable Signal |
| 7 |
0.35 YE |
6817 |
LED Backlight Dimming Control |
| 8 |
1 BK |
2550 |
Ground |
| 9 |
0.5 GY |
118 |
Left Front Speaker Output (-) (HP2 with UQ3) |
| 0.35 GY |
118 |
Left Front Speaker Output (-) (with UQ3, except HP2) |
| 0.35 D-GN |
1947 |
Left Front Low Level Audio Signal (-) (UQA or UQS) |
| 10 |
0.5 D-GN |
117 |
Right Front Speaker Output (-) (HP2 with UQ3) |
| 0.35 D-GN |
117 |
Right Front Speaker Output (-) (with UQ3, except HP2) |
| 0.35 OG/BK |
1546 |
Front Low Level Audio Signal (-) (UQA or UQS) |
| 11 |
0.5 BARE |
2011 |
Drain Wire (UQA or UQS) |
| 12 |
- |
- |
Not Used |
| 13 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 14 |
- |
- |
Not Used |
