Power Steering Assist Motor X2 (HP2)
 Courtesy of
|
Connector Part Information
- Harness Type: Steering Gear Sensor
- OEM Connector: 6189-0187
- Service Connector: 19167001
- Description: 4-Way F 090 Class II Series, Sealed (D-GY)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - See Part Catalog
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 8100-0594/6
- Core/Insulation Crimp: E/1
|

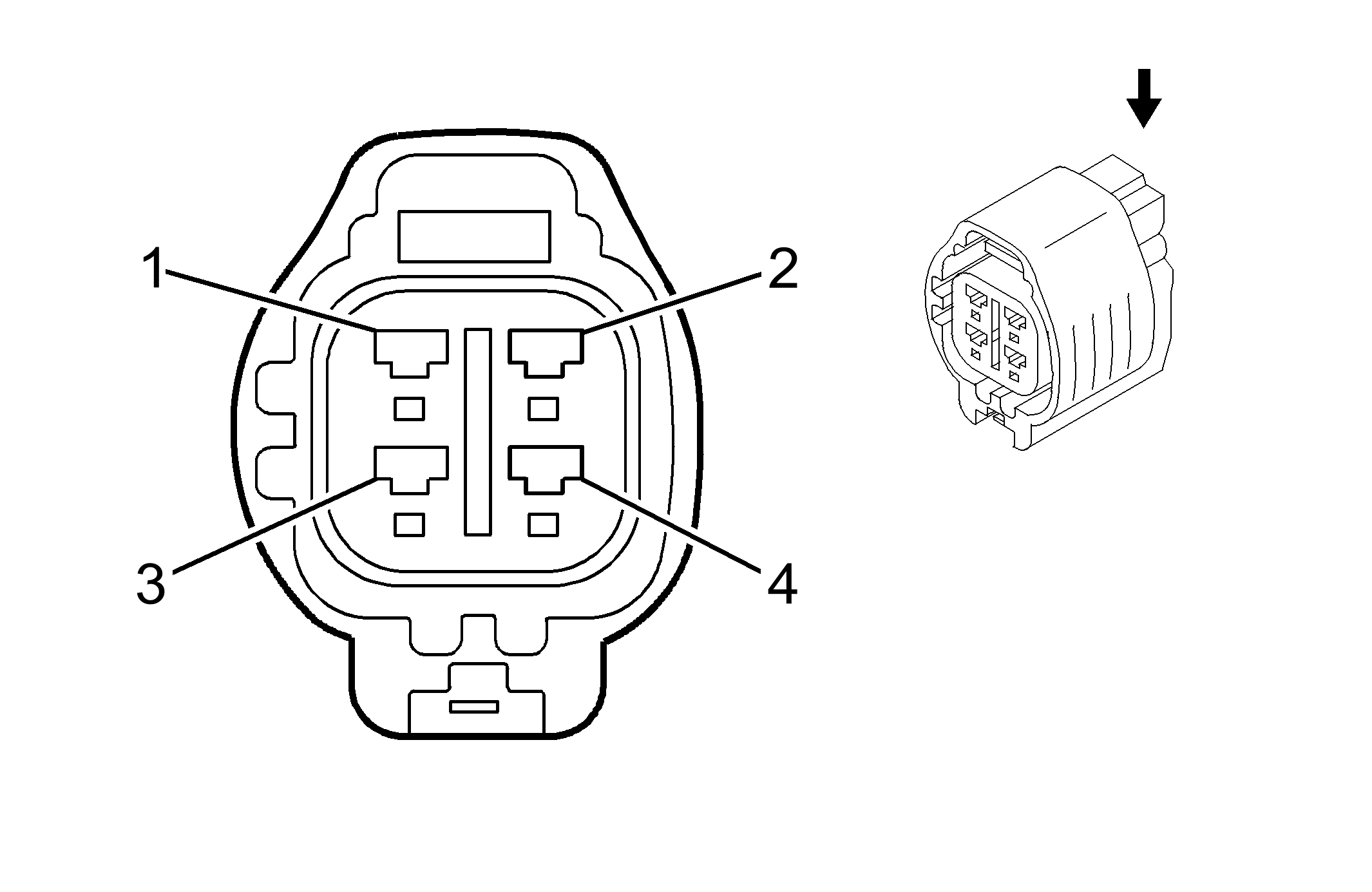

Power Steering Assist Motor X2 (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
WH |
- |
Motor Resolver SIN |
| 2 |
BK |
- |
5-Volt Reference |
| 3 |
L-GN |
- |
Low Reference |
| 4 |
RD |
- |
Motor Resolver COS |
