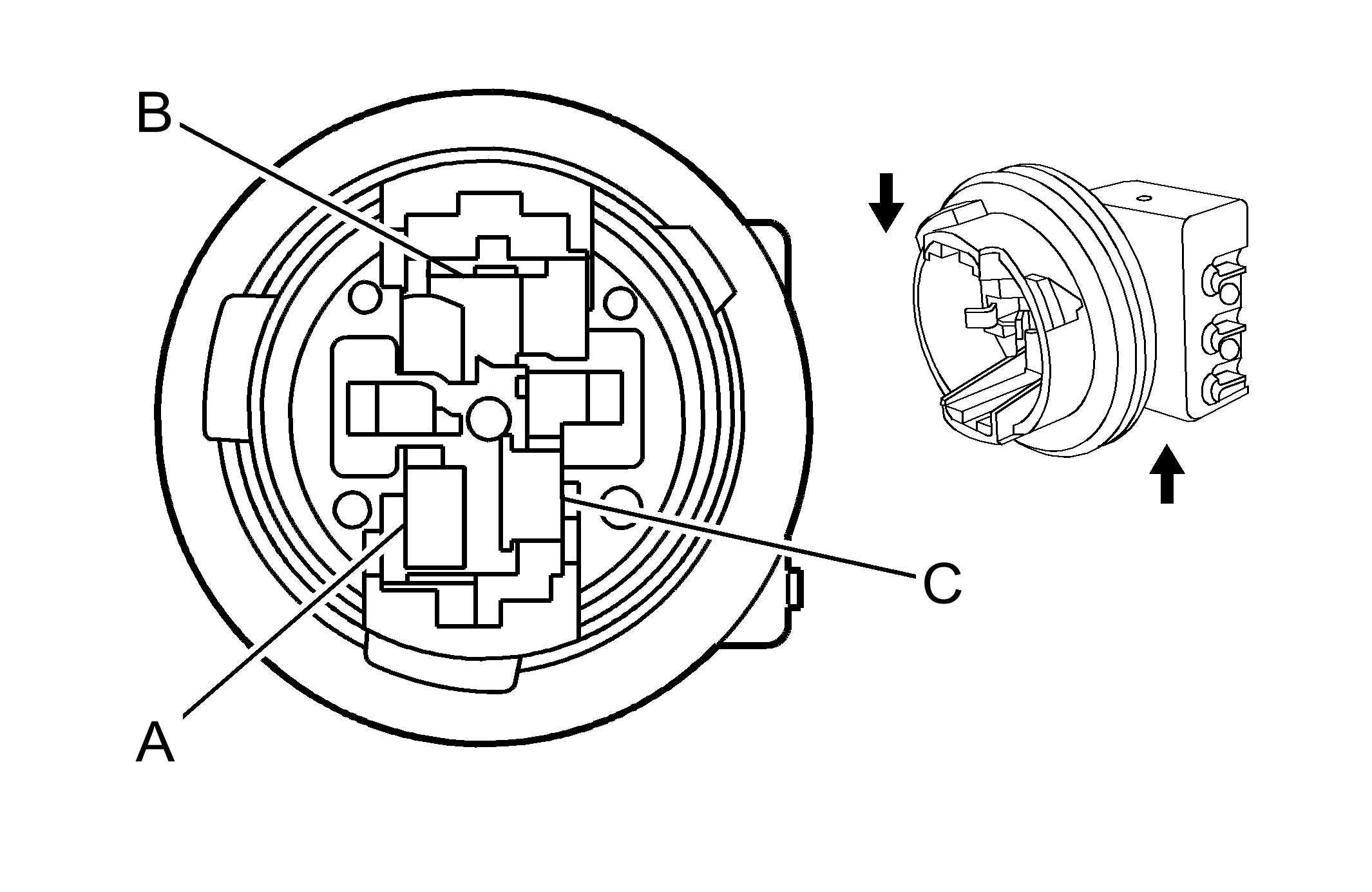

Park/Turn Signal Lamp- Right (X88)
 Courtesy of
|
Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: 1013509
- Service Connector: Service by Harness- See Part Catalog
- Description: 3-Way F Lamp Socket Base W3, Sealed (BN)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Test Lamp
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
|
Park/Turn Signal Lamp- Right (X88)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 L-BU/WH |
1315 |
Right Front Turn Signal Lamp Control |
| B |
0.8 BN |
2509 |
Right Front Park Lamp Control |
| 0.35 BN |
2509 |
Right Front Park Lamp Control |
| C |
0.8 BK |
150 |
Ground |
| 0.35 BK |
150 |
Ground |
