Park/Turn Signal Lamp- Left (Z88)
 Courtesy of
|

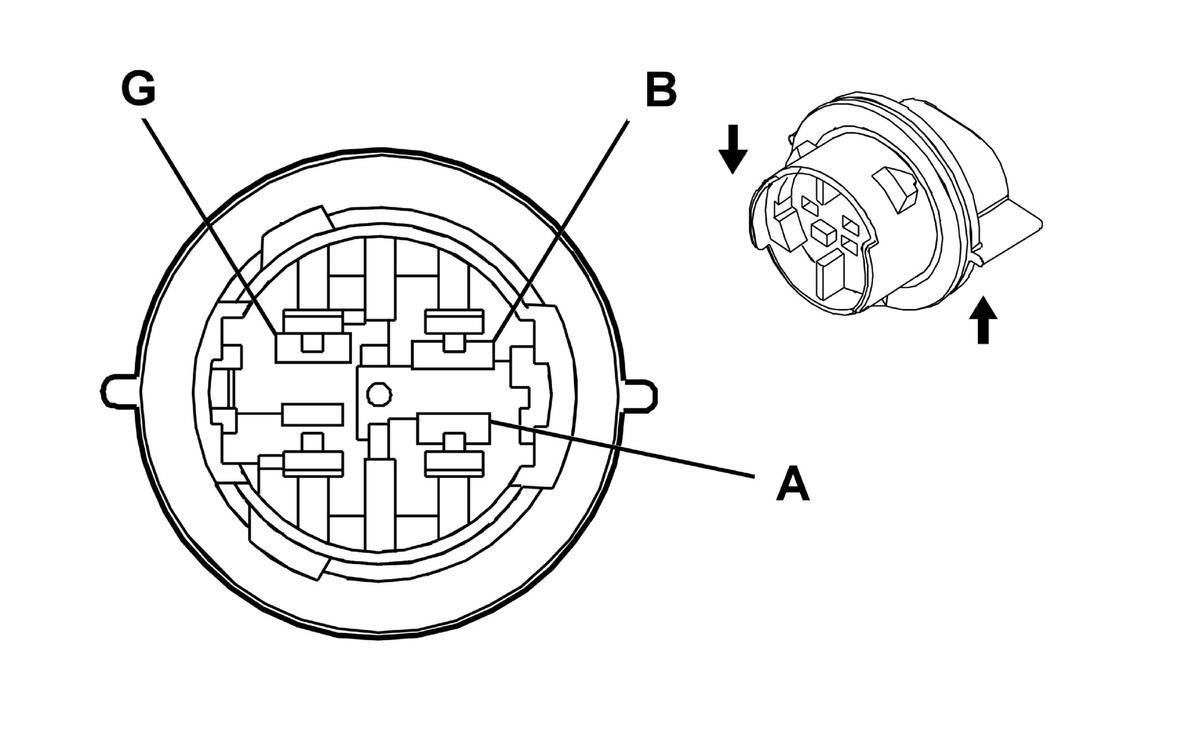

Connector Part Information
- Harness Type: Left Front Lamp
- OEM Connector: 16530670
- Service Connector: Service by Harness- See Part Catalog
- Description: 3-Way F Lamp Socket, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Test Lamp
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
|
Park/Turn Signal Lamp- Left (Z88)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 BN |
2509 |
Left Front Park Lamp Control |
| 0.35 BN |
2509 |
Left Front Park Lamp Control |
| B |
0.8 L-BU |
1314 |
Left Front Turn Signal Lamp Control |
| G |
1 BK |
150 |
Ground |
| 0.35 BK |
150 |
Ground |
