SES Lamp P0171 P0174 (PIP5341)
Publication date: 2015-10-26Reference number: PIP5341
SES LAMP P0171 P0174
TECHNICAL SERVICE BULLETIN
| Affected Model(s): | 2007 - 2014 Cadillac Escalade 2007 - 2013 Chevrolet Avalanche, Silverado 2007 - 2014 Chevrolet Suburban, Tahoe 2007 - 2016 Chevrolet Silverado HD 2007 - 2015 GMC Sierra 2007 - 2014 GMC Yukon 2007 - 2016 GMC Sierra HD With V-8 engine 4.8L L20 5.3L LC9, LMF, LMG, LY5 6.0 L76, L96, LC8, LY6, LZ1 6.2 L9H, L92 |
SERVICE INFORMATION
The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.
CONDITION/CONCERN
Customer concern of the engine runs and idles rough with P0171 and/or P0174 - Fuel trim system lean bank 1 or 2.
RECOMMENDATION/INSTRUCTIONS
Inspect the PCV tube for a vacuum leak on the left side of the engine.

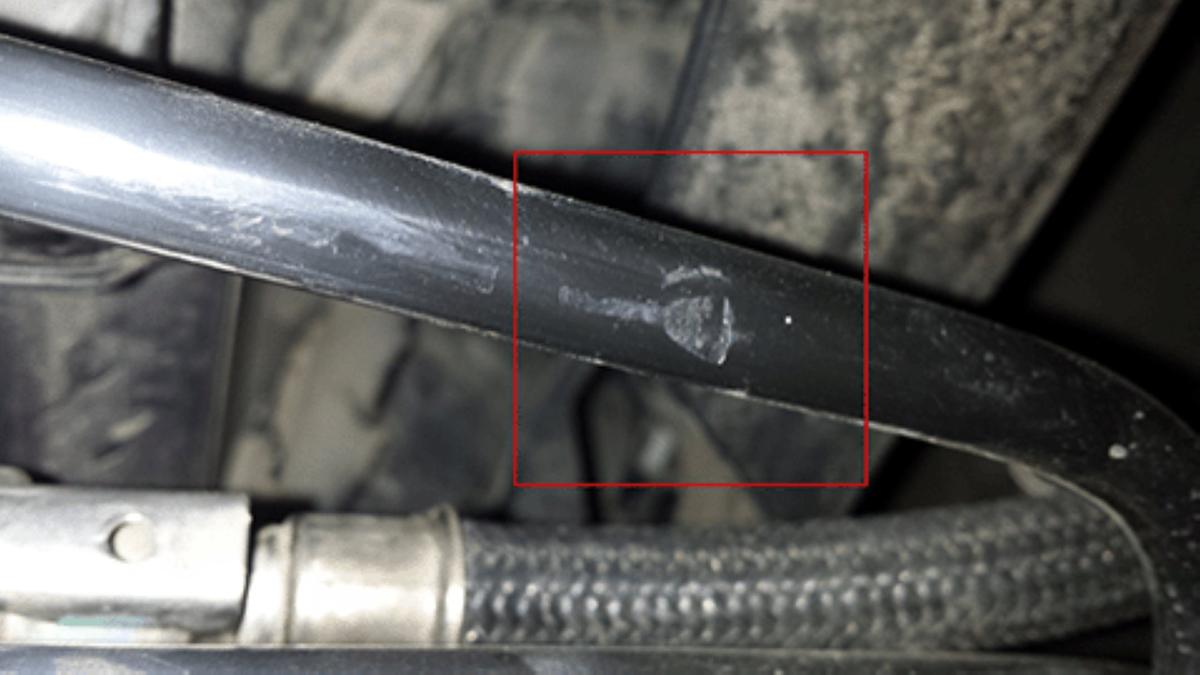

The engine cover can cause a rub through on the PCV tube located at the left rear of the intake manifold, just above the fuel line connection

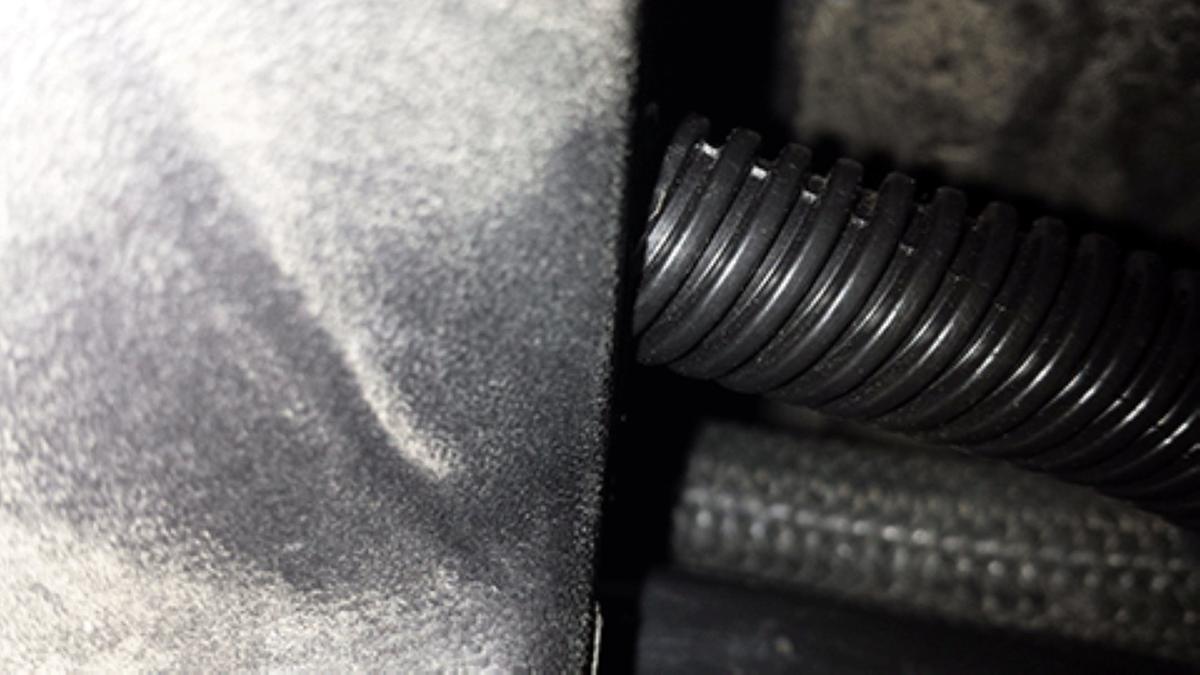

Replace PCV dirty air tube and cover it with conduit to protect from repeat damage. Reset idle and fuel trim retest for the concern.
WARRANTY INFORMATION
For vehicles repaired under warranty use:
| Labor Operation | Description | Labor Time |
|---|---|---|
| 4068490 | Positive Crankcase Ventilation Hose/Pipe/Tube Replacement | Use Published Labor Operation Time |
Please follow this diagnostic or repair process thoroughly and complete each step. If the condition exhibited is resolved without completing every step, the remaining steps do not need to be performed.
