SES Lamp Due To DTC P0016 Setting (PIP5102)
Publication date: 2013-03-26Reference number: PIP5102
SES LAMP DUE TO DTC P0016 SETTING
TECHNICAL SERVICE BULLETIN
Reference Number(s): PIP5102, Date of Issue:
March 26, 2013
| Affected Model(s): | 2012 2013- Cadillac CTS-V, Escalade Models 2012-2013- Chevrolet Avalanche, Caprice, Camaro, Express, Silverado, Suburban, Tahoe 2012 2013- GMC Savana, Sierra Models, Yukon Models with engine RPOs L20 L9H L94 LSA LC9 LMG LS3 L77 |
SERVICE INFORMATION
The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.
CONDITION/CONCERN
A vehicle may come in with a DTC P0016 setting and/or a crank no start, with no issue with the phaser or the wiring.
This is for vehicles built between 2/1/2012 - 2/12/2013.
RECOMMENDATION/INSTRUCTIONS
If the P0016 is setting and SI diagnosis does not isolate the concern.

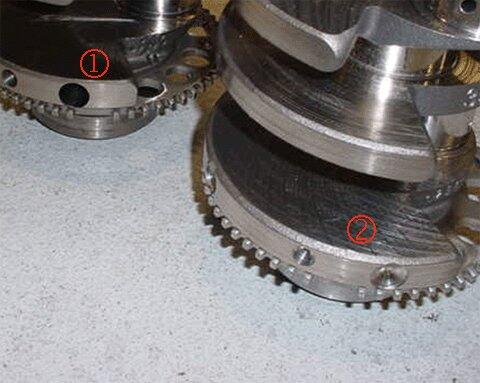

Use the pictures below to determine if the crankshaft reluctor has moved.
If you have verified the reluctor has moved, replace the Crankshaft.

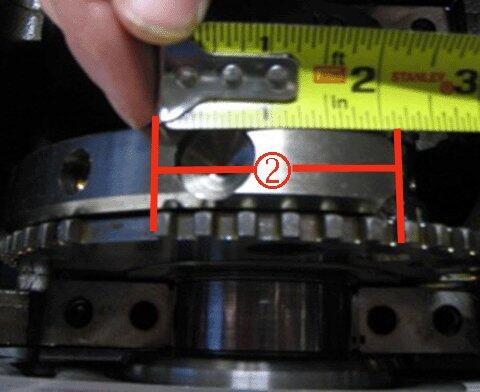

- Crankshaft with a moved reluctor

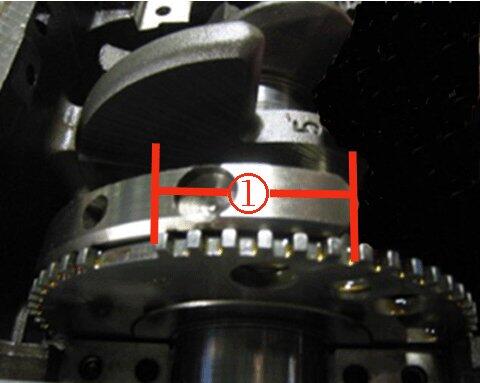

- Crankshaft with the correct reluctor position
WARRANTY INFORMATION
For vehicles repaired under warranty use:
| Labor Operation | Description | Labor Time |
|---|---|---|
| J1000 | Oil Pan Replacement | Use Published Labor Operation Time |
| J1200 | Crankshaft Replacement | Use Published Labor Operation Time |
Please follow this diagnostic or repair process thoroughly and complete each step. If the condition exhibited is resolved without completing every step, the remaining steps do not need to be performed.
