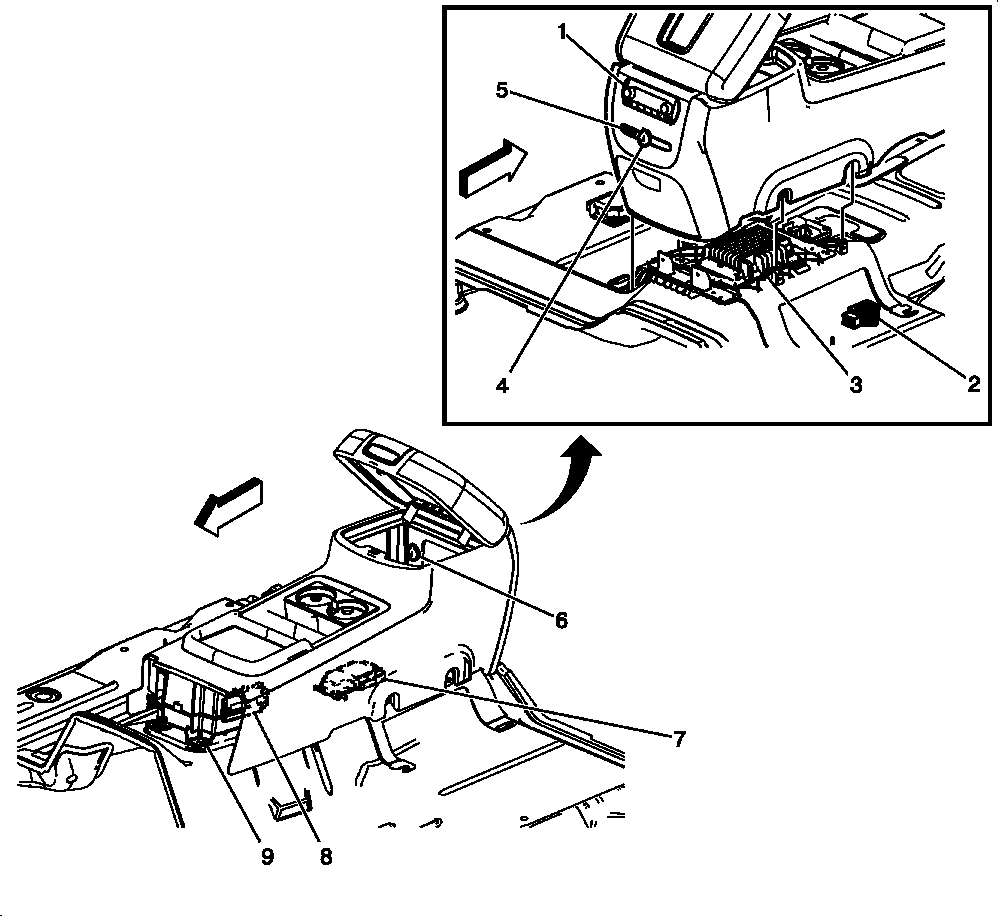

Front Floor Console Components (D07, without STZ or Y91)
Front Floor Console Components (D07, without STZ or Y91)
| Component Name | Callout |
|---|---|
| Rear Seat Audio (RSA) Control (UK6) | 1 |
| Yaw and Lateral Accelerometer Sensor | 2 |
| Audio Amplifier (UQA or UQ3) | 3 |
| Accessory Power Outlet- Console | 4 |
| Audio/Video Adapter (U42) | 5 |
| Accessory Power Outlet- Center Console Compartment | 6 |
| Inflatable Restraint Sensing and Diagnostic Module (SDM) | 7 |
| Digital Video Disc (DVD) Control Module | 8 |
| Speaker- Subwoofer (UQA) | 9 |
