Electrical Component Locations
>>
Electrical Component Locator - Ground Distribution Views
>>
Ground Views
>>
Chassis Component Grounds
Chassis Component Grounds
Chassis Component Grounds
Component Name
Callout
G400
1
G305 (EXP or HP2)
2
G300
3

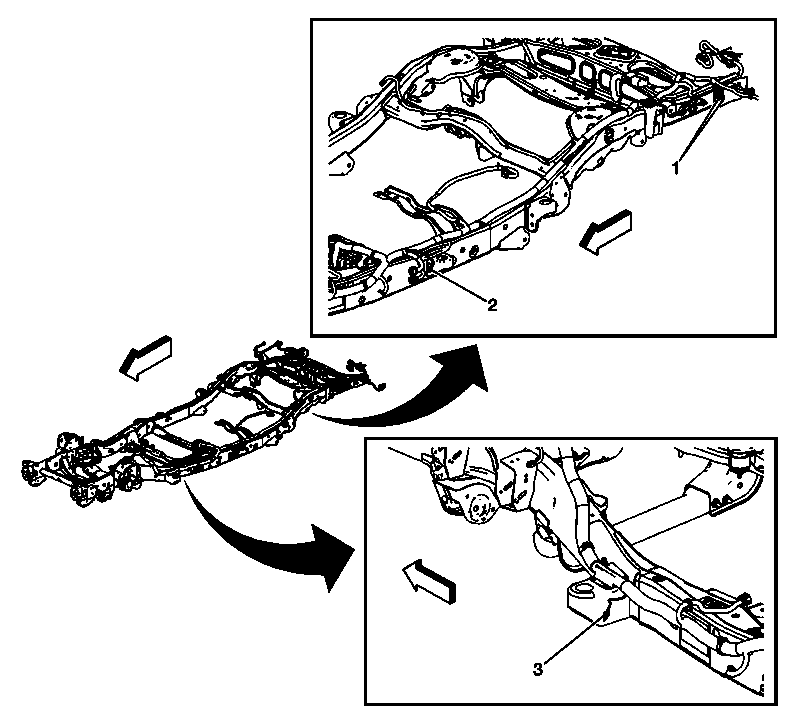

Fig 1: Chassis Component Grounds (Utility)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
