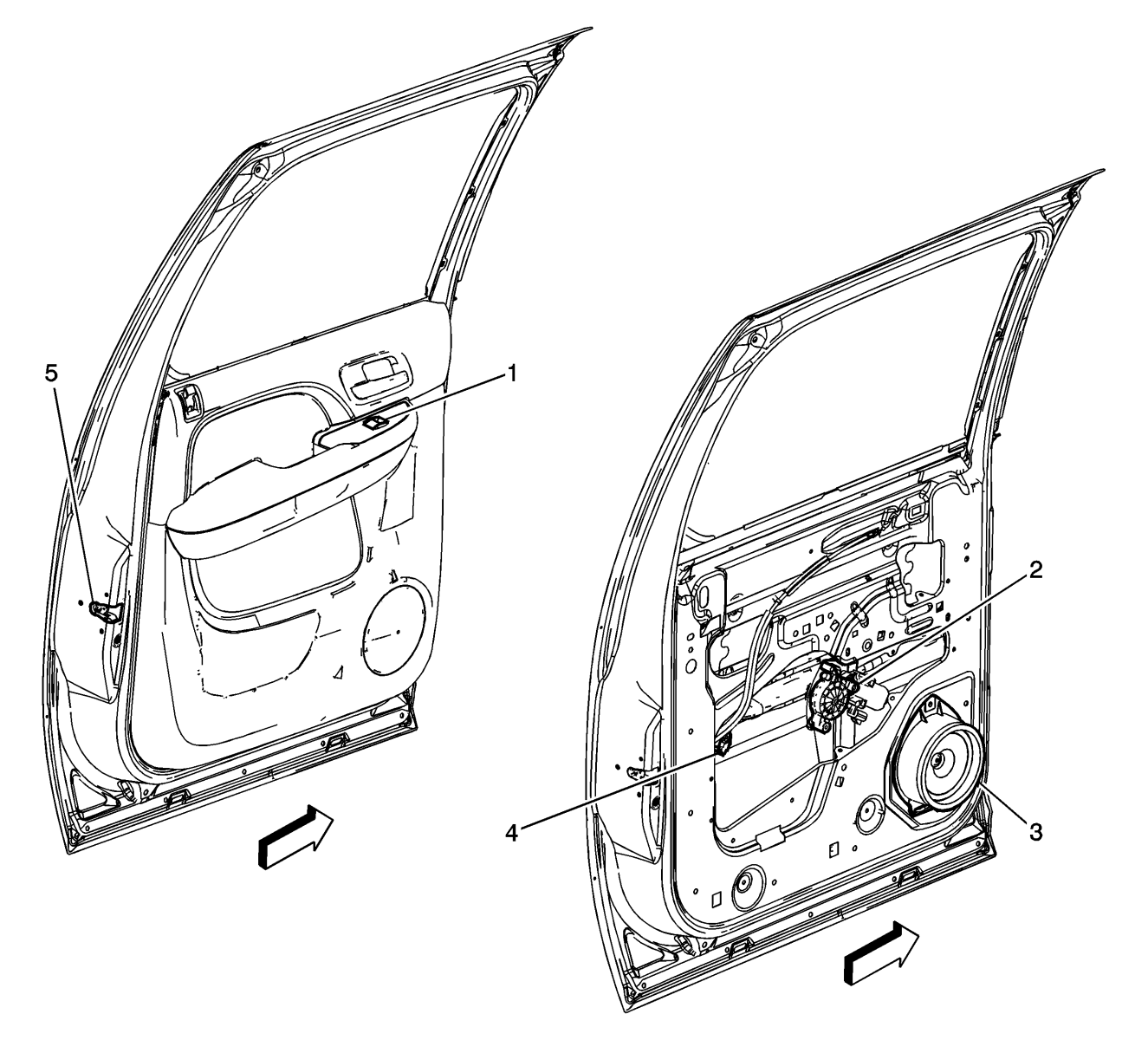

Left Rear Door Components
Left Rear Door Components
| Component Name |
Callout |
| Window Switch- Left Rear |
1 |
| Window Motor- Left Rear |
2 |
| Speaker- Left Rear |
3 |
| Inflatable Restraint Side Impact Sensor (SIS)- Left Rear (ASF) |
4 |
| Door Latch- Left Rear |
5 |
Courtesy of GENERAL MOTORS COMPANY
