Radiator Surge Tank Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

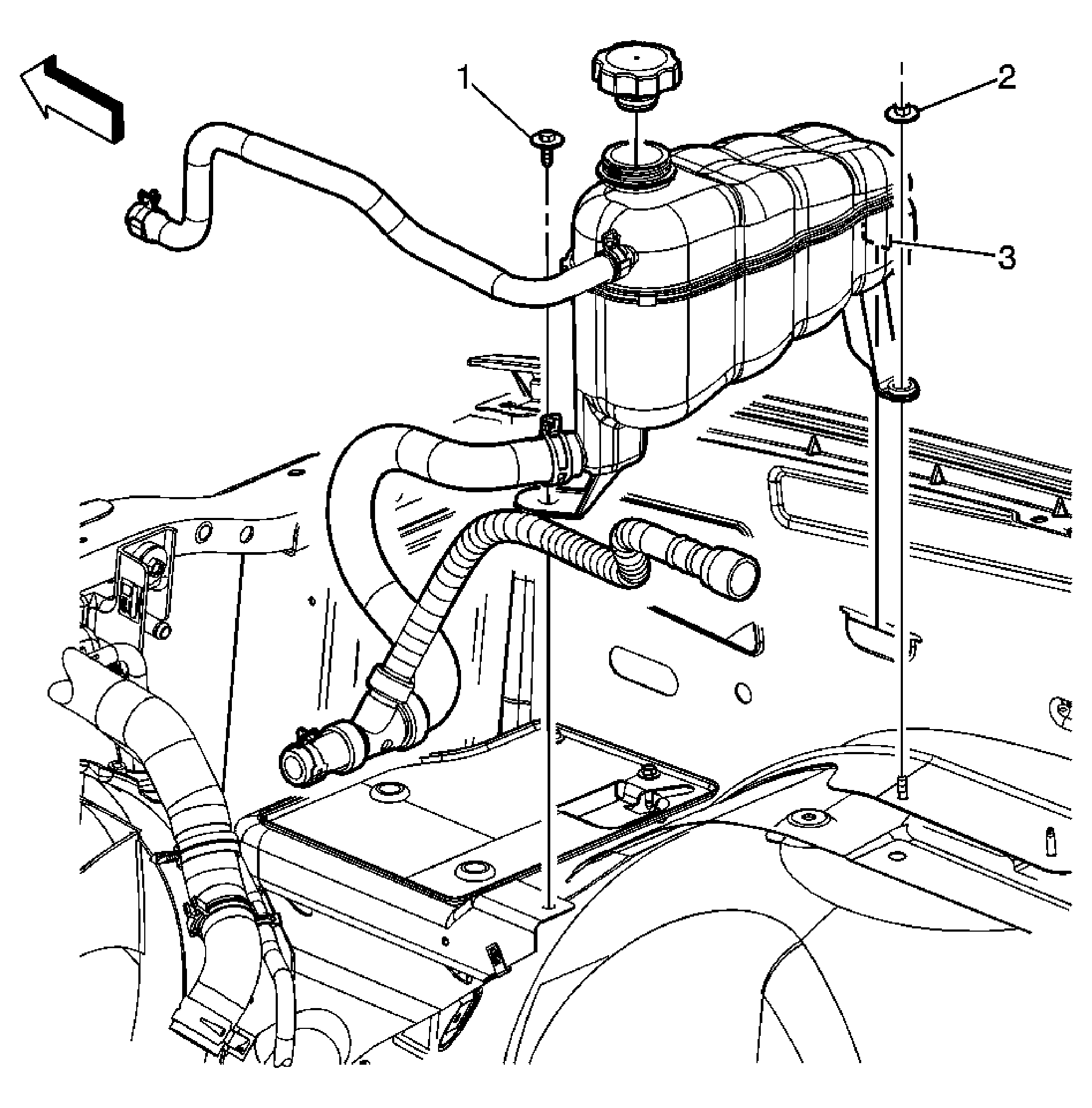

Fig 1: View Of Surge Tank, Nut & Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Surge Tank Bolt NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Surge Tank Nut Tighten: 10 N.m (89 lb in)
3	Surge Tank Tip: Remove the surge tank hoses from the surge tank.
