Brake Booster Vacuum Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

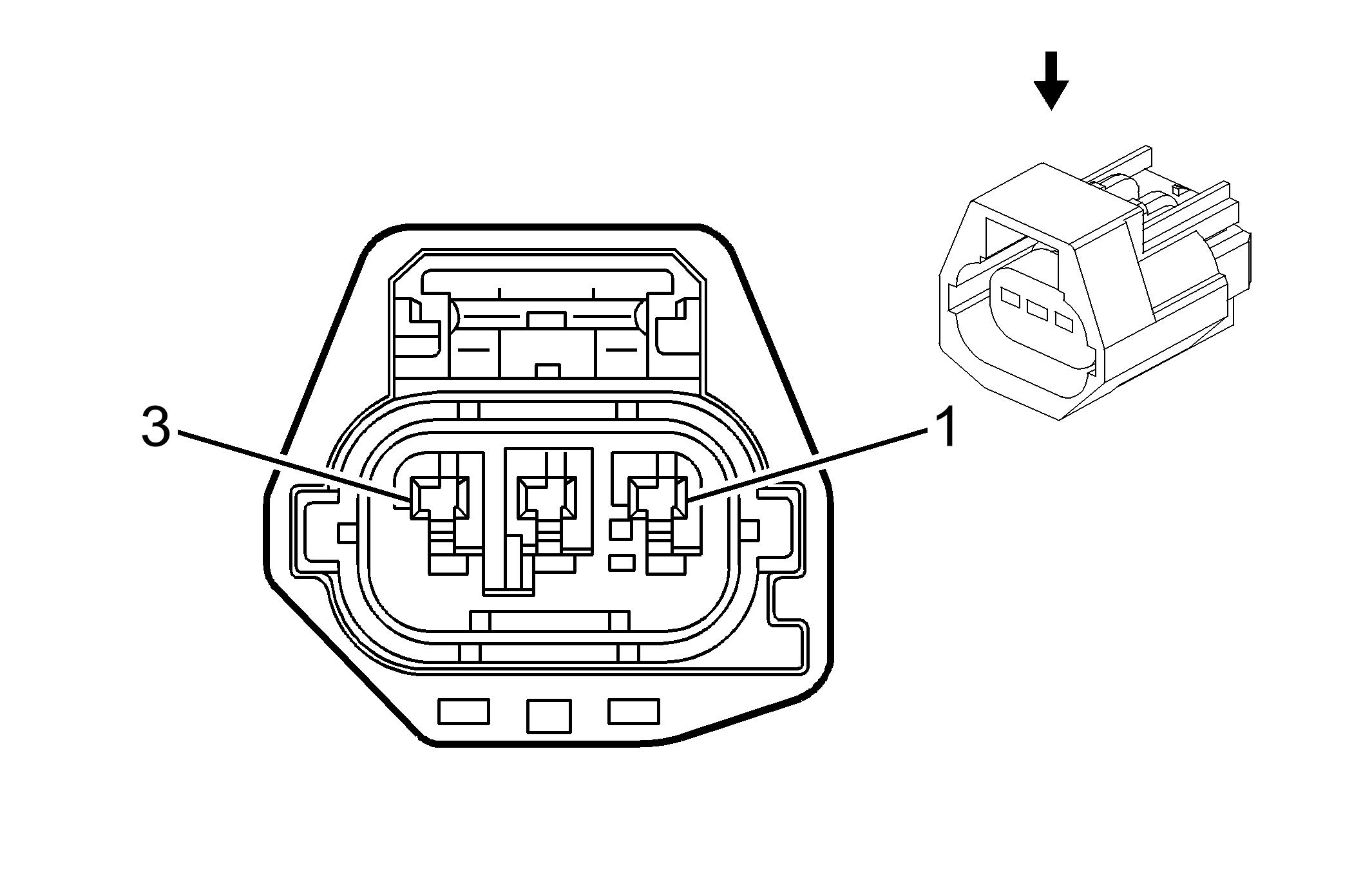

Fig 1: Brake Booster Vacuum Sensor Connector End View
GM1710995Courtesy of GENERAL MOTORS CORP.
Brake Booster Vacuum Sensor Connector Parts Information

Connector Part Information
  • OEM: 10769084
  • Service: 19115666
  • Description: 3-Way F 3P 1.5mm YESC Series (GY)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
Brake Booster Vacuum Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 OG 6030 Brake Vacuum Sensor Signal
2 YE/BK 6032 Low Reference
3 GY 6044 5-Volt Reference
