Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

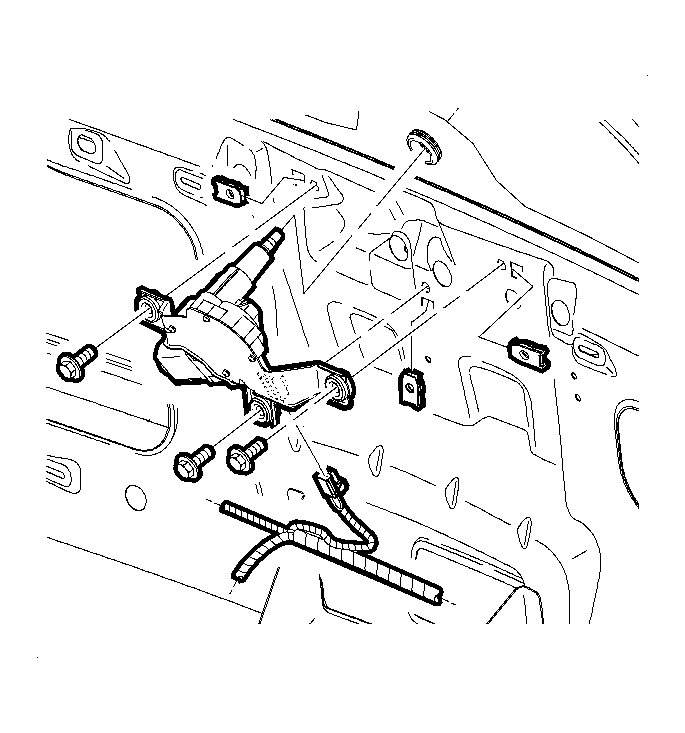

Fig 1: View Of Liftgate Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Install the rear wiper motor through the rear window grommet.

NOTE: Refer to Fastener Notice .

Install the wiper motor bolts.
Tighten: Tighten the bolts to 7 N.m (62 lb in).
Install the lift gate trim panel. Refer to Liftgate Trim Panel Replacement .
Install the wiper motor module. Refer to Rear Window Wiper Arm Replacement .
