Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the front door speaker assembly into position in the door.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: The tightening sequence MUST be followed.
Install the front door speaker assembly retaining screws in the following sequence:
1. The uppermost screw
2. The lowermost screw
3. The remaining screws in a criss-cross pattern
  Tighten

  Tighten the front door speaker assembly retaining screws in sequence to 2.5 N.m (22 lb in).

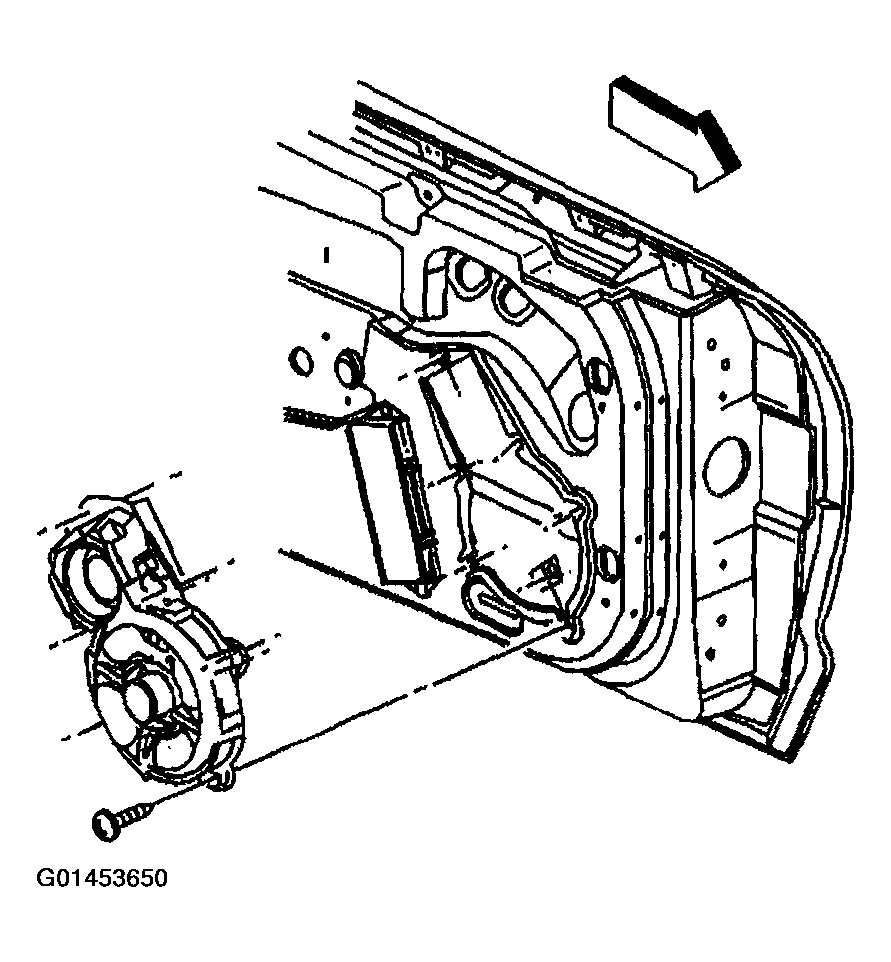

  Fig 1: Installing Front Door Speaker Assembly To Door
  Courtesy of GENERAL MOTORS CORP.
Connect the electrical/audio connector to the front door speaker assembly.
Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR in Doors.

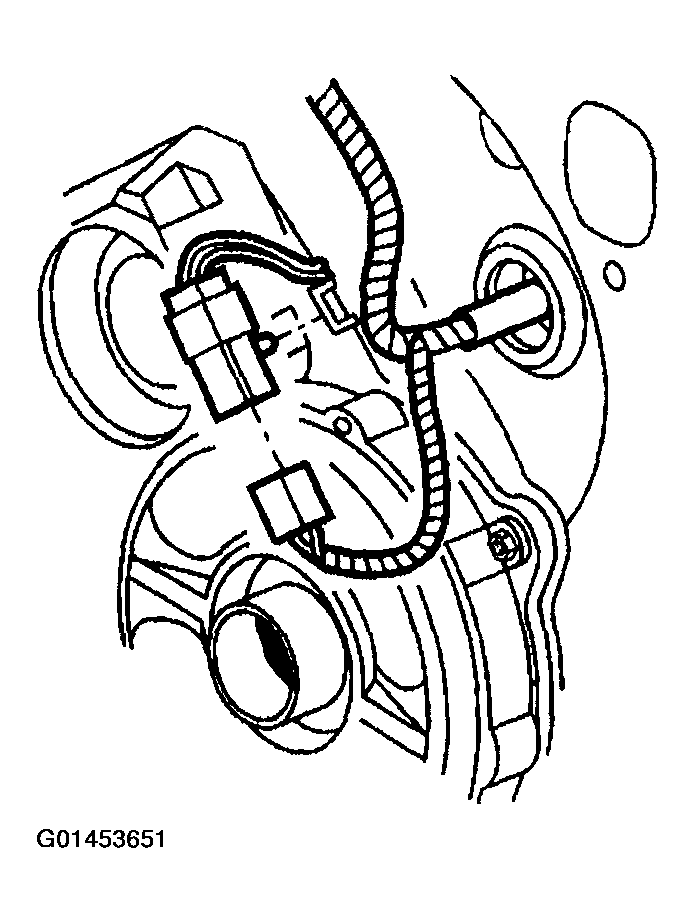

Fig 2: Connecting Electrical/Audio Connector To Front Door Speaker Assembly
Courtesy of GENERAL MOTORS CORP.
