Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood link assembly (6) to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt (5) holding the hood link assembly to the fender.

    Tighten

    1. Tighten the link assembly to the fender bolt to 25 N.m (18 lb ft).
  3. Install the fender bolt (7) holding the hood link assembly to the hood hinge.

    Tighten

    1. Tighten the hinge bolts to 25 N.m (18 lb ft).

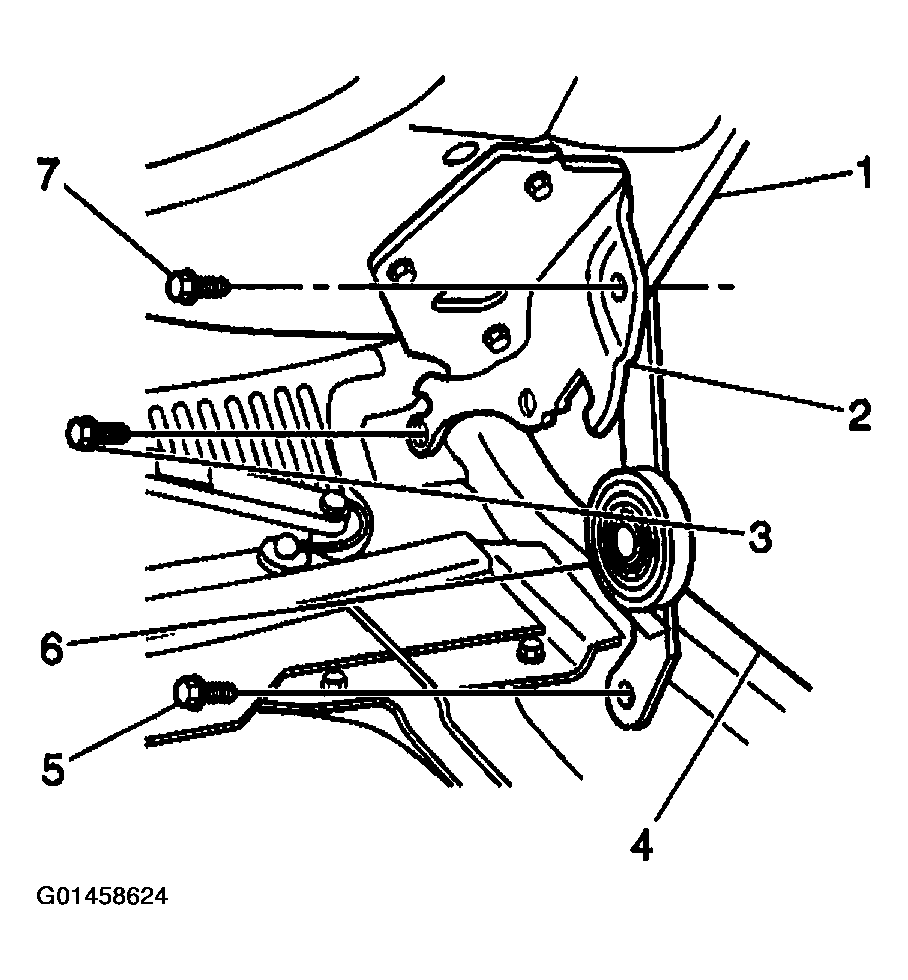

    Fig 1: Installing Hood Link Assembly Bolts
    G01458624Courtesy of GENERAL MOTORS CORP.
