Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do NOT swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock®, and "XM Theftlock®" will display.

Remove the right side junction block from the I/P.
Do not disconnect the electrical connectors.
Lower the I/P compartment door to the full open position.
From the junction block opening, remove the two retaining screws.
Pull the receiver and bracket assembly from the I/P compartment opening.
Disconnect the wire connector (1).

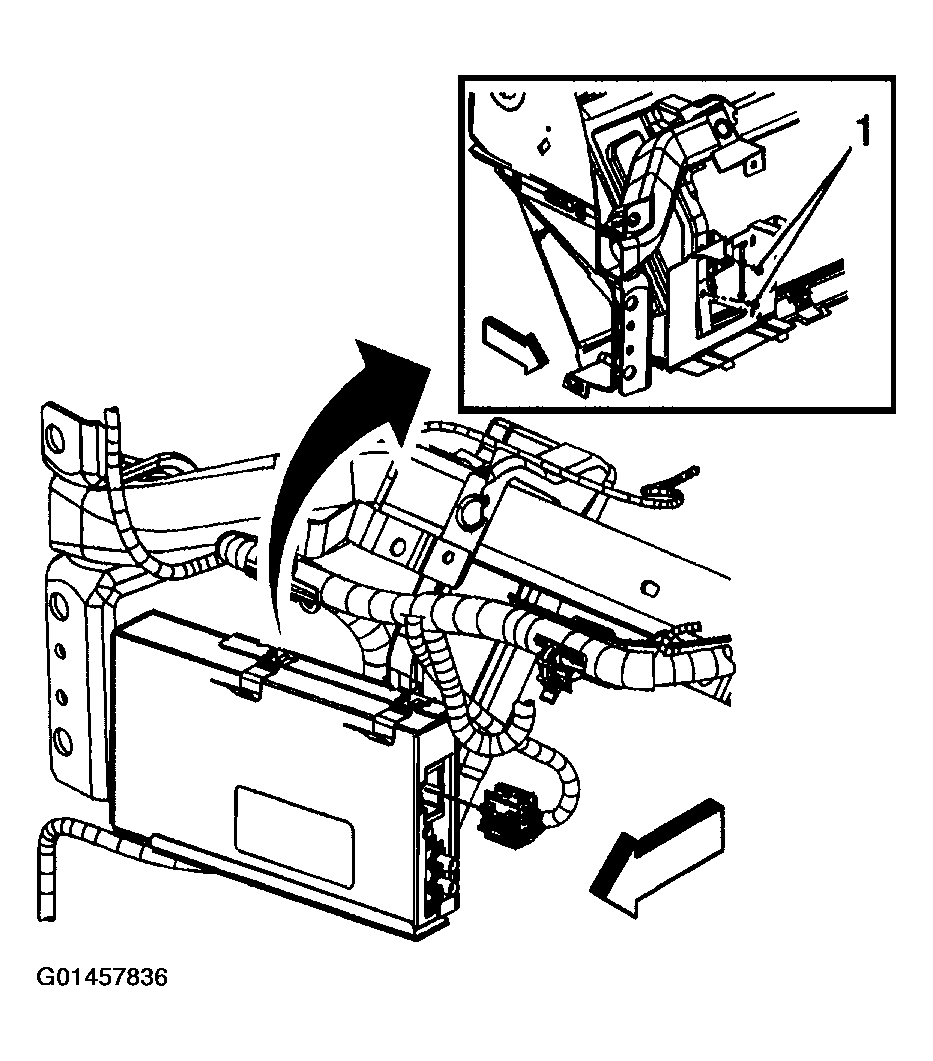

Fig 1: Removing Receiver & Bracket Assembly From I/P

Courtesy of GENERAL MOTORS CORP.

Disconnect the coaxial cables from the receiver.
Remove the receiver and bracket assembly from the I/P.
