Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster bezel.
  2. Remove the 3 screws (1).

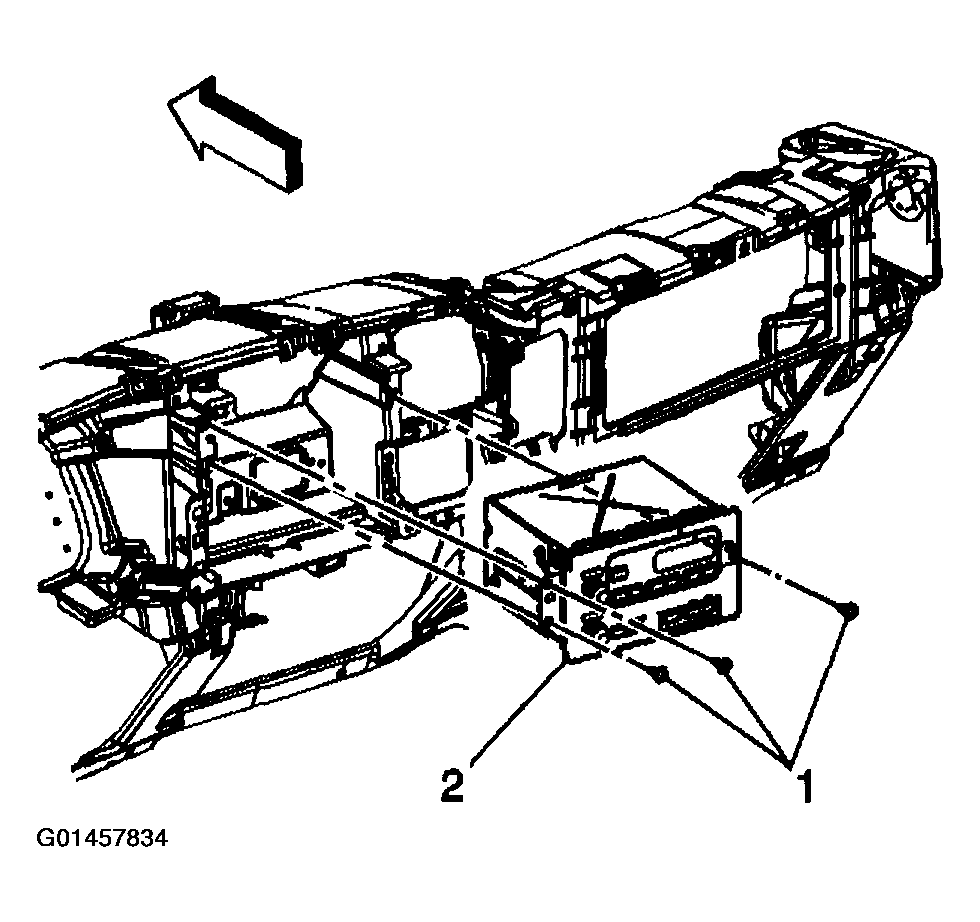

    3. Fig 1: Removing Radio Assembly From I/P
    G01457834Courtesy of GENERAL MOTORS CORP.
  3. Pull out the radio assembly slightly in other to gain access to the connectors.
  4. Disconnect the wire connectors.
  5. Disconnect the coaxial cable from the radio.
  6. Remove the radio assembly from the I/P.
