Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Components of the DVD player cannot be serviced separately. Replace as an assembly.

Move the screen to the open position.
Remove the rear screw cover using a flat bladed tool.
Remove the four retaining bolts (2).

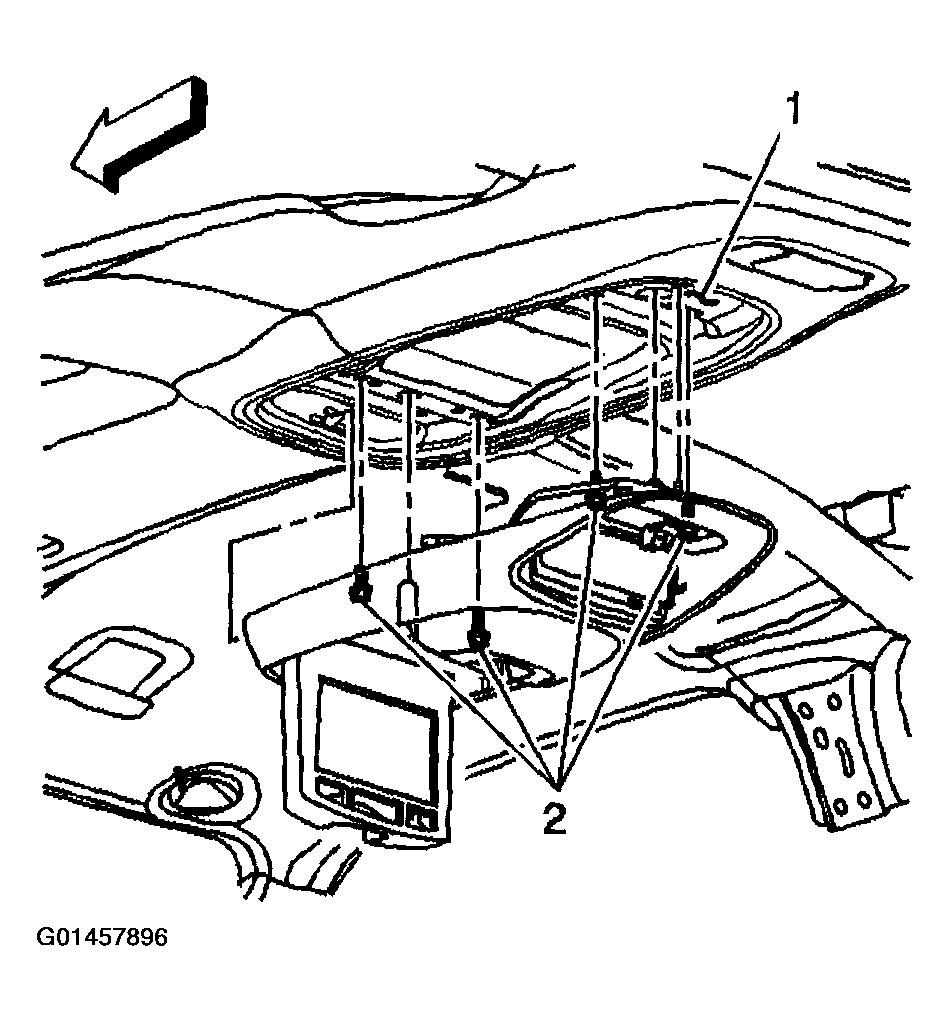

Fig 1: Removing Four Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Insert the J 38778 between the headliner and the DVD player assembly.

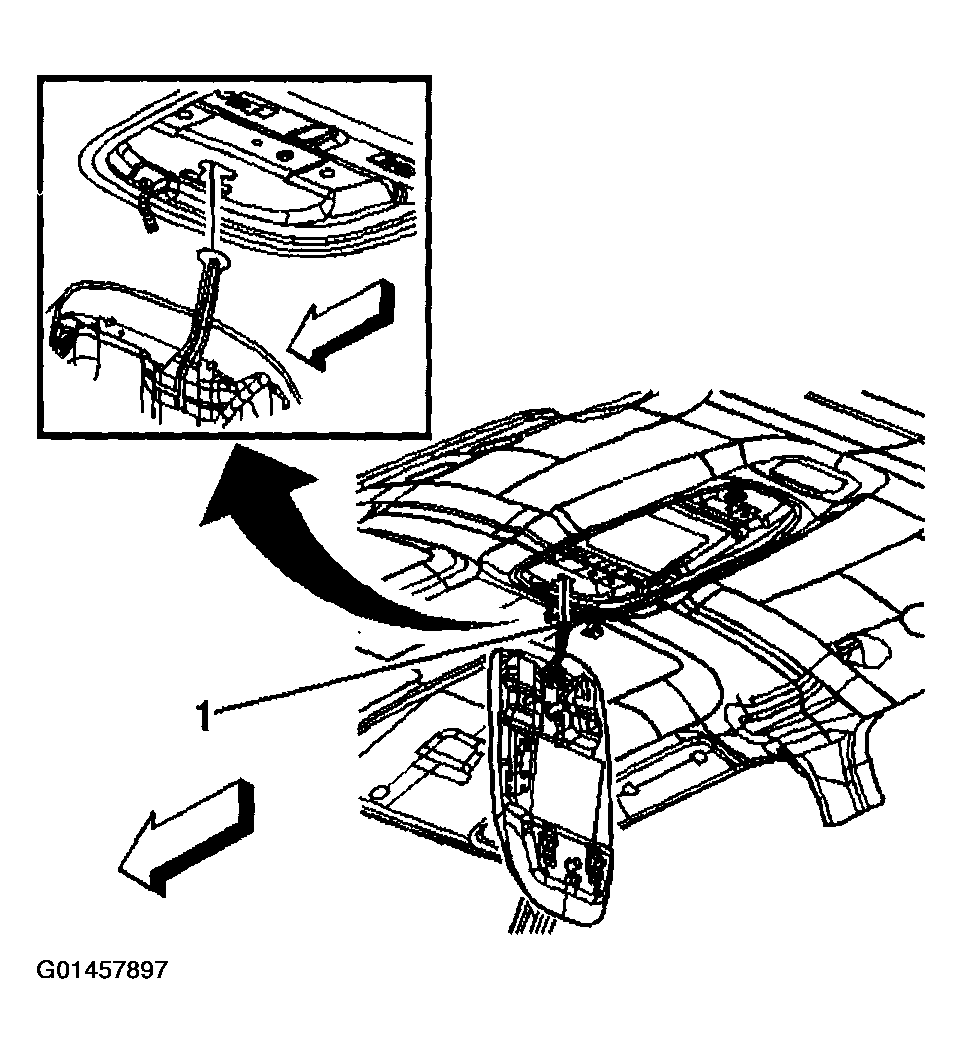

Fig 2: Removing DVD Player Assembly

Courtesy of GENERAL MOTORS CORP.

With 1 hand holding the DVD player assembly, pry the retainer from the bracket.
Allow the DVD player assembly to come to rest on the hook.
Important: Observe the routing of the wiring harness (2).
Disconnect the wire connector (1).

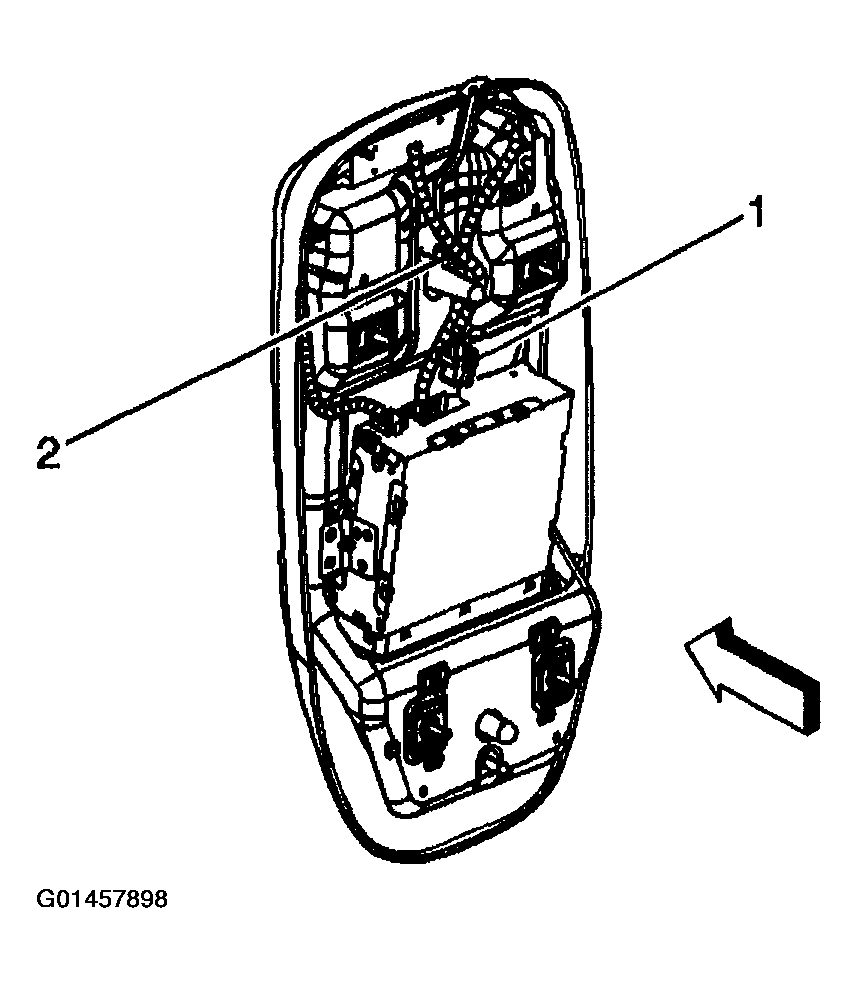

Fig 3: Disconnecting Wire Connector

Courtesy of GENERAL MOTORS CORP.

Slightly lift up the DVD player assembly so that the hook can be removed from its resting position.
Remove the DVD player from the vehicle.
