GPS Antenna Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Front scuff plate (Passenger's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (Passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
5. Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION .)
6. PJB (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
REMOVAL ORDER OF GPS ANTENNA

1 Screw

2 GPS antenna
Install in the reverse order of removal.

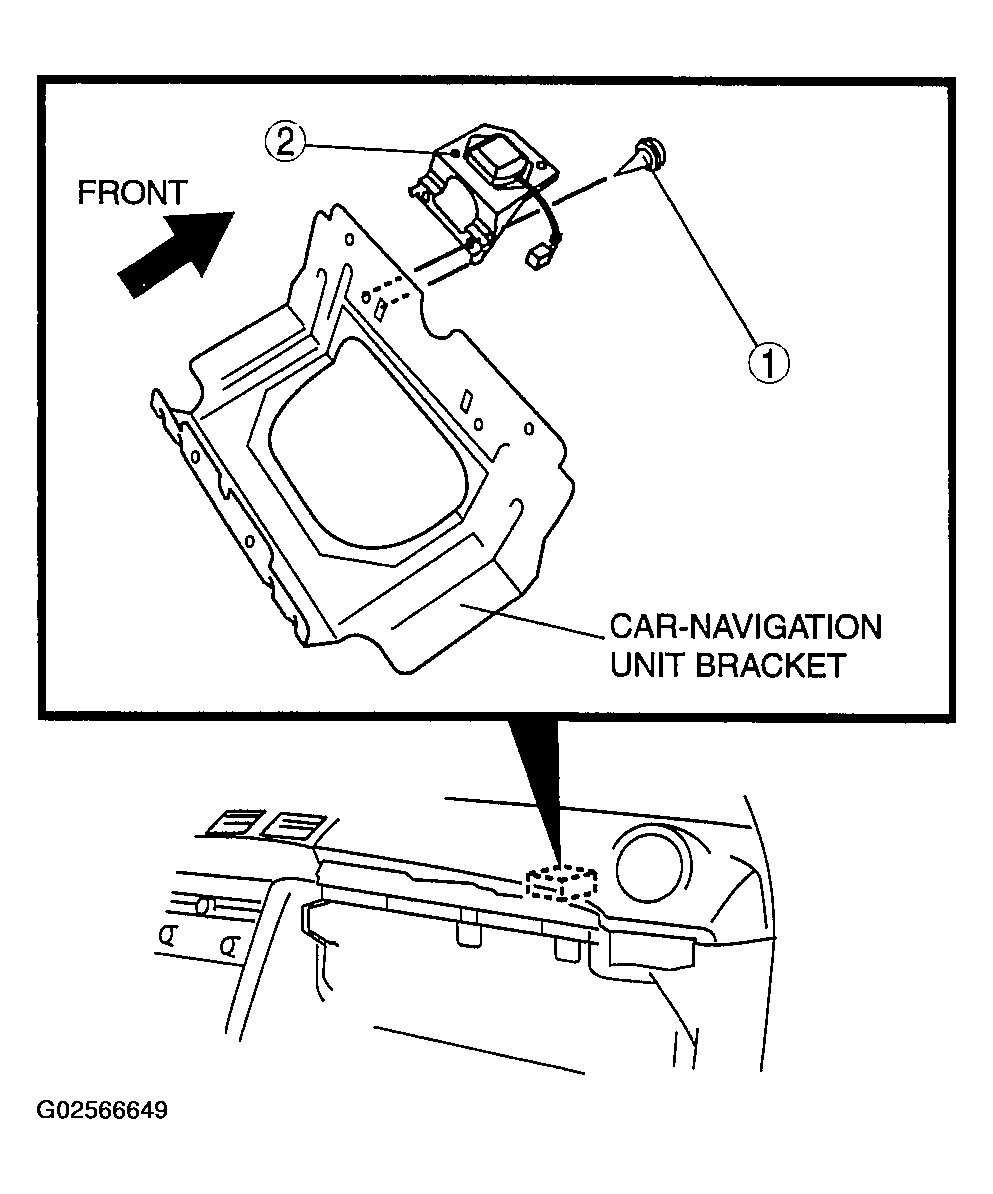

Fig 1: Removing/Installing GPS Antenna
Courtesy of MAZDA MOTORS CORP.

1	Screw
2	GPS antenna
