Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector, if equipped.
  2. Install the sunshade to the vehicle.

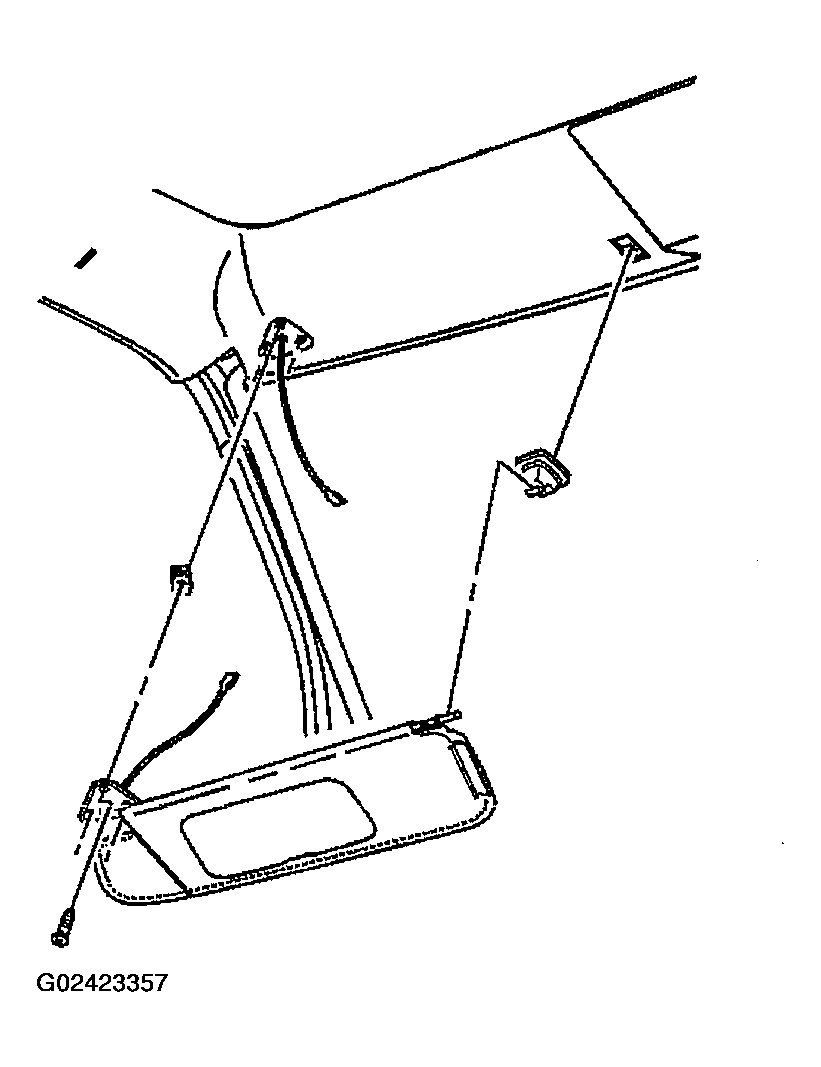

    Fig 1: Connecting Electrical Connector & Installing Sunshade
    G02423357Courtesy of GENERAL MOTORS CORP.
  3. Install the screws in order to retain the sunshade to the vehicle.
  4. Clip the sunshade to the support.
    Fig 2: Installing Sunshade Screws
    G02423358Courtesy of GENERAL MOTORS CORP.
