Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .
  2. Remove the front door lower pillar garnish molding. Refer to Garnish Molding Replacement - Lower Pillar .
  3. Grasp and gently pull up on the front door stepwell mat in order to release the retaining clips.
  4. Disconnect the electrical connector for the stepwell lamp.
  5. Remove the front door stepwell mat from the vehicle.
  6. Inspect the front door stepwell mat for broken or missing retaining clips. Replace the retaining clips as needed.

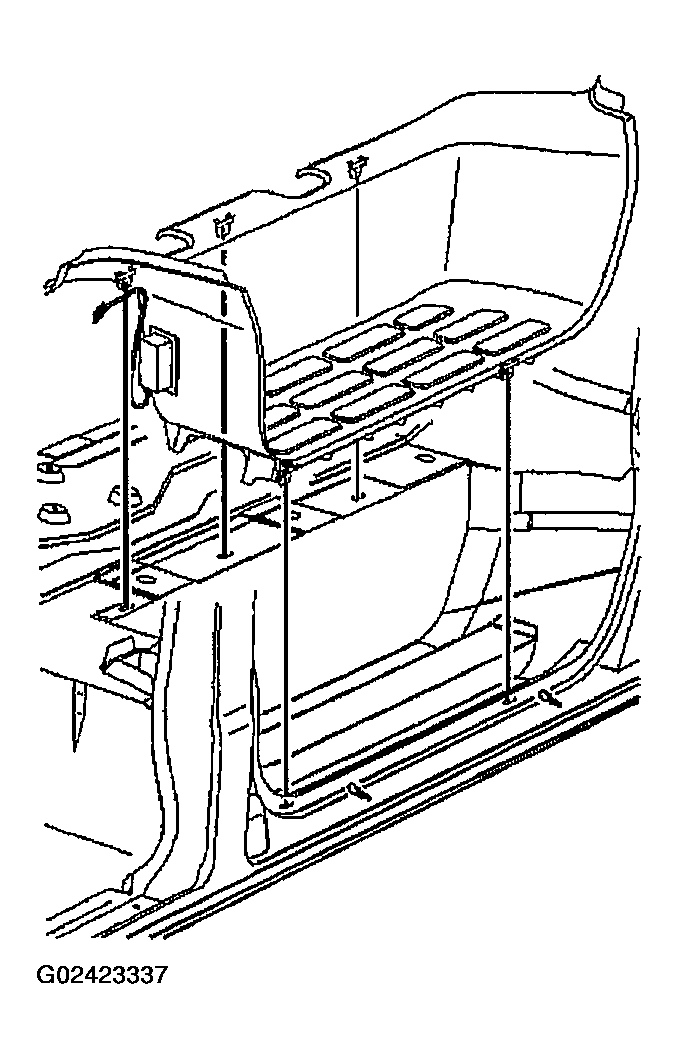

    Fig 1: Removing Stepwell Mat
    G02423337Courtesy of GENERAL MOTORS CORP.
