Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front passenger seat. Refer to SEAT REPLACEMENT .
  2. Remove the instrument panel lower extension, if equipped. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
  3. Remove the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
  4. Remove the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
  5. Release the engine cover retainers (1, 3).
  6. Remove the engine cover from the vehicle (2).

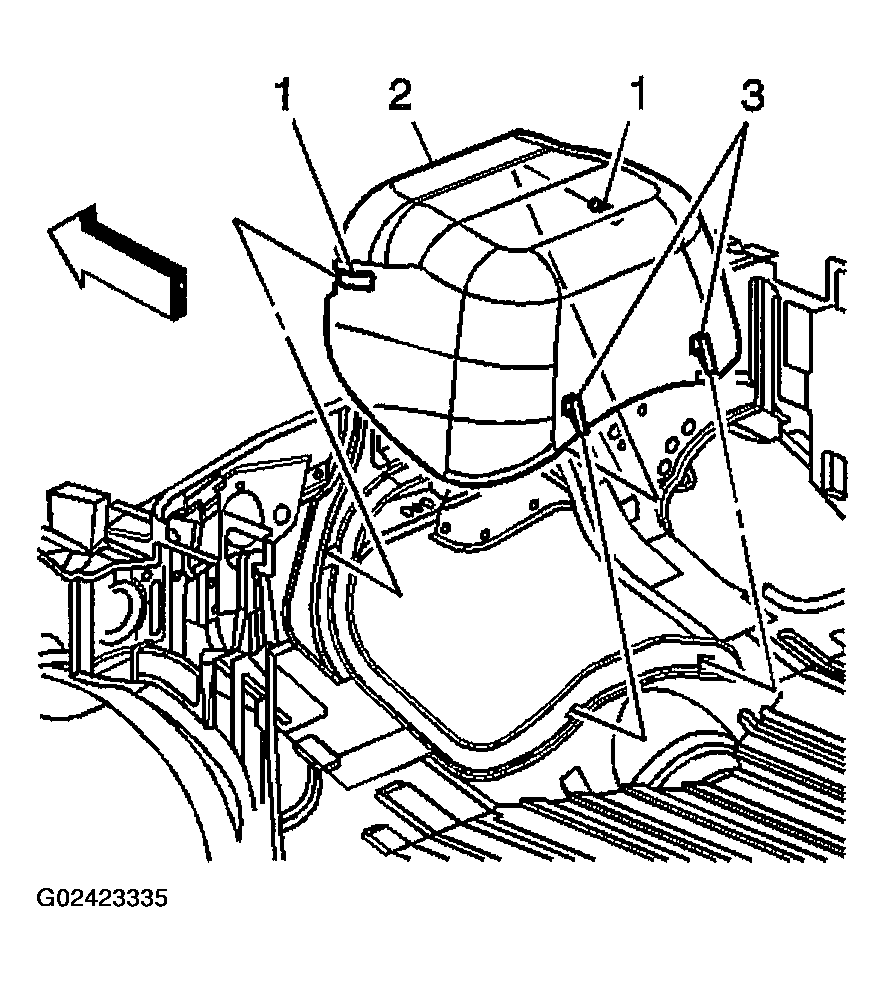

    Fig 1: Removing Engine Cover
    G02423335Courtesy of GENERAL MOTORS CORP.
