Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

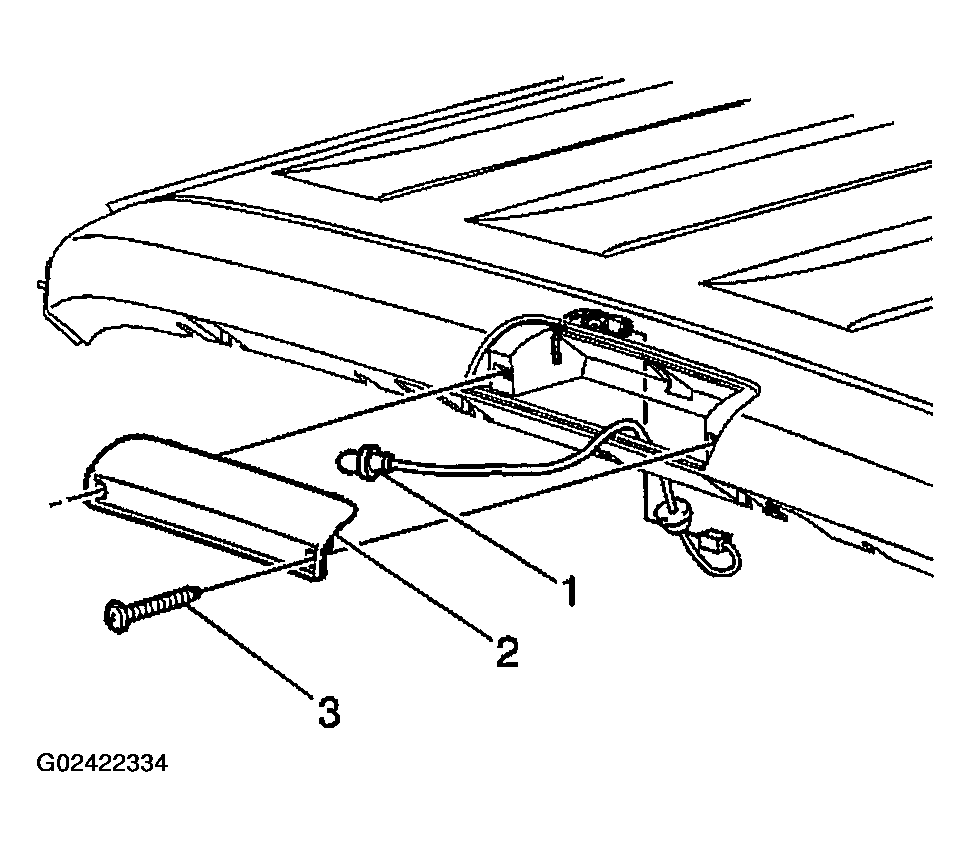

- Install the bulb (1) into the socket.
- Connect the bulb socket (1) into the center high mounted stop lamp lens.
- Install the center high mounted stop lamp lens (2).CAUTION: Refer to FASTENER NOTICE .
- Install the center high mounted stop lamp lens retaining screws (3).
Tighten
Tighten the center high mounted stop lamp lens screws to 1.5 N.m (13 lb in).
