Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the headlamp.
  2. Rotate the bulb clockwise in order to engage the bulb in the headlamp.
  3. Connect the electrical connector to the headlamp bulb.

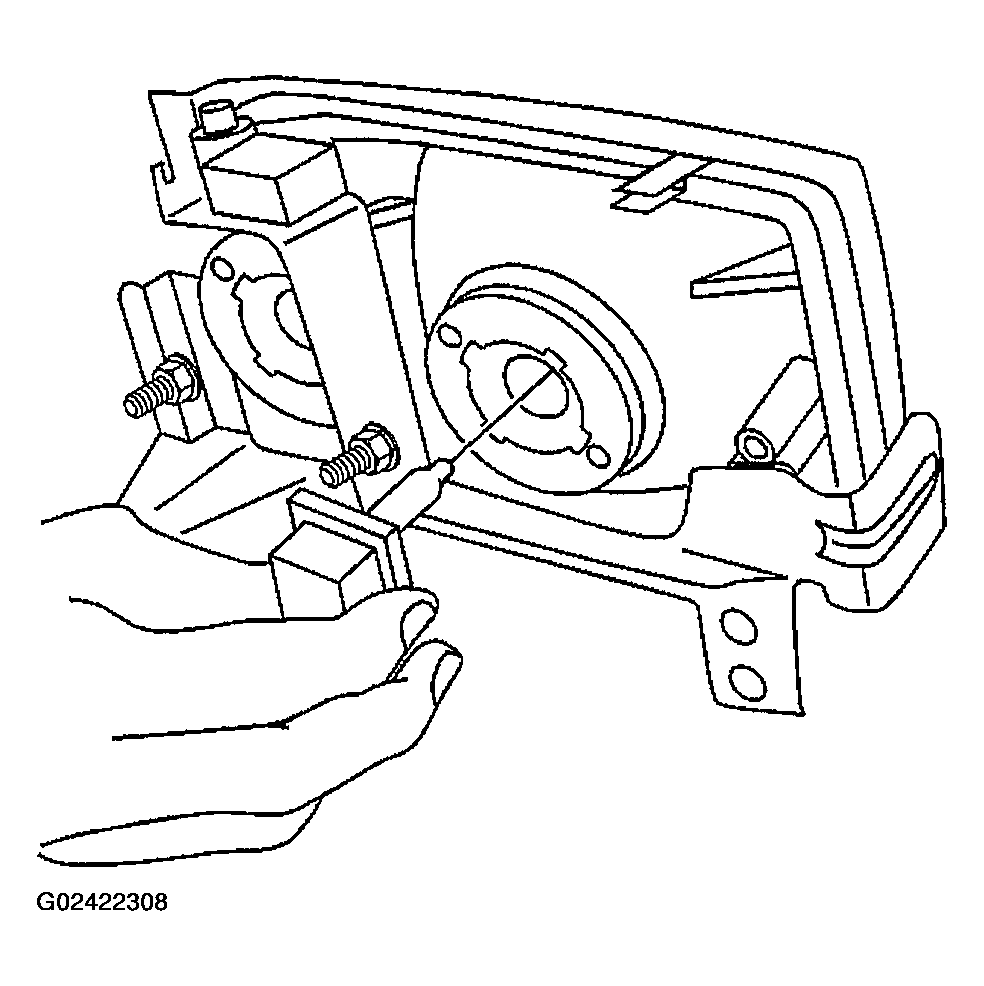

    Fig 1: Installing Headlamp Bulb
    G02422308Courtesy of GENERAL MOTORS CORP.
