Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator inlet hose (5).
  2. Install the radiator inlet hose to the radiator.
  3. Install the radiator inlet hose to the thermostat housing.
  4. Position the hose clamp at the thermostat housing using the J 38185  .
  5. Position the hose clamp at the radiator inlet housing using the J 38185  .
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .

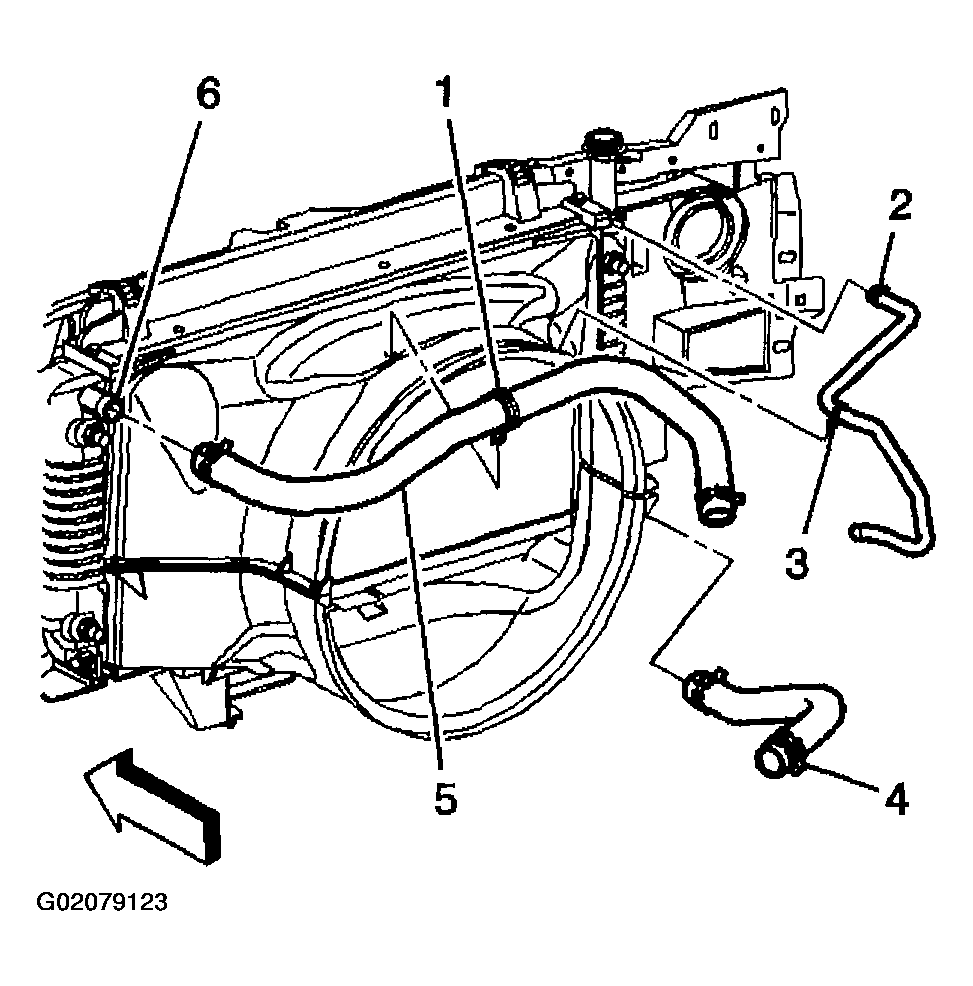

    Fig 1: Installing Radiator Inlet Hose
    G02079123Courtesy of GENERAL MOTORS CORP.
