Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Install the fan clutch to the fan blade.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the bolts to the fan clutch.
Tighten
Tighten the bolts to 25 N.m (18 ft lbs).
- Install the fan clutch assembly to the pulley.
- Install the J 38425
onto the fan clutch nut.
Install the J 41240 in order to secure the pulley.
Tighten
Tighten the nut to 95 N.m (70 ft lbs).

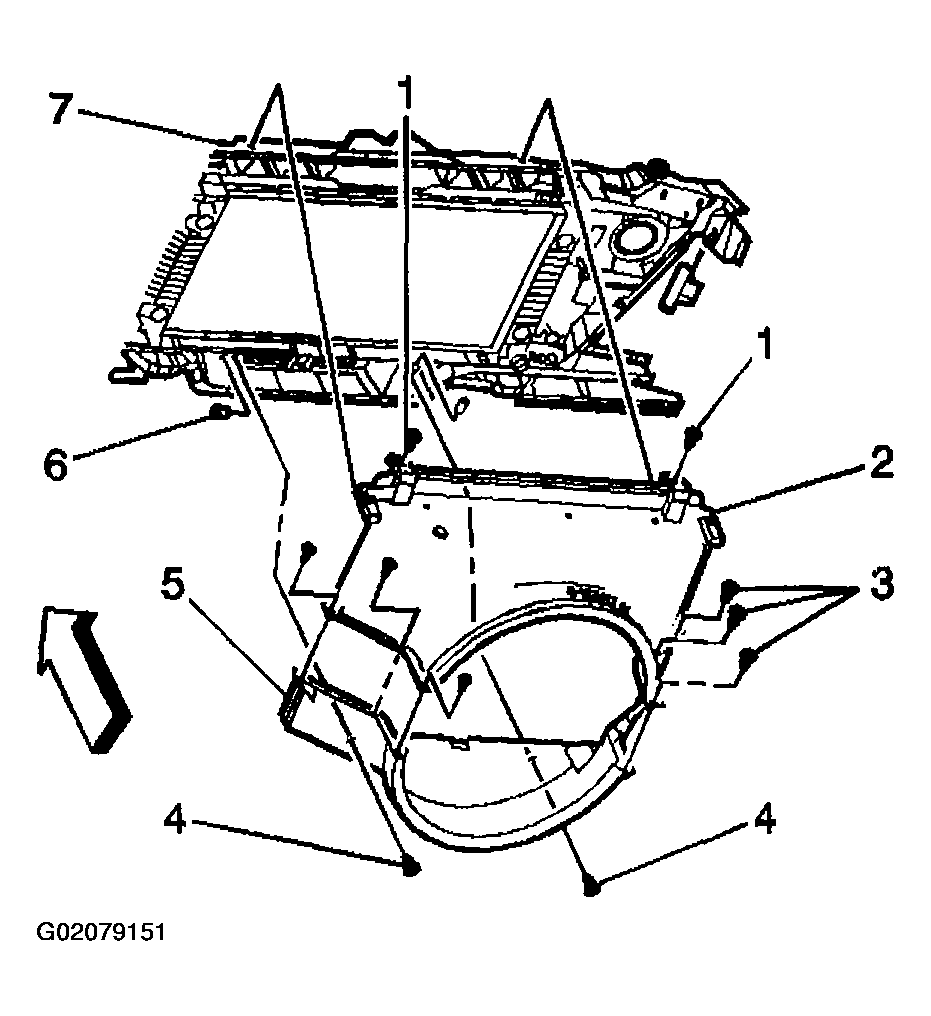

- Install the upper fan shroud (2).
- Install the fan shroud bolts (1) to the top of the radiator support.
Tighten
Tighten the bolts to 6 N.m (53 in lbs).
- Install the fan shroud bolts (3) to the sides of the fan shroud.
Tighten
Tighten the bolts to 6 N.m (53 in lbs).
