Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the rear axle independently in order to relieve the tension on the leaf springs.
  3. Remove the leaf spring U-bolt nuts.
  4. Remove the leaf spring U-bolts.
  5. Remove the leaf spring spacer.
  6. Remove the leaf spring anchor plate.

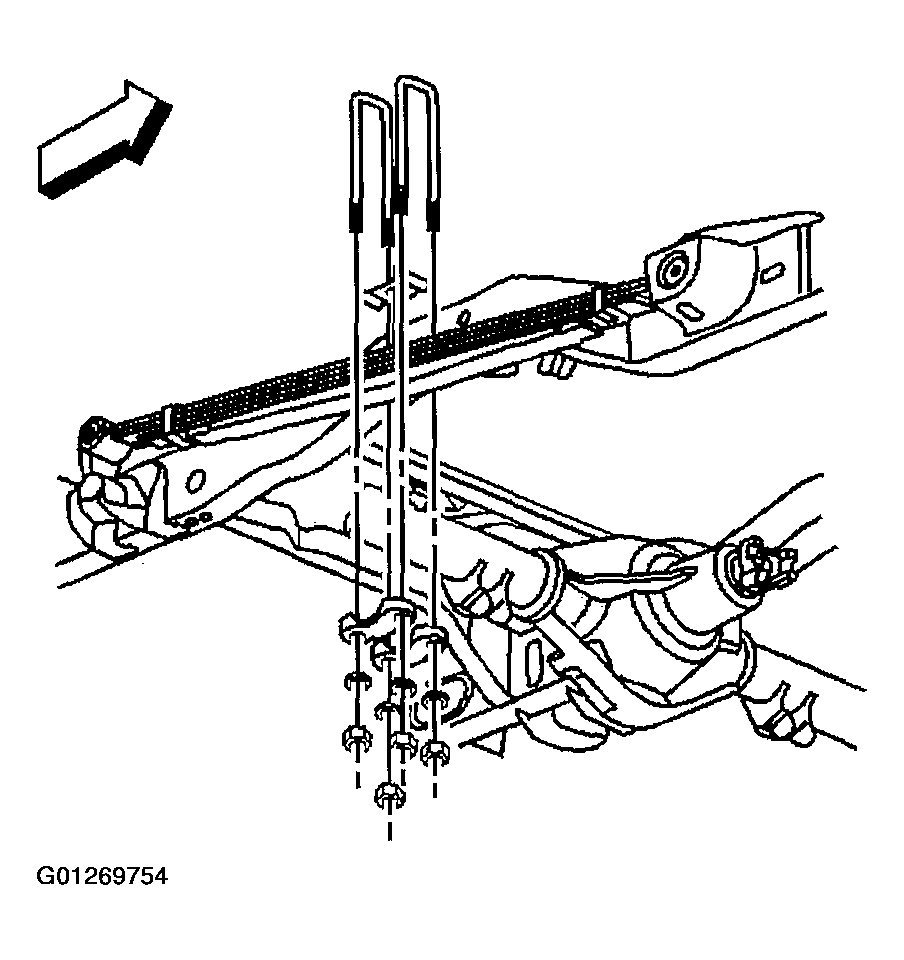

    Fig 1: Removing Leaf Spring U-Bolts & Nuts
    G01269754Courtesy of GENERAL MOTORS CORP.
  7. Remove the leaf spring (1) to the spring shackle (5) mounting bolt and nut (3).

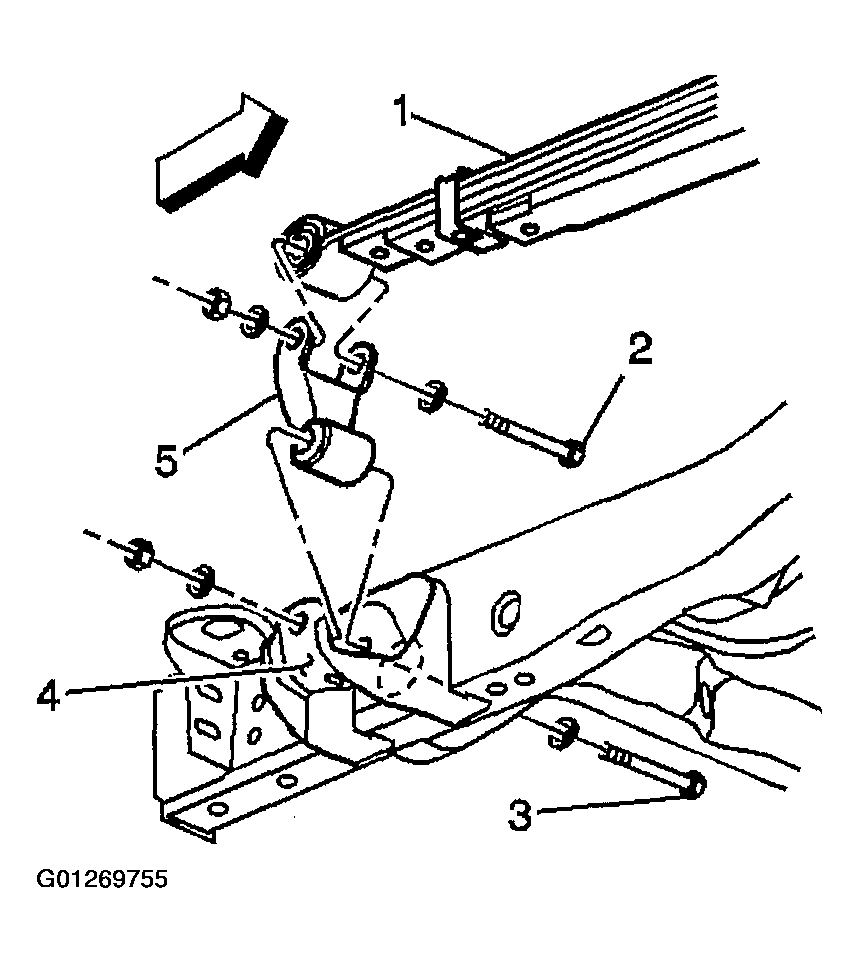

    Fig 2: Removing Leaf Spring To Spring Shackle Mounting Bolt & Nut
    G01269755Courtesy of GENERAL MOTORS CORP.
  8. Remove the leaf spring to the front hanger bracket mounting nut and bolt.
  9. Remove the leaf spring from the vehicle.

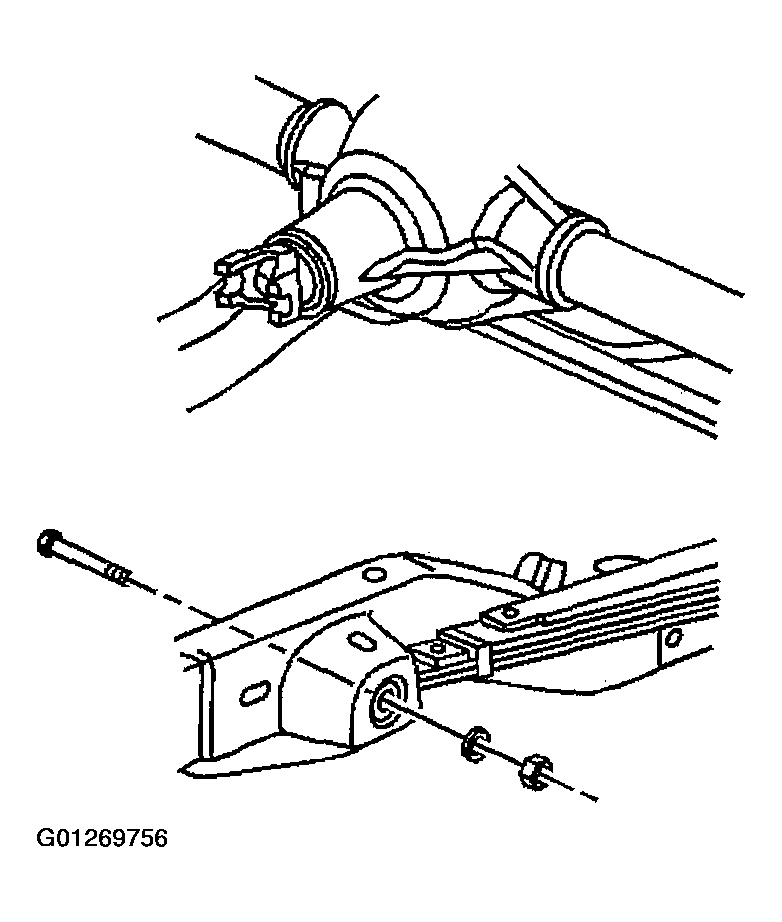

    Fig 3: Removing Leaf Spring To Front Hanger Bracket Mounting Nut & Bolt
    G01269756Courtesy of GENERAL MOTORS CORP.
