Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new stud into the hub flange hole using firm hand pressure.
  2. Install 4 washers to the new wheel stud.
  3. Thread a wheel nut onto the new stud with the flat side facing the front hub flange.
  4. Tighten the lug nut until the stud contacts the back of the hub flange.
  5. Remove the wheel nut.
  6. Remove the washers.
  7. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation inTires and Wheels .
  8. Lower the vehicle.

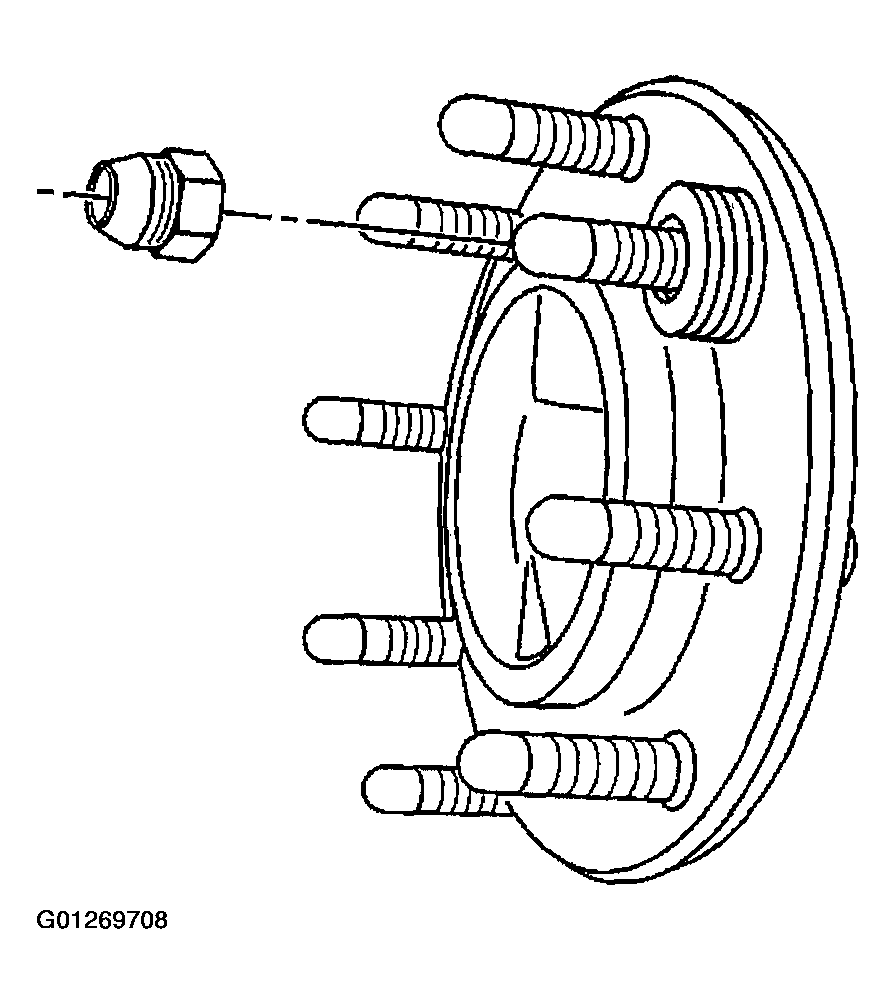

    Fig 1: Threading a wheel nut onto the new stud
    G01269708Courtesy of GENERAL MOTORS CORP.
