Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

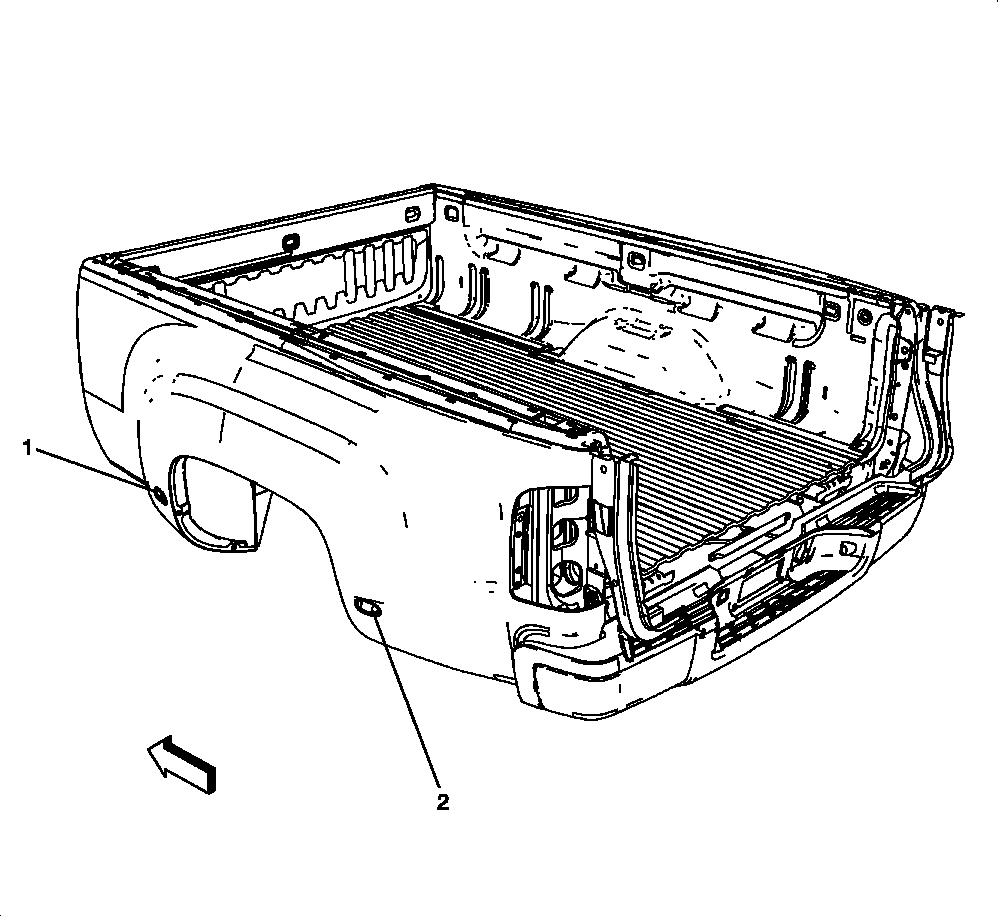

Fig 1: Left Rear of the Vehicle Components (R05)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clearance Lamp - Left Front
2	Clearance Lamp - Left Rear

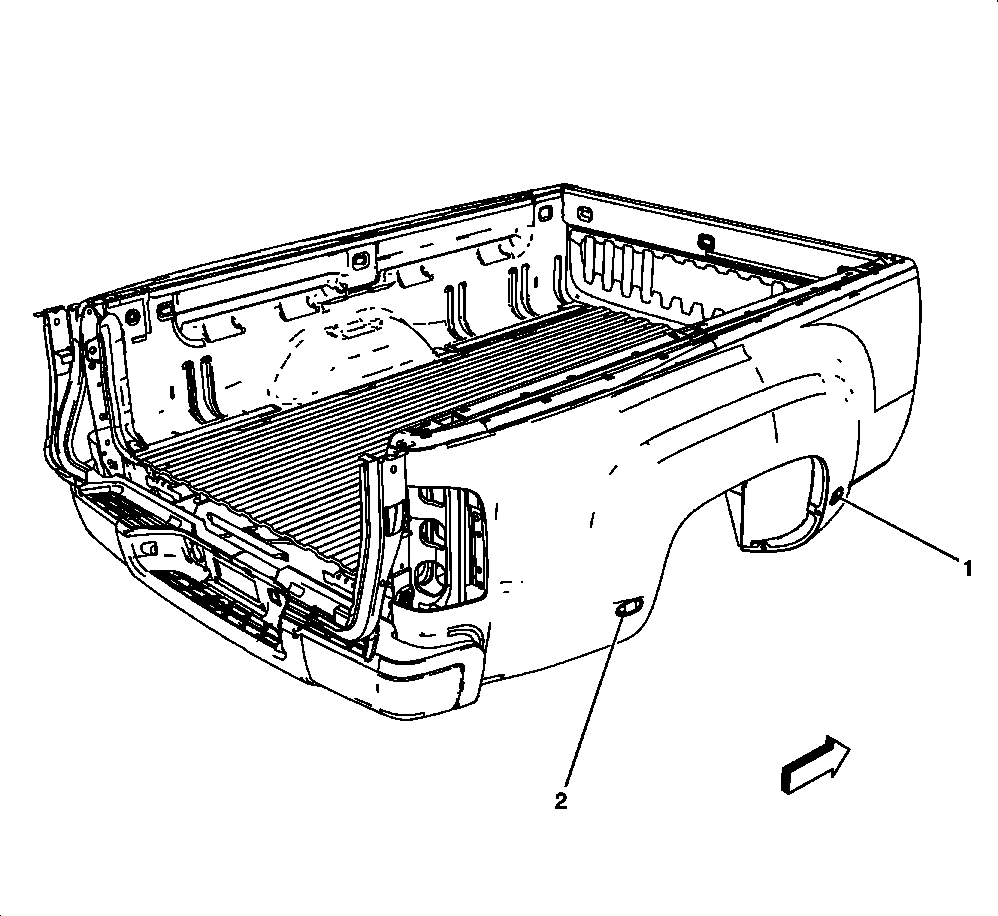

Fig 2: Right Rear of the Vehicle Components (R05)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clearance Lamp - Right Front
2	Clearance Lamp - Right Rear

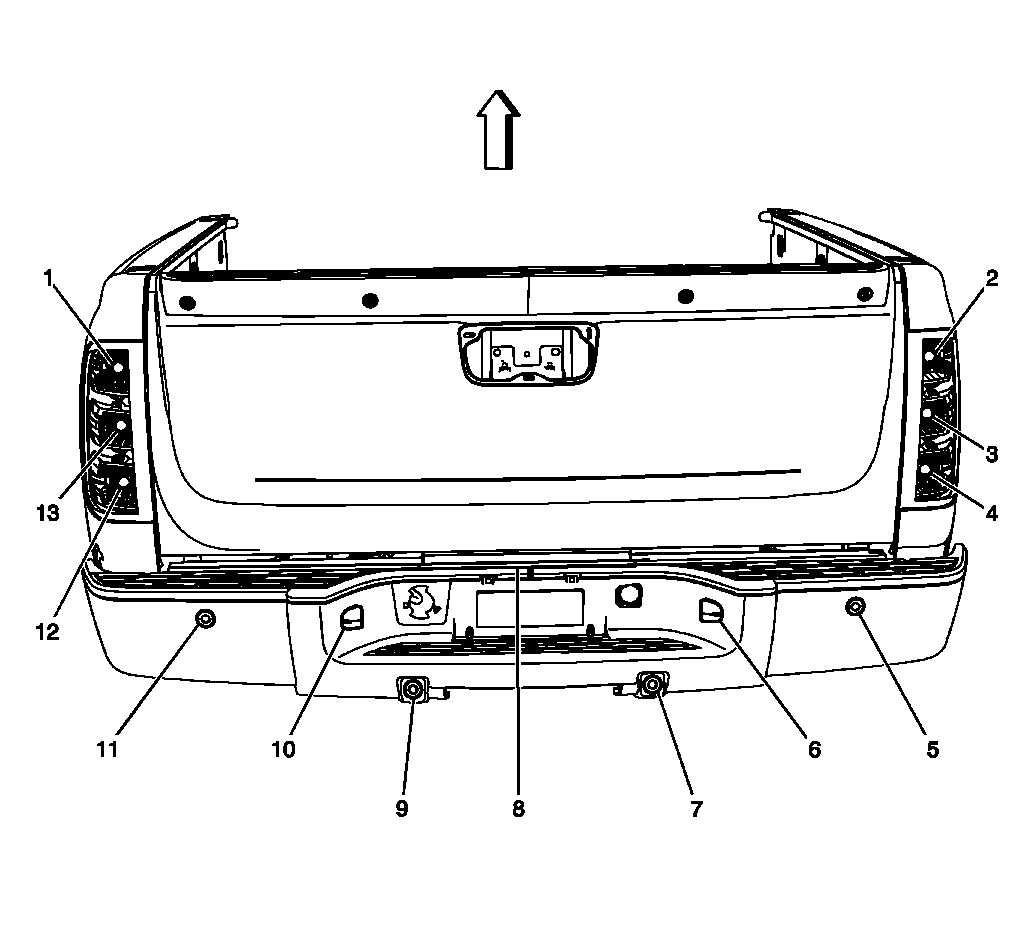

Fig 3: Rear of the Vehicle Components (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Upper Left
2	Tail/Stop and Turn Signal Lamp - Upper Right
3	Backup Lamp - Right Rear
4	Tail/Stop and Turn Signal Lamp - Lower Right
5	Object Sensor - Right Rear Corner (UD7)
6	License Lamp - Right
7	Object Sensor - Right Rear Middle (UD7)
8	Marker Lamp - Tailgate (R05)
9	Object Sensor - Left Rear Middle (UD7)
10	License Lamp - Left
11	Object Sensor - Left Rear Corner (UD7)
12	Tail/Stop and Turn Signal Lamp - Lower Left
13	Backup Lamp - Left Rear

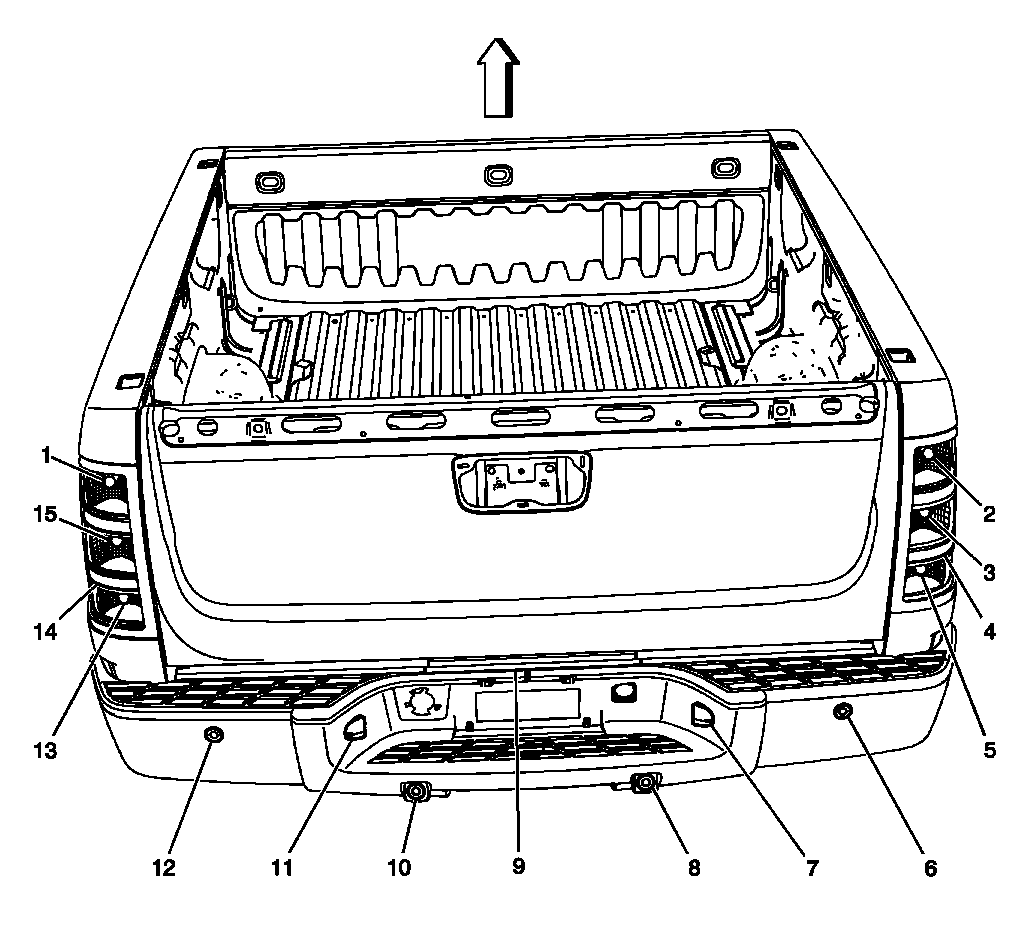

Fig 4: Rear of the Vehicle Components (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Upper Left
2	Tail/Stop and Turn Signal Lamp - Upper Right
3	Tail/Stop and Turn Signal Lamp - Lower Right
4	Marker Lamp - Right Rear
5	Backup Lamp - Right Rear
6	Object Sensor - Right Rear Corner (UD7)
7	License Lamp - Right
8	Object Sensor - Right Rear Middle (UD7)
9	Marker Lamp - Tailgate (R05)
10	Object Sensor - Left Rear Middle (UD7)
11	License Lamp - Left
12	Object Sensor - Left Rear Corner (UD7)
13	Backup Lamp - Left Rear
14	Marker Lamp - Left Rear
15	Tail/Stop and Turn Signal Lamp - Lower Left
