Junction Block - Left I/P X7 (JF4)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

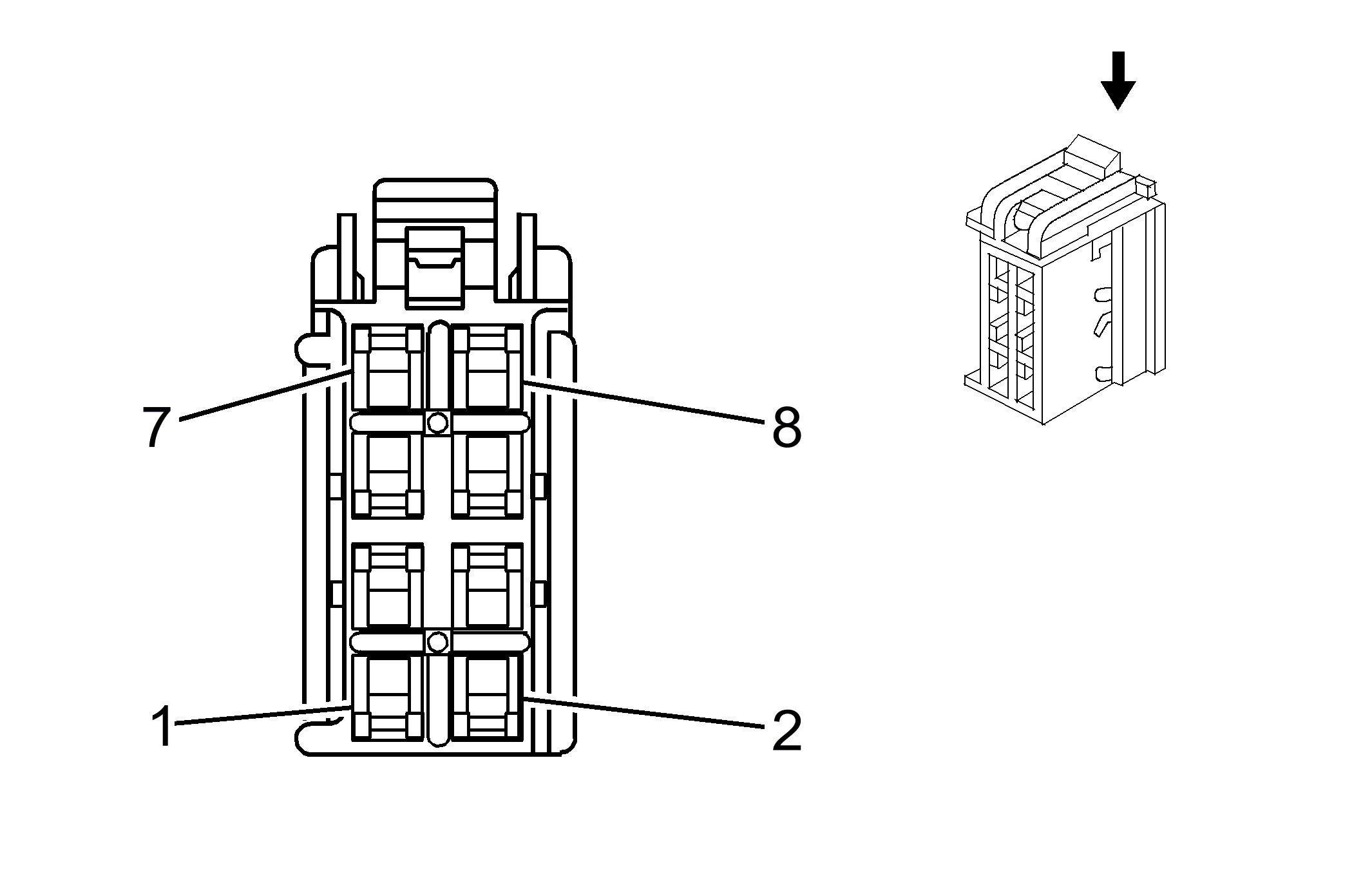

Fig 1: Junction Block - Left I/P X7 (JF4)

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit No.	Function
1	0.5 GY	6206	Low Reference (JF4 +AN3)
2	1 YE	5129	Adjustable Pedals Relay Rearward Control (JF4)
3	0.5 TN	6207	5-Volt Reference (JF4 +AN3)
4	1 PU	5130	Adjustable Pedals Actuator Forward Control (JF4)
5	0.5 PK	5289	Adjustable Pedal Sensor Signal (JF4 +AN3)
6-8	-	-	Not Used

Connector Part Information

OEM: 13516836
Service: 19149294
Description: 8-Way F GT 280 Series (OG)

Terminal Part Information

Pins: 1, 3, 5, 2, 4
Terminal/Tray: 13525970/4
Core/Insulation Crimp: Pins 1, 3, 5 - E/A
Core/Insulation Crimp: Pins 2, 4 - 2/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
