Junction Block - Left I/P X13
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

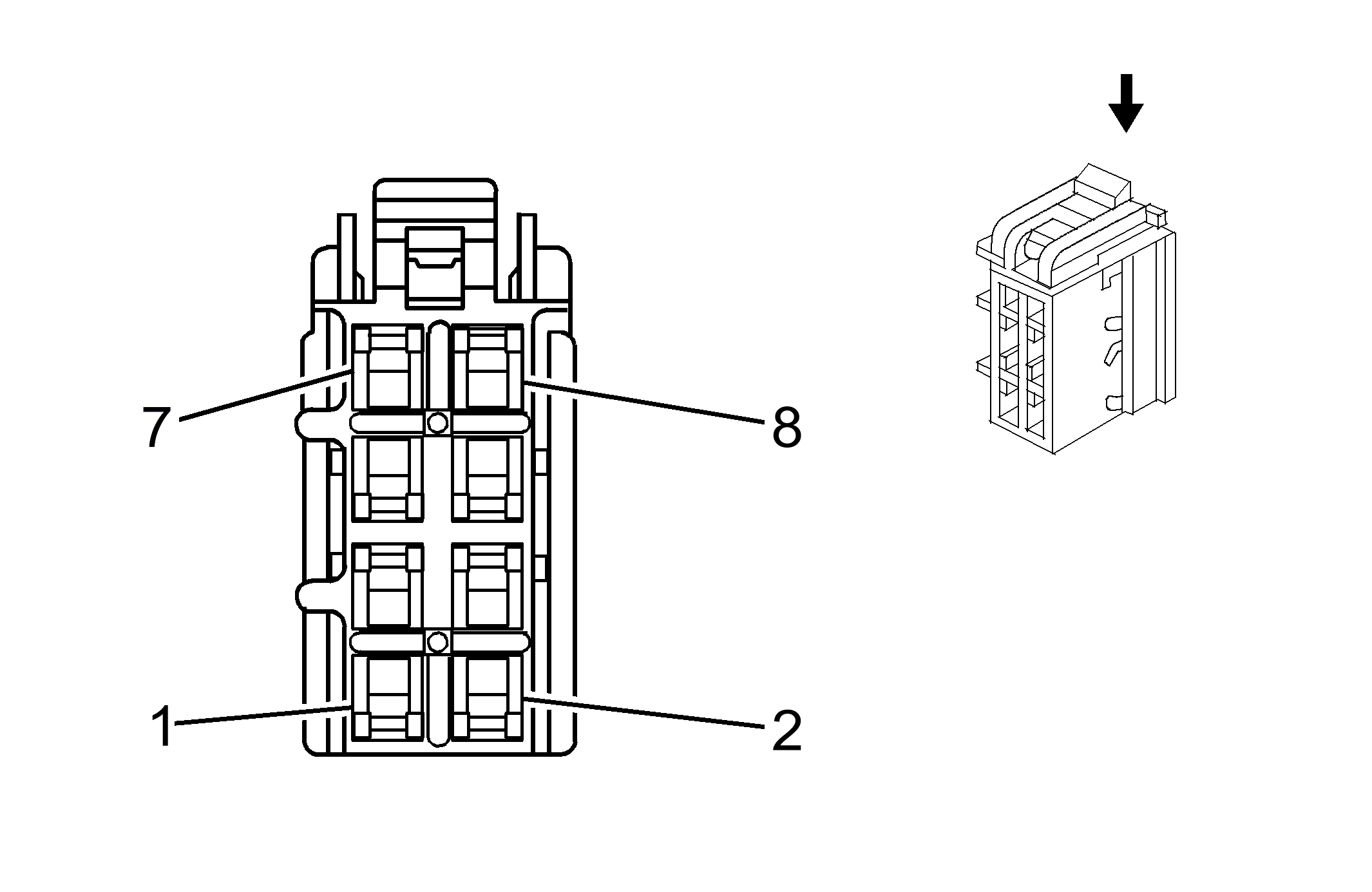

Junction Block - Left I/P X13
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | 1 PU | 5130 | Adjustable Pedals Relay Forward Control (JF4 +AN3) |
| 2 | 1 YE | 5129 | Adjustable Pedals Relay Rearward Control (JF4 +AN3) |
| 3 | 0.35 PU | 5286 | Adjustable Pedals Relay Forward Control (JF4 +AN3) |
| 4 | 0.35 OG/BK | 5285 | Adjustable Pedals Relay Rearward Control (JF4 +AN3) |
| 5 | 0.5 TN | 6207 | Memory Sensor High Reference (JF4 +AN3) |
| 6 | 0.5 PK | 5289 | Adjustable Pedal Sensor Signal (JF4 +AN3) |
| 7 | 0.5 GY | 6206 | Low Reference (JF4 +AN3) |
| 8 | 0.35 YE | 43 | Accessory Voltage (A31 -AN3/DL3) |
| 0.35 YE | 43 | Accessory Voltage (A31 -AN3/DL3) | |
| 0.35 PU/WH | 6205 | 12-Volt Reference (JF4 +AN3) |
Connector Part Information
|
Terminal Part Information
|
